- • Dimension (mm) : 155(L) x 138.5(W) x 52.5(H)
- • Weight : 0.66kg (1.46lb)
| Material | Aluminum |
| Color | White |
| Dimensions | 155(L) x 138.5(W) x 52.5(H) (6.10"(W) x 5.45"(D) x 2.07"(H)) |
| Weight | 0.66kg (1.46lb) |
| Relevant Mount | DA-LM2000, DA-RM2000 |
| Relevant Model | DC-T3233HRXL, DC-T6233HRXL, DC-T3533HRX DC-T4236WRX, DC-T4236HRX, DC-T4536HRX, DC-T4537HRXA, DC-T4831HRX DC-E4216WRX, DC-T4217WRX DC-T4516WRX, DC-T4517WRX, DC-T4517WRXP, DC-T4811WRX TC-T5511WRX, TC-T5531WRX, TC-T5531WRXP, TC-T5532WRX |
Name
Description
Size
Downloads
File
DA-JB2400_Datasheet.pdf
0.4mb

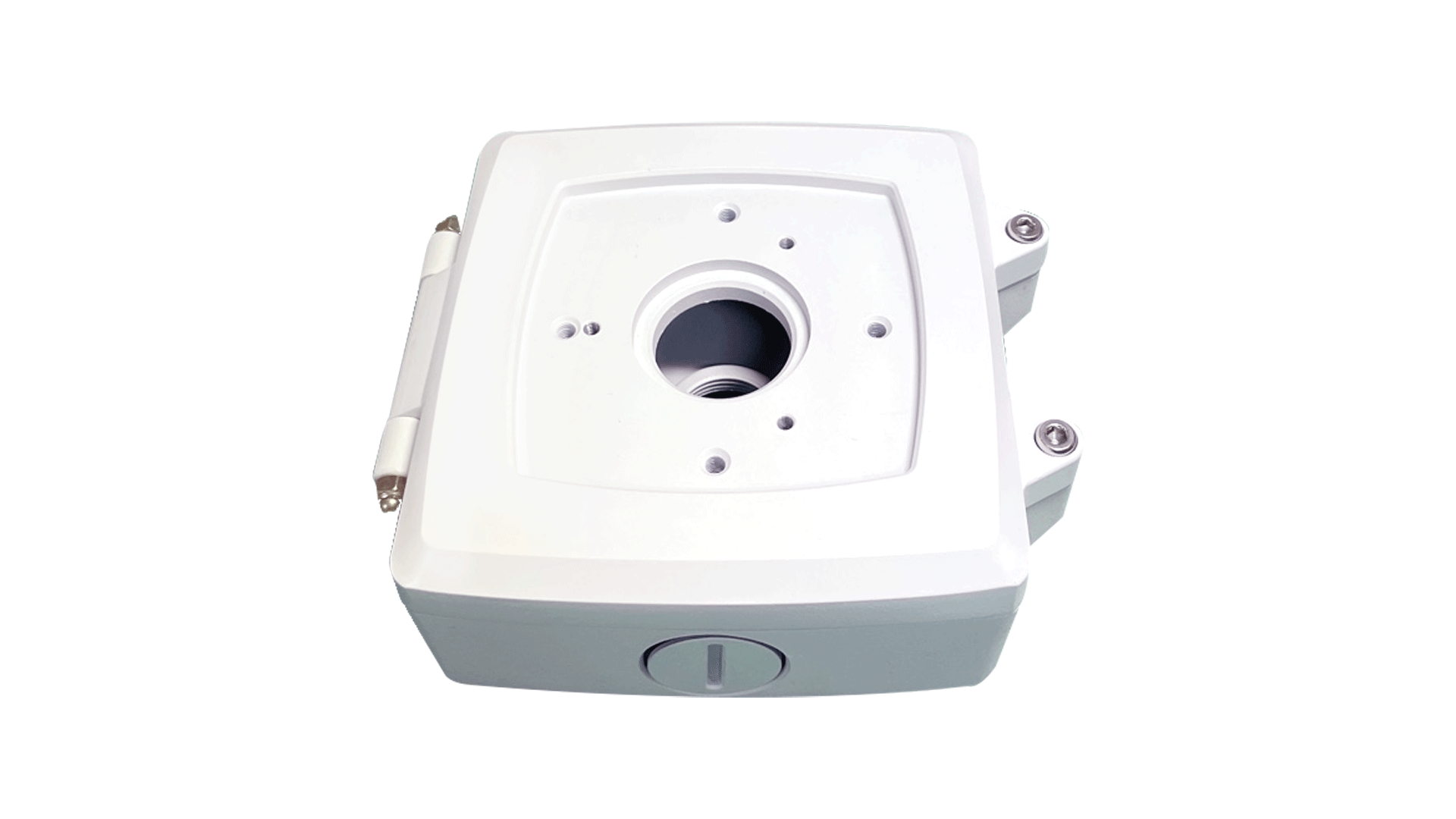

The DA-JB2400 is a robust, rectangular junction box designed to house and protect the external connections for a wide range of IDIS bullet, PTZ, and turret camera models. Its primary function is to provide a sealed, durable enclosure for managing the camera's power and network cables, protecting them from environmental exposure. The box is constructed from aluminum, offering high durability and corrosion resistance for demanding outdoor use, with a weight of 0.66kg. It is finished in white. Its dimensions are 155mm (L) x 138.5mm (W) x 52.5mm (H).
accessories
