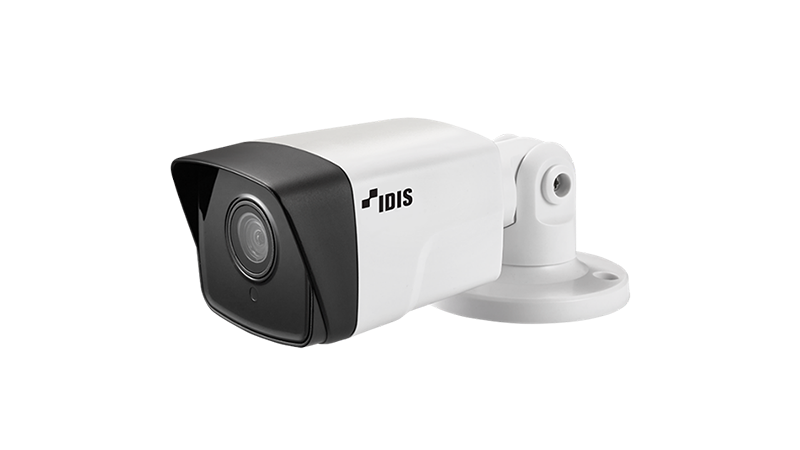

DC-T4217WRX4.0mm - Full HD IR Bullet Camera - IDIS
Part number:
Price:
- • Full HD (1080p) resolution
- • Fixed-focal lens (f=4.0mm)
- • IR LED (Distance : 20m / 65.6 ft)
- • IK10 / IP66 supports
- • PoE (IEEE 802.3af Class 2)
- • Day and night (ICR)
- • True wide dynamic range (WDR)
- • 3-axis mechanical design for installation
- • Easy installation with DirectIP NVR
| Video | |
|---|---|
| Image Sensor | 1/2.8" CMOS |
| Max. Resolution | 1920 x 1080 |
| Scanning Mode | Progressive Scan |
| Lens Type | Fixed-focal |
| Focal Length | f=4.0mm |
| Aperture | F 1.6 (4.0mm) |
| Iris Control | Fixed Iris |
| Angular Field of View | 87.4°(H), 46.9°(V), 103.5°(D) (f=4.0mm) |
| Min. Illumination | COLOR : 0.07 lux @ F1.6 B/W : 0 lux (IR LED ON), (4.0mm) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | IR cut filter with auto switch |
| IR Distance (LEDs) | 20 m / 65.6 ft (2 ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | On / Off |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | - |
| De-fog | - |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | - |
| Network | |
| Video Compression | H.265, H.264 (MP) M-JPEG, |
| Intelligent Codec | Supported |
| Bitrate Control | H.265 - CBR / VBR, H.264 - CBR / VBR |
| Audio Compression | - |
| Two-way Audio | - |
| IP Camera Protocol | DirectIP 2.0 |
| Max. Frame Rate | 30ips : 1920 x 1080 |
| Supported Resolution | 1920x1080, 1280x720, 640x360, 352x240 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | SSL Encryption, Multi-user Authority, IEEE 802.1x, IP Filtering, HTTPS |
| Remote Access Client | DirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio In/ Out | - |
| Alarm In / Out | - |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP66 |
| Operating Temperature | -20°C ~ +55°C (-4°F ~ +131°F), Starting up at above 0°C (32°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | PoE IEEE 802.3af (Class 2) |
| Power Consumption | PoE, IEEE 802.3af(Class 2), 5.4W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions (W x H) | 70.1mm x 65mm X 182.7mm (2.75" x 2.56" x 7.2") |
| Weight | 0.340Kg(0.75 lb) |
Name
Description
Size
Downloads
File
DC-T4217WRX_4.0mm_Datasheet.pdf
1.4mb
The DC-T4217WRX4.0mm is a Full HD IR bullet camera with a 1/2.8" CMOS sensor providing 1920x1080 resolution. It features a fixed-focal 4.0mm lens with an F1.6 aperture, offering an 87.4-degree horizontal field of view. It includes IR LEDs for illumination up to 20 meters, supporting operation down to 0 lux in B/W mode. The camera uses H.265, H.264, and M-JPEG compression with quadruple streaming at up to 30 fps. The imaging features include 120dB True WDR, configurable exposure and white balance, and video motion detection. The housing is rated IP66 for ingress protection and IK10 for vandal resistance. It operates in temperatures from -20°C to +55°C, starting up above 0°C, and is powered solely by PoE 802.3af with a consumption of 5.4W.
