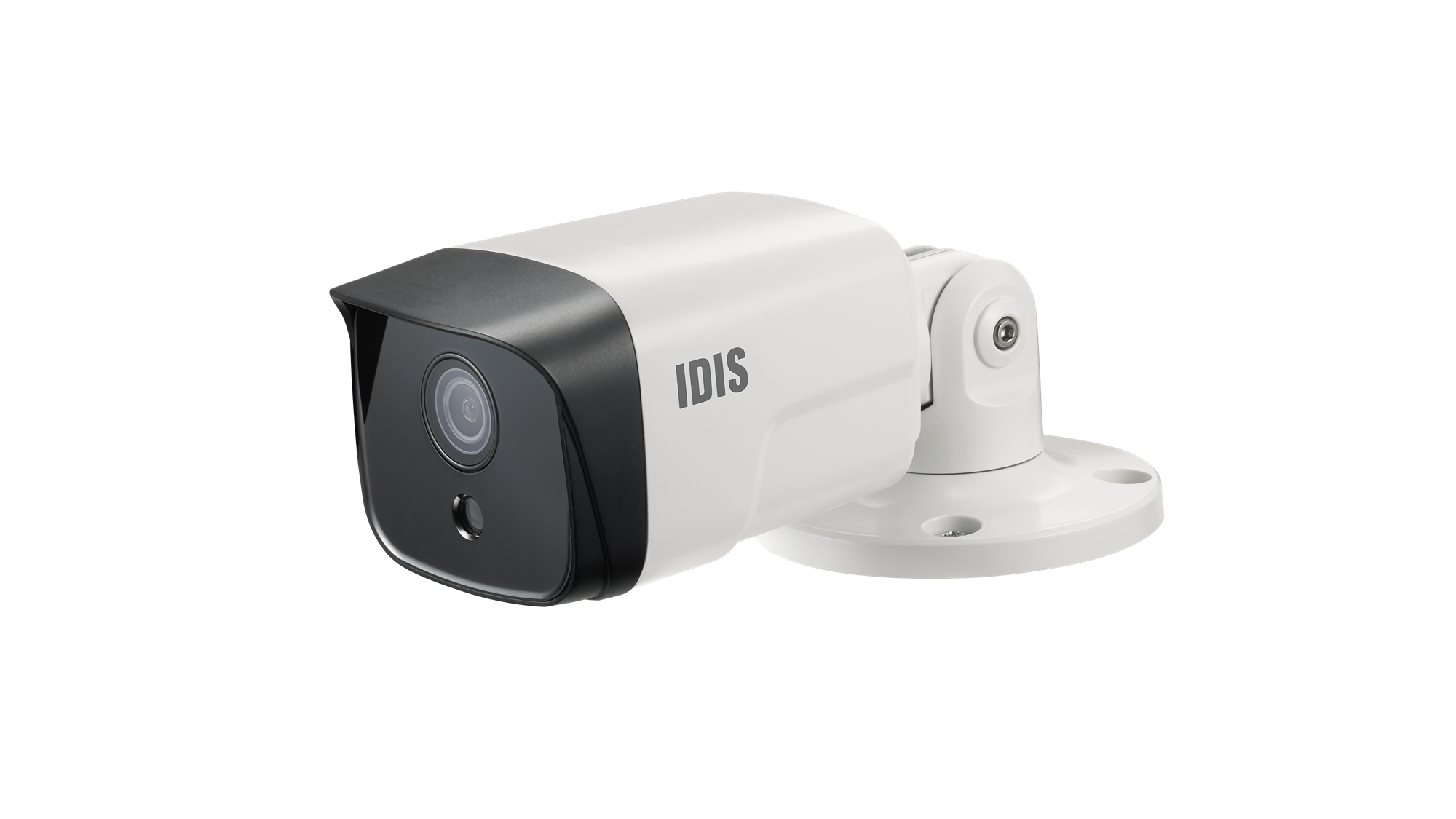

DC-T4516WRX2.8mm - 5MP IR Bullet Camera - IDIS
Part number:
Price:
- • Easy installation with DirectIP NVR
- • 5MP (2592x1944) resolution
- • Fixed-focal lens (f=2.8mm)
- • Micro SD/SDHC/SDXC
- • Two-way audio
- • Alarm in / out
- • IK10 / IP67 supports
- • PoE (IEEE 802.3af Class 3)
- • Day and night (ICR)
- • True wide dynamic range (WDR)
- • IR LED (Distance : 30m / 98.4ft)
- • 3-axis mechanical design for installation
| Video | |
|---|---|
| Image Sensor | 1/2.8 |
| Max. Resolution | 2592 x 1944 |
| Scanning Mode | Progressive Scan |
| Lens Type | Fixed-focal |
| Focal Length | f=2.8mm |
| Aperture | F2.0 |
| Iris Control | Fixed Iris |
| Angular Field of View | 104.8°(H) 76.9°(V) 130°(D) |
| Min. Illumination | COLOR : 0.15 lux @ F2.0 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB(True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | IR cut filter with auto switch |
| IR Distance (LEDs) | 30m / 98.4 ft (4ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | On / Off |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | - |
| De-fog | - |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | - |
| Network | |
| Video Compression | H.265, H.264 (MP) M-JPEG |
| Intelligent Codec | Supported |
| Bitrate Control | H.265 - CBR / VBR, H.264 - CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0 |
| Max. Frame Rate | 4:3 mode : 30ips : 2592 x 1944(WDR) 16:9 mode : 30ips : 2592 x 1456(WDR) |
| Supported Resolution | 4:3 : 2592x1944, 1920x1440, 1280x960x 640x480 16:9 : 2592x1456, 1920x1080, 1280x720, 640x360 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, Upnp, SNMPv2 |
| Security | SSL Encryption, Multi-user Authority, IEEE 802.1x, IP Filtering, HTTPS, SSL Encryption |
| Remote Access Client | DirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio In/ Out | 1 / 1 |
| Alarm In / Out | 1 / 1 |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67 |
| Operating Temperature | -30°C ~ 55°C (-22°F ~ 131°F), Starting up at above 0°C (32°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | PoE (IEEE 802.3af Class 3) |
| Power Consumption | PoE, (IEEE 802.3af Class 3), 7.9W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions (W x H) | 75mm x 70mm x 195.8mm (2.95" x 2.75" x 7.71") |
| Weight | 0.66 kg(1.46lb) |
Name
Description
Size
Downloads
File
DC-T4516WRX-A_AnE_Spec_v1.0.docx
0.1mb
The DC-T4516WRX2.8mm is a 5MP bullet camera with a 1/2.8" sensor providing 2592x1944 resolution. It uses a fixed-focal 2.8mm lens with an F2.0 aperture, offering a 104.8-degree horizontal field of view. IR LEDs provide illumination up to 30 meters. The camera uses H.265, H.264, and MJPEG compression with up to 30 fps streaming. It provides 120dB True WDR and configurable image settings. The housing is rated IP67 and IK10. It operates from -30°C to +55°C, starting above 0°C, and is powered by PoE 802.3af with a consumption of 7.9W.
