DC-T4517WRXP-2.8mm - 5MP PoE Extender Bullet Camera - IDIS
Part number:
Price:
- • 5MP (2592x1944) resolution
- • IR LED (Distance : 20 m / 65.6 ft)
- • Fixed-focal lens
- • PoE, IEEE 802.3at(Class 4), Built-in PoE Extender
- • Day and night (ICR)
- • True wide dynamic range (WDR)
- • Easy installation with DirectIP NVR
- • H.265 and Intelligent Codec
- • Supports ONVIF
| Video | |
|---|---|
| Image Sensor | 1/2.8" CMOS |
| Max. Resolution | 2592 x 1944 |
| Scanning Mode | Progressive Scan |
| Lens Type | Fixed-focal |
| Focal Length | 2.8mm |
| Aperture | F1.6 |
| Iris Control | Fixed Iris |
| Angular Field of View | 4:3 mode : 80º(H) 56.7º(V) 106.9º(D) 16:9 mode : 80º(H) 41.1º(V) 95.4º(D) |
| Min. Illumination | COLOR : 0.15 lux @ F1.6 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 20 m / 65.6 ft (2 ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | BLC |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | - |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | - |
| Network | |
| Video Compression | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Intelligent Codec | Yes |
| Bitrate Control | H.265 - CBR / VBR, H.264 - CBR / VBR |
| Audio Compression | - |
| Two-way Audio | - |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S/T |
| Max. Frame Rate | 4:3 mode : 30ips : 2592 x 1944(WDR) 16:9 mode : 30ips : 2592 x 1456(WDR) |
| Supported Resolution | 4:3 : 2592x1944, 1920x1440, 1280x960x 640x480 16:9 : 2592x1456, 1920x1080, 1280x720, 640x360 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP,RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, Upnp, SNMPv2 |
| Security | Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | - |
| Alarm and Event | |
| Trigger Event | Motion Detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | - |
| Audio In / Out | - |
| Alarm In / Out | - |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP66 |
| Operating Temperature | -20°C ~ +55°C (-4°F ~ +131°F) *Starting up at above 0°C (32°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | PoE IEEE 802.3af (Class 3) |
| Power Consumption | PoE, IEEE 802.3af (Class 3), 6.5W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions | 70mm X 65mm X 197.5mm (2.76" X 2.56" X 7.78") |
| Weight | 0.4kg (0.88lb) |
Name
Description
Size
Downloads
File
DC-T4517WRXP_2.8mm_Datasheet.pdf
1.9mb

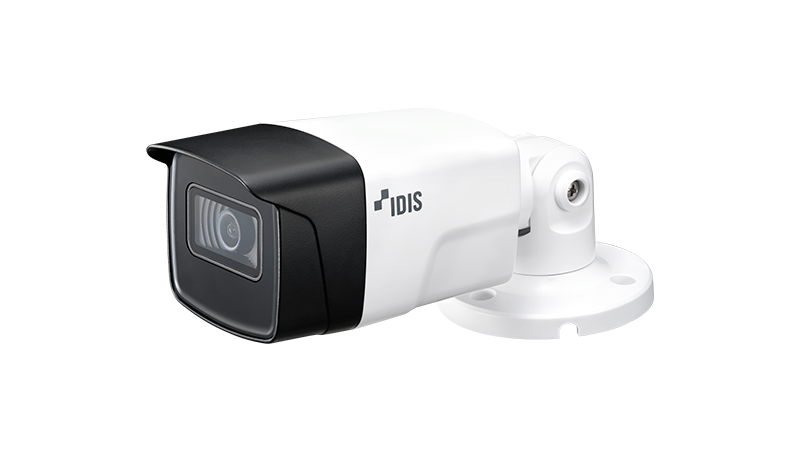

The DC-T4517WRXP-2.8mm is a 5MP bullet camera with a 1/2.8" CMOS sensor and a fixed 2.8mm lens, offering an 80-degree horizontal field of view. It provides infrared illumination up to 20 meters. The camera uses H.265, H.264, and M-JPEG video compression with up to 30 fps streaming. A key feature is a built-in PoE extender, providing a second RJ45 port to pass power and data to another device. The camera includes 120dB True WDR and defog capability. The housing is rated IP66 and IK10. It operates from -20°C to +55°C and is powered via PoE 802.3af, consuming 6.5W.
