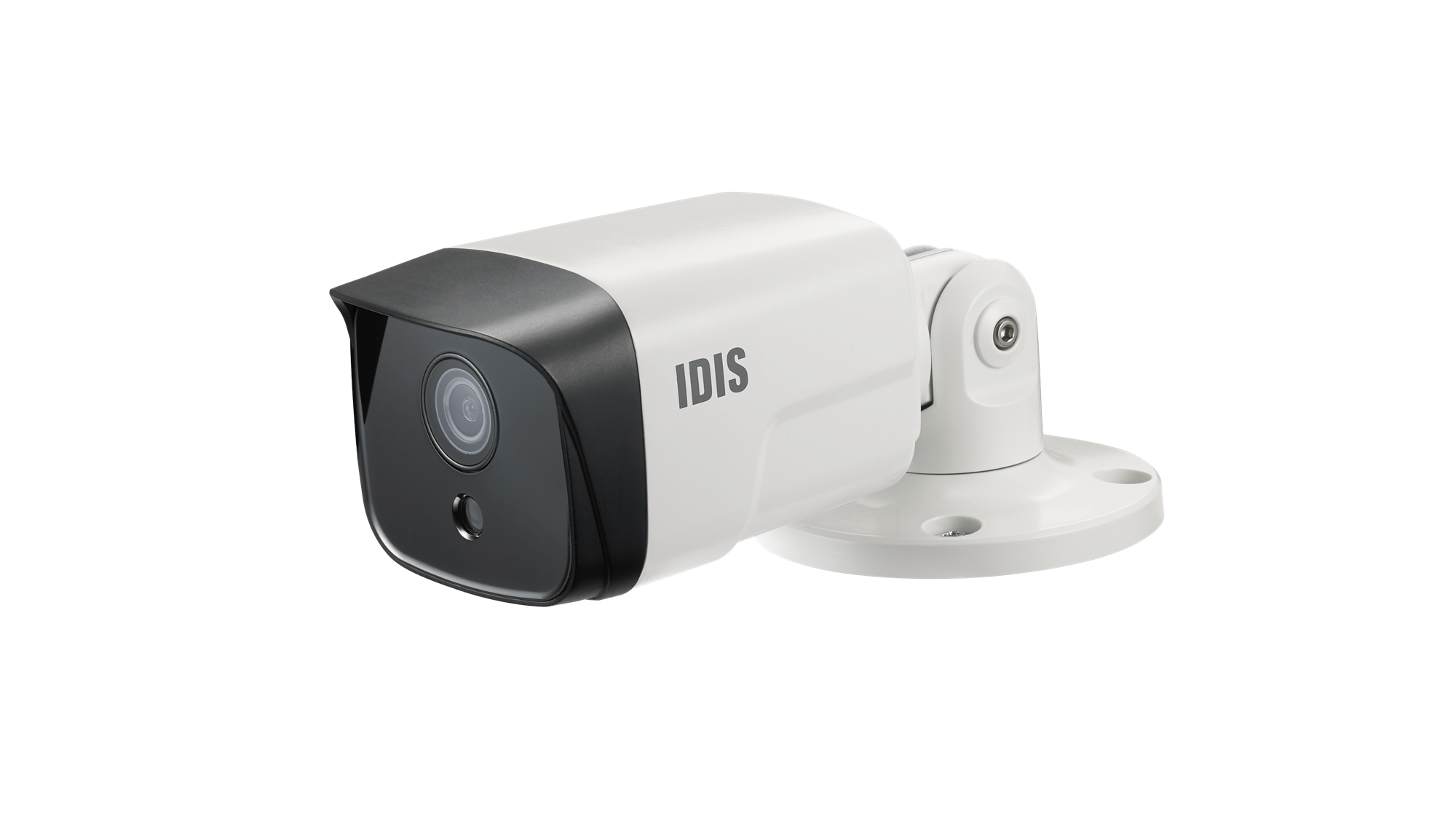

DC-T4516WRX6.0mm - 5MP IR Bullet Camera - IDIS
- • Easy installation with DirectIP NVR
- • 5MP (2592x1944) resolution
- • Fixed-focal lens (f=6.0mm)
- • Micro SD/SDHC/SDXC
- • Two-way audio
- • Alarm in / out
- • IK10 / IP67 supports
- • PoE (IEEE 802.3af Class 3)
- • Day and night (ICR)
- • True wide dynamic range (WDR)
- • IR LED (Distance : 30m / 98.4ft)
- • 3-axis mechanical design for installation
| Video | |
|---|---|
| Image Sensor | 1/2.8 |
| Max. Resolution | 2592 x 1944 |
| Scanning Mode | Progressive Scan |
| Lens Type | Fixed-focal |
| Focal Length | 6.0mm |
| Aperture | F1.6 |
| Iris Control | Fixed Iris |
| Angular Field of View | 49.9°(H) 37°(V) 63.6°(D) |
| Min. Illumination | COLOR : 0.15 lux @ F1.6 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB(True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | IR cut filter with auto switch |
| IR Distance (LEDs) | 30m / 98.4 ft (4ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | On / Off |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | - |
| De-fog | - |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | - |
| Network | |
| Video Compression | H.265, H.264 (MP) M-JPEG |
| Intelligent Codec | Supported |
| Bitrate Control | H.265 - CBR / VBR, H.264 - CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0 |
| Max. Frame Rate | 4:3 mode : 30ips : 2592 x 1944(WDR) 16:9 mode : 30ips : 2592 x 1456(WDR) |
| Supported Resolution | 4:3 : 2592x1944, 1920x1440, 1280x960x 640x480 16:9 : 2592x1456, 1920x1080, 1280x720, 640x360 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, Upnp, SNMPv2 |
| Security | SSL Encryption, Multi-user Authority, IEEE 802.1x, IP Filtering, HTTPS |
| Remote Access Client | DirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 256GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio In/ Out | 1 / 1 |
| Alarm In / Out | 1 / 1 |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67 |
| Operating Temperature | -30°C ~ 55°C (-22°F ~ 131°F), Starting up at above 0°C (32°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | PoE (IEEE 802.3af Class 3) |
| Power Consumption | PoE, (IEEE 802.3af Class 3), 7.9W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions (W x H) | 75mm x 70mm x 195.8mm (2.95" x 2.75" x 7.71") |
| Weight | 0.66 kg(1.46lb) |
The DC-T4516WRX6.0mm is a 5MP network bullet camera designed for outdoor surveillance. It utilizes a 1/2.8" CMOS sensor to achieve a maximum resolution of 2592x1944 pixels. The camera is equipped with a fixed focal length lens at 6.0mm with an F1.6 aperture, delivering a horizontal field of view of 49.9 degrees. For operation in darkness, it features built-in infrared LEDs with an effective illumination range of 30 meters, enabling color imaging down to 0.15 lux and full black-and-white imaging at 0 lux with IR activated. Video output is supported via H.265, H.264, and M-JPEG compression formats, providing a maximum frame rate of 30 frames per second in both 4:3 and 16:9 aspect ratios, along with quadruple video streaming capabilities.
The imaging features include 120dB True Wide Dynamic Range for handling high-contrast scenes and configurable settings for exposure, white balance, and image quality. The camera supports basic intelligent video functions such as motion detection and tampering alarms. It is built with a durable enclosure that meets both IP67 weatherproof and IK10 vandal-resistant ratings. The operating temperature range is -30°C to +55°C, though it requires a minimum of 0°C to power on. Power is supplied solely via Power over Ethernet, compliant with the IEEE 802.3af standard, with a maximum power consumption of 7.9 watts.
