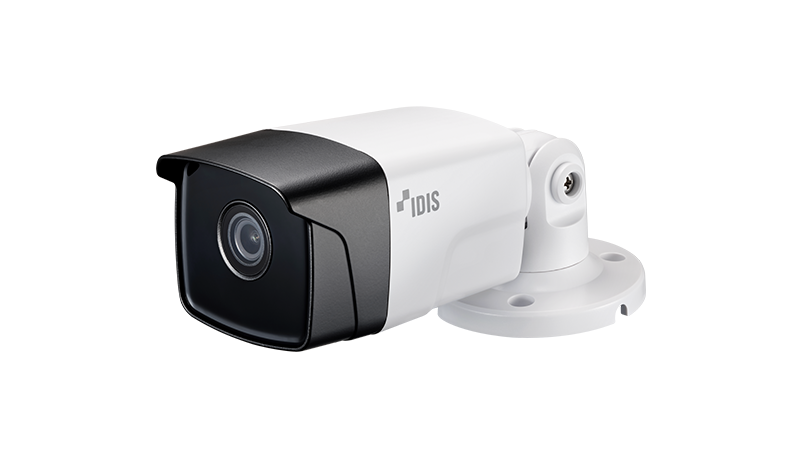

DC-T4517WRXP4.3mm - 5MP PoE Extender Bullet Camera - IDIS
Part number:
Price:
- • 5MP (2592x1944) resolution
- • IR LED (Distance : 20 m / 65.6 ft)
- • Fixed-focal lens
- • PoE, IEEE 802.3at(Class 4)
- • Day and night (ICR)
- • True wide dynamic range (WDR)
- • Easy installation with DirectIP NVR
- • H.265 and Intelligent Codec
- • Built-in PoE Extender
| Video | |
|---|---|
| Image Sensor | 1/2.8 |
| Max. Resolution | 2592 x 1944 |
| Lens Type | Fixed-focal |
| Focal Length | 4.3mm |
| Aperture | F1.6 |
| Iris Control | Fixed Iris |
| Angular Field of View | 80º(H) 56.7º(V) 106.9º(D) |
| Min. Illumination | COLOR : 0.15 lux @ F1.6, B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 20 m / 65.6 ft (2 ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Image Stabilizer | - |
| De-fog | Yes |
| Video Out | - |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Audio Compression | - |
| Max. Frame Rate | 4:3 mode : 30ips : 2592 x 1944(WDR), 16:9 mode : 30ips : 2592 x 1456(WDR) |
| Ethernet | 1 RJ45 (10/100BASE-T), 1 Additional RJ45 (10/100BASE-T) for PoE Extender |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | - |
| Alarm and Event | |
| Trigger Event | Motion Detection, Tampering, Trip Zone |
| Audio In / Out | - |
| Alarm In / Out | - |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP66 |
| Operating Temperature | -20°C ~ 55°C (-4°F ~ 131°F), Starting up at above 0°C (32°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | PoE, IEEE 802.3at(Class 4) |
| Power Consumption | PoE, IEEE 802.3at(Class 4), 25.5W, (DC OUT : 42.5-57V=, 0.3A MAX) |
Name
Description
Size
Downloads
File
DC-T4517WRXP_4.3mm_Datasheet.pdf
1.4mb
The DC-T4517WRXP4.3mm is a 5MP bullet camera with a 1/2.8" sensor and a fixed 4.3mm lens, offering an 80-degree horizontal field of view. It provides infrared illumination up to 20 meters. The camera uses H.265, H.264, and M-JPEG video compression with up to 30 fps streaming. A key feature is a built-in PoE extender, providing a second RJ45 port to pass power and data to another device. The camera includes 120dB True WDR and defog capability. The housing is rated IP66 and IK10. It operates from -20°C to +55°C and is powered via PoE 802.3at, consuming up to 25.5W to support its PoE passthrough function.
