- • Dimension: 155mm (W) x 33mm(H)
- • Weight: 0.35kg(0.78 lb)
| Mechanical | |
|---|---|
| Material | Aluminum |
| Color | White |
| Dimensions | 155 (W) x 33.3(L) (Ø6.11" x 1.31"(L)) |
| Weight | 0.35kg (0.78lb) |
| Relevant Mount | - |
| Relevant Model | DC-D3233X, DC-D3233RX, DC-D3233WRX, DC-D3533RX DC-D4223WRX, DC-D4233WRX, DC-D4233HRX, DC-D4236WRX, DC-D4246WX, DC-D4236HRX, DC-D4536HRX, DC-D4537HRXA, DC-D4831HRX DC-Y3C14WRX, DC-Y8C13RX, DC-Y8C13WRX DC-S6261X TC-D5531WRX, TC-D5531WRXP, TC-D5532WRX |
Name
Description
Size
Downloads
File
DA-JB2200_Datasheet.pdf
0.4mb

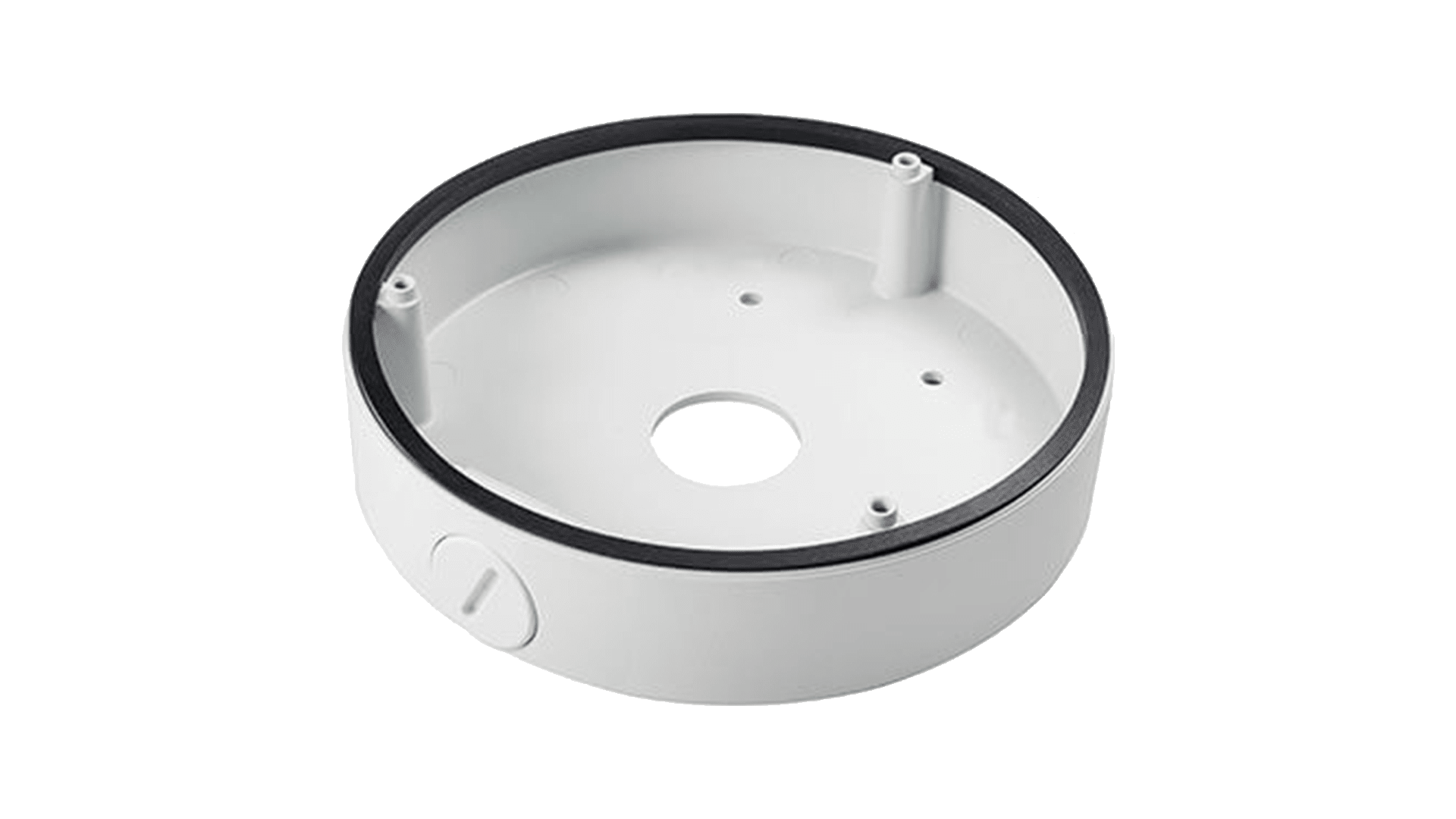

The DA-JB2200 is a cylindrical junction box designed to house and protect the external connections for a wide range of IDIS dome, turret, and PTZ camera models. Its primary function is to provide a sealed, durable enclosure for managing the camera's power and network cables, protecting them from environmental exposure. The box is constructed from aluminum, offering durability and corrosion resistance for outdoor use, with a weight of 0.35kg. It is finished in white. Its cylindrical dimensions are 155mm in diameter and 33.3mm in length (depth).
