DC-D6631WRA - 6M AI IR Dome Camera Edge AI Plus - IDIS
- • IDIS Edge AI Plus Camera
- • Easy installation with DirectIP NVR
- • H.265 and Intelligent Codec
- • Remote Motorized Focus and Zoom
- • 12V DC, PoE (IEEE 802.3af Class 3)
- • IR LED (Distance: 60m / 196.9ft)
- • IDIS Deep-Learning Analytics (IDLA), IDIS Deep-Learning Analytics Pro (IDLA Pro)
- • Attribute Support(Human, Vehicle, Face), A-cut Support
- • IK10
- • IP67
- • Smart Failover (Up to 512GB)
- • Supports ONVIF
- • True WDR
- • Alarm in / out
| Video | |
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 3328 x 1872 |
| Scanning Mode | Progressive Scan |
| Lens Type | Motorized Vari-focal |
| Focal Length | 4.3 ~ 9.8mm |
| Aperture | F1.6 ~ F2.6 |
| Iris Control | P-Iris |
| Angular Field of View | Wide : 110.4º(H) 57.8º(V) 133.8º(D) Tele : 45.0º(H) 25.2º(V) 51.8(D) |
| Min. Illumination | COLOR : 0.13 lux @ F1.6 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 60m / 196.9ft (6ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | BLC |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | Yes (EIS) |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | A-cut Support Object Metadata: Human, Vehicle, Face Object Attribute: Human[Gender, Age, Bag, Hat, Colors], Vehicle[Car, Truck, Bus, Bike(Bicycle, Motorcycle), ETC, Colors], Face[Gender, Age, Glasses, Hat, Mask] IDLA: Object Detection, Intrusion, Loitering, Line Crossing, Face Detection IDLA Pro: Crowd Detection, Abandoned Object Detection, Removed Object Detection, Fall Detection ETC: Video Motion Detection, Active Tampering Alarm |
| Video Out | 1 CVBS |
| Pan/Tilt/Rotate | |
| Pan Range | -180° ~ 180° |
| Tilt Range | -45° ~ 80° |
| Rotate Range | -143° ~ 203° |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.265 - CBR / VBR, H.264 - CBR / VBR |
| Audio Compression | Opus, ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S/T/M |
| Max. Frame Rate | 30ips : 3328 x 1872(WDR) |
| Supported Resolution | 3328 x 1872, 1920 x 1080, 1280 x 720, 640 x 360 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | FIPS 140-3 Level 3, Digest authentication, Password Protection, Brute force delay protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Object Detection, Intrusion, Loitering, Line Crossing, Face Detection, Crowd detection, Abandoned object detection, Removed object detection, Fall detection |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1 / 1 |
| Alarm In / Out | 1 / 1 |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67, NEMA4X |
| Operating Temperature | -40°C ~ +55°C (-40°F ~ +131°F) *Starting up at above -20°C (-4°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 12VDC, PoE, IEEE 802.3af(Class 3) |
| Power Consumption | 12VDC, 1.1A, 13.2W PoE, IEEE 802.3af(Class3), 57VDC, 12W |
| Approval | UL, FCC, CE, KC |
| Mechanical | |
| Dimensions | Ø160 x 120mm(Ø6.3” x 4.72”) |
| Weight | 1.1kg (2.4lb) |

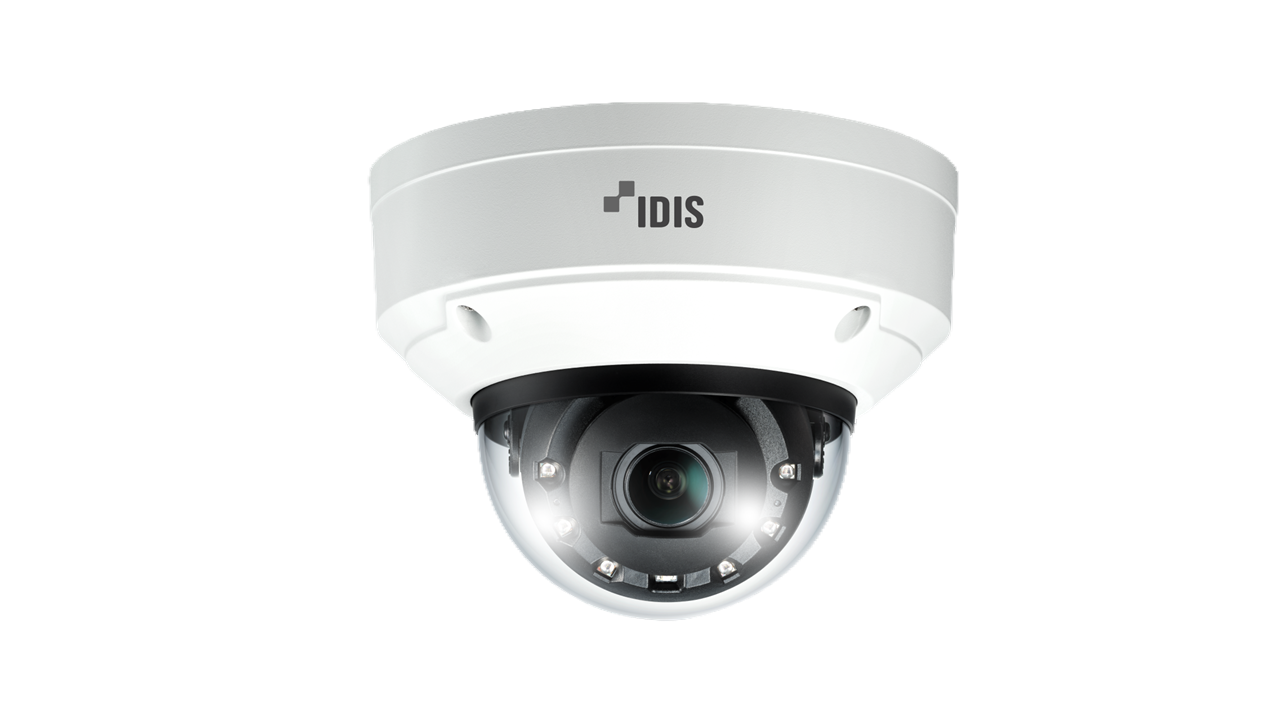

This is a high-end 6MP AI IR dome camera. It features a 1/1.8-inch CMOS sensor with a maximum resolution of 3328 by 1872 pixels. Its motorized vari-focal lens adjusts from 4.3mm to 9.8mm, shifting the horizontal field of view from 110.4° to 45.0°. It employs advanced optics with P-Iris control and includes Image Stabilizer (EIS) and De-fog technologies. For night vision, it incorporates six infrared LEDs effective up to 60 meters.
The imaging includes a high 120 dB True Wide Dynamic Range. Its core feature is the powerful Edge AI Plus analytics suite, enabling metadata extraction for human and vehicle attributes and running advanced IDLA and IDLA Pro analytics directly on the camera. It supports H.265 and Intelligent Codec compression, quadruple video streaming, and extensive security features including FIPS 140-3 compliance. It provides two-way audio, 1 alarm I/O, and 1 audio I/O. The housing is extremely robust with IK10 (vandalism), IP67 (dust/water), and NEMA 4X (corrosion) ratings. It operates within an extreme temperature range of -40°C to 55°C. It can be powered by 12V DC or PoE (IEEE 802.3af), with a maximum consumption of 13.2 watts.
