- • Full HD (1080p) resolution
- • AF optical zoom lens (f=5.3 - 64mm), 12x zoom
- • Two-way audio and Alarm in / out
- • PoE (IEEE 802.3af Class 3), 12V DC
- • Compact Size
- • Easy and Quick Installation
| Video | |
|---|---|
| Image Sensor | 1/2.8" |
| Max. Resolution | 1920 x 1080 |
| Scanning Mode | Progressive Scan |
| Lens Type | AF Zoom Lens |
| Focal Length | 5.3 ~ 64mm |
| Aperture | F1.6 ~ F2.8 |
| Iris Control | DC Iris (Hall Sensor) |
| Angular Field of View | Wide : 58.2º(H), 34º(V), 65.3º(D) Tele : 4.83º(H), 2.8º(V), 5.7º(D) |
| Min. Illumination | COLOR : 0.1 lux @ F1.6 B/W : 0.01 lux @ F1.6 |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | BLC |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | Yes (EIS) |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Pan/Tilt/Rotate | |
| Pan Range | 360° (Endless) |
| Pan Speed | 0.02~240°/sec (preset 420°/sec) |
| Tilt Range | 180° (0~180°) |
| Tilt Speed | 0.02~240°/sec (preset 420°/sec) |
| Preset | 256ea |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.264 - CBR / VBR, H.265 - CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S/T |
| Max. Frame Rate | 30ips : 1920 x 1080(WDR) |
| Supported Resolution | 1920x1080, 1280x720, 640x360, 352x240 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1 / 1 |
| Alarm In / Out | 1 / 1 |
| Environmental | |
| Operating Temperature | -10°C ~ +50°C (+14°F ~ +122°F) *Starting up at above 0°C (32°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 12VDC, PoE IEEE 802.3af (Class 3) |
| Power Consumption | 12VDC, 9.2W / PoE (IEEE 802.3af Class 3), 10W |
| Approval | FCC, CE(50130-4), KC, UL |
| Mechanical | |
| Dimensions | Ø155mm x 158.1mm (Ø6.1" x 6.22") |
| Weight | 1.0 kg |

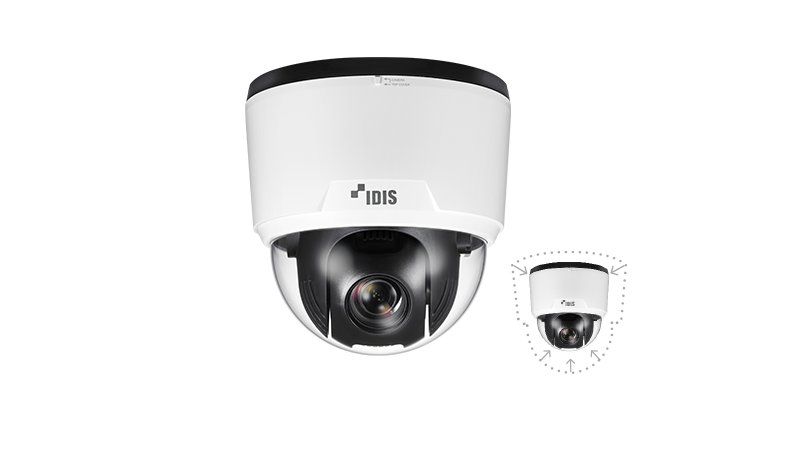

The DC-S6261X is a 2MP (1920x1080) mini PTZ camera with a 1/2.8" progressive scan sensor. It uses an auto-focus zoom lens with a focal length range of 5.3-64mm, providing a horizontal field of view from 58.2° at wide-angle to 4.83° at telephoto. The camera's infrared cut filter (ICR) supports day/night operation, with a minimum illumination of 0.1 lux in color and 0.01 lux in B/W mode at F1.6. It supports H.265, H.264, and M-JPEG video compression formats with a maximum frame rate of 30fps at full HD resolution and includes quadruple video streaming.
Image processing includes 120dB True WDR, electronic image stabilization (EIS), defog, and configurable settings for exposure, white balance, and backlight compensation (BLC). The camera offers 256 preset positions with pan and tilt ranges of 360° (endless) and 180°, respectively. It is rated for operation in temperatures from -10°C to +50°C (starting up above 0°C) and humidity from 0% to 90%. Power can be supplied via 12VDC (9.2W max) or PoE IEEE 802.3af (10W max).
