- • Easy installation with DirectIP NVR
- • Full HD (1080p) resolution
- • Motorized Vari-focal (f=7 - 22mm)
- • Micro SD/SDHC/SDXC
- • Audio in / out
- • Alarm in / out
- • PoE (IEEE 802.3af Class 3)
- • Day and night (ICR)
- • True wide dynamic range (WDR)
| Video | |
|---|---|
| Image Sensor | 1/2.8 |
| Max. Resolution | 1920 x 1080 |
| Scanning Mode | Progressive Scan |
| Lens Type | Motorized Vari-focal |
| Focal Length | 7 ~ 22mm |
| Aperture | F1.4 ~ F2.8 |
| Iris Control | DC Iris |
| Angular Field of View | Wide : 43.6º(H), 23.5º(V), 51.3º(D) Tele : 16.2º(H), 9.1º(V), 18.5º(D) |
| Min. Illumination | COLOR : 0.1 lux @ F1.4 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | - |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | BLC |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | - |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | - |
| Pan/Tilt/Rotate | |
| Pan Range | -175° ~ 175° |
| Tilt Range | 0° ~ 67° |
| Rotate Range | -177° ~ 177° |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.265 - CBR / VBR, H.264 - CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0 |
| Max. Frame Rate | 30ips : 1920 x 1080 (WDR) |
| Supported Resolution | 1920x1080, 1280x720, 640x360, 352x240 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | SSL Encryption, Multi-user Authority, IEEE 802.1x IP Filtering, HTTPS |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 256GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1 / 1 |
| Alarm In / Out | 1 / 1 |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67 |
| Operating Temperature | -20°C ~ 55°C (-4°F ~ 131°F) *Starting up at above 0°C (32°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 12VDC, PoE IEEE 802.3af (Class 3) |
| Power Consumption | 12V=, 0.64A, 7.7W PoE, IEEE 802.3af (Class 3), 7.8W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions | Ø155 x 105mm (Ø6.1" x 4.13") |
| Weight | 0.985kg (2.17lb) |
Name
Description
Size
Downloads
File
DC-D4246WX_AnE_Spec_v1.0.docx
0.1mb

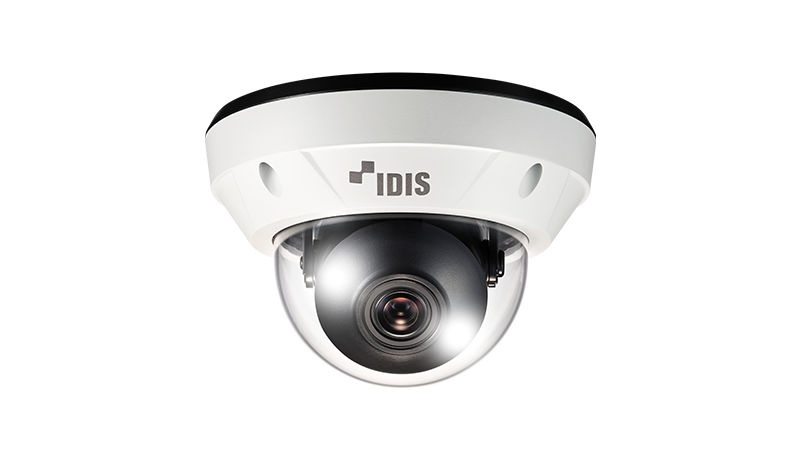

This is a 2MP dome camera. It features a 2-megapixel resolution of 1920 by 1080 pixels. It is equipped with a motorized vari-focal lens adjustable from 7 to 22 millimeters, providing a longer telephoto range. The imaging includes True Wide Dynamic Range and H.265 compression. It supports audio input and output and provides alarm input and output interfaces. Local storage is available via a Micro SD card slot. The camera is powered via Power over Ethernet using the IEEE 802.3af standard.
