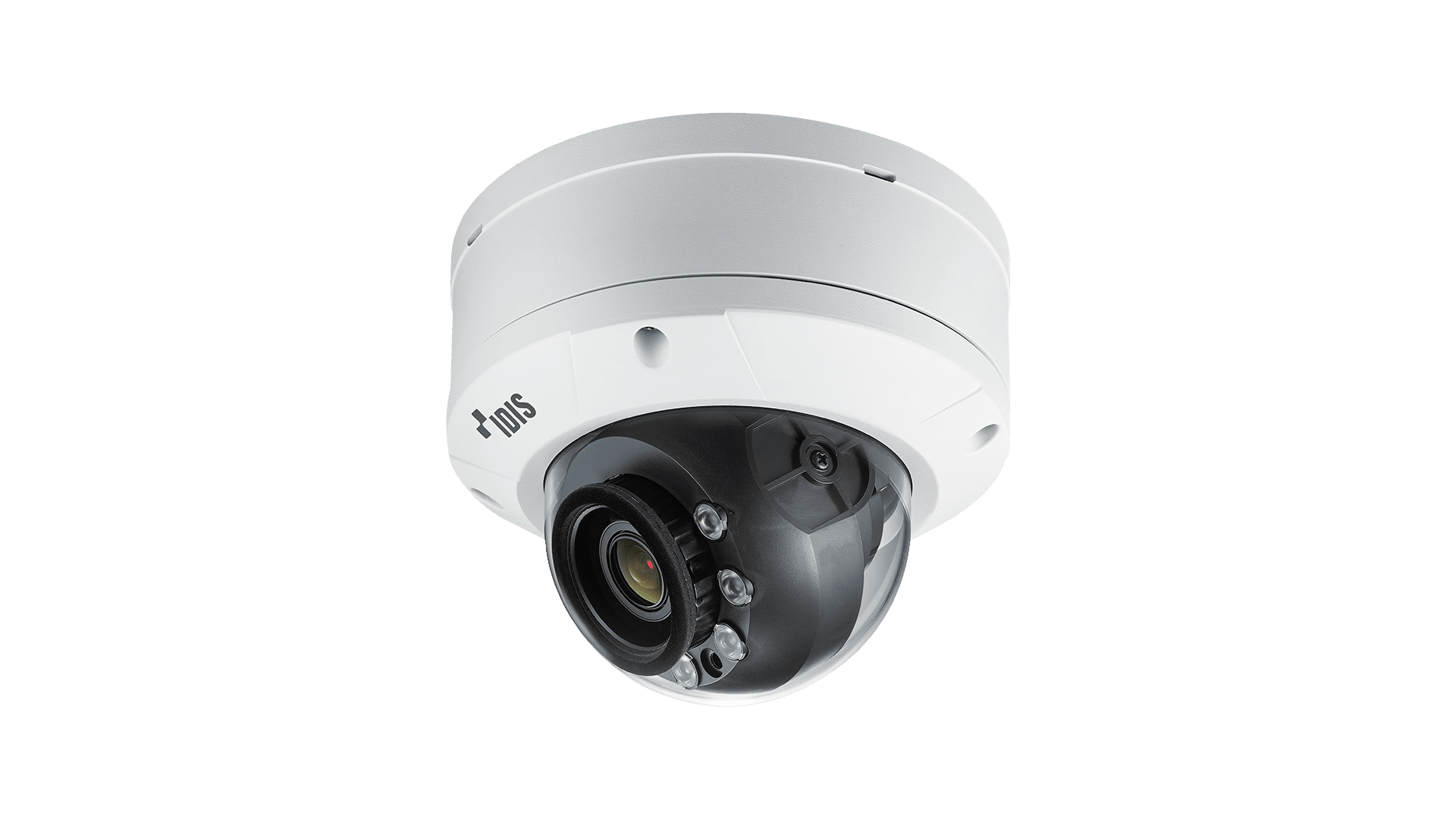

DC-D3C33HRX - 12MP Vandal-Resistant IR Dome Camera with Heater - IDIS
- • Easy installation with DirectIP NVR
- • 12MP (4000 x 3000) resolution
- • Motorized Vari-focal lens (f=4.5 - 10mm)
- • Micro SD/SDHC/SDXC, Smart Failover (Up to 256GB)
- • Two-way audio
- • Alarm in / out
- • IK10 / IP67 supports
- • Built-in heater
- • PoE (IEEE 802.3af Class 3), 12V DC
- • Day and night (ICR)
- • True wide dynamic range (WDR)
- • IR LED (Distance : 30m / 98.4ft)
- • 3-axis mechanical design for installation
- • Supports ONVIF
| Video | |
|---|---|
| Image Sensor | 1/1.7" CMOS |
| Max. Resolution | 4000 x 3000 |
| Scanning Mode | Progressive Scan |
| Lens Type | Motorized Vari-focal |
| Focal Length | f=4.5 -10mm |
| Aperture | F1.6 - 2.6 |
| Iris Control | P-Iris |
| Angular Field of View | [8MP mode] Wide : 90.2°(H), 48.5°(V), 106.2°(D), Tele : 41.6°(H), 23.3°(V), 47.8°(D) [12MP mode] Wide : 94.6°(H), 68.5°(V), 125.2°(D), Tele : 43.4°(H), 32.4°(V), 54°(D) |
| Pan/Tilt Range | Pan: -176° ~ 176°, Tilt: 0° ~ 65°, Rotate: -90° ~ 90° |
| Min. Illumination | COLOR : 0.3 lux @ F1.6 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120 dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/8000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | IR cut filter with auto switch |
| IR Distance (LEDs) | 30 m / 98.4 ft (6 ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | On / Off / HSBLC |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | - |
| De-fog | On / Off |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | 1 BNC(Accessory) |
| Network | |
| Video Compression | h.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Supported |
| Bitrate Control | H.264 - CBR / VBR, H.265 - CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP, ONVIF Profile S |
| Max. Frame Rate | DirectIP™ Mode : 30ips : 3840x2160(WDR) Compatibility Mode : 15ips : 4000 x 3000(WDR) 30ips : 3840x2160(WDR) |
| Supports Resolution | 12MP mode : 4000x3000, 2592x1944, 1280x960, 640x480, 320x240 8MP mode : 3840 x 2160 , 1920x1080, 1280x720, 640x360, 320x180 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP™ Mode : DirectIP Protocol Compatibility Mode : RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP |
| Security | DirectIP™ Mode : SSL Encryption Compatibility Mode : Multi-user Authority, IEEE 802.1x, IP Filtering, HTTPS, SSL Encryption |
| Remote Access Client | DirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite |
| Ethernet | RJ45 (10/100/1000BASE-T) |
| Recording Session Buffer | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 256GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio In/ Out | Line-in 1ea / Line-out 1ea |
| Alarm In / Out | Input 1ea / Output 1ea |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67, Heater |
| Operating Temperature | -40°C ~ +60°C (-40°F ~ +140°F) *Starting up at above -20°C (-4°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 12VDC, PoE (IEEE 802.3af Class 3) |
| Power Consumption | 12V=, 1.0A, 12W PoE, IEEE 802.3af(Class 3) |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions (Ø x H) | Ø160mm x 128.5mm (Ø6.30" x 5.06") |
| Weight | 1.21 kg |
This is a high-resolution 12-megapixel vandal-resistant dome camera designed for demanding environments. It features a 1/1.7-inch CMOS sensor and supports a maximum native resolution of 4000 by 3000 pixels. It is equipped with a motorized vari-focal lens (4.5 to 10mm) with P-Iris control, allowing for remote adjustment of the field of view and depth of field.
The camera delivers a maximum of 30 frames per second at 8MP resolution or 15 fps at its full 12MP resolution when WDR is enabled. For low-light operation, it incorporates six infrared LEDs with an effective range of 30 meters. It features 120 dB True Wide Dynamic Range, Digital Defog, and supports quadruple video streaming with H.265 and H.264 compression.The housing is extremely robust with IK10 vandal resistance and IP67 protection against dust and water. It includes a built-in heater for reliable operation in an extreme temperature range from -40°C to 60°C. It can be powered by 12V DC or PoE (IEEE 802.3af, Class 3), with a typical power consumption of 12 watts.
