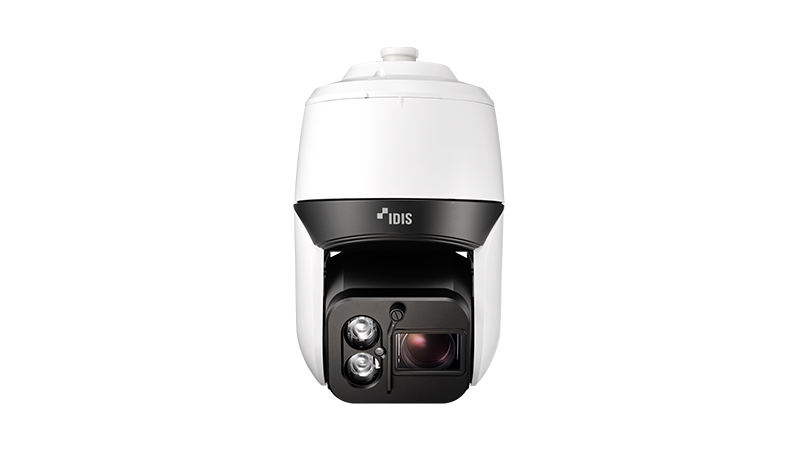

DC-S6481HRA - 4MP AI Speed Dome Camera LightMaster NIR - IDIS
- • Easy installation with DirectIP NVR
- • 4MP (2688 x 1520) resolution
- • AF optical zoom lens (f=6.91 ~ 248.76mm)
- • Built-in 400m Long range IR Illuminator
- • IDIS Deep-Learning Analytics (IDLA)
- • AI Auto Tracking Supports
| Video | |
|---|---|
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 2688 X 1520 |
| Scanning Mode | Progressive Scan |
| Lens Type | AF Zoom Lens |
| Focal Length | 6.91 ~ 248.76mm |
| Aperture | F1.36~F4.6 |
| Iris Control | P-Iris |
| Angular Field of View | Wide : 61.8°(H), 36.3°(V), 70.3°(D) Tele : 2.4°(H), 1.3°(V), 2.7°(D) |
| Min. Illumination | Color : 0.06 lux @ F1.35 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 400 m / 1,312.3ft (2ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | - |
| Mirroring / Pivot | Horizontal / Vertical |
| Image Stabilizer | Yes (EIS) |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Object Metadata: Human, Vehicle, Face IDLA: Object Detection, Intrusion, Loitering, Line Crossing, Face Detection ETC: Video Motion Detection, Active Tampering Alarm |
| Video Out | 1 Terminal Block |
| Pan/Tilt/Rotate | |
| Pan Range | 360° (Endless) |
| Pan Speed | 0.02~240°/sec (preset 240°/sec) |
| Tilt Range | 200° (-10~190°) |
| Tilt Speed | 0.02~240°/sec (preset 240°/sec) |
| Preset | 256ea |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.264 - CBR / VBR, H.265 - CBR / VBR |
| Audio Compression | Opus, ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S/T |
| Max. Frame Rate | 30ips : 2688 x 1520(WDR) |
| Supported Resolution | 2688 x 1520, 1920x1080, 1280x720, 640x360 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Object Detection, Intrusion, Loitering, Line Crossing, Face Detection |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1 / 1 |
| Alarm In / Out | 8 / 2 |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP66, Heater |
| Operating Temperature | -40°C ~ +60°C (-40°F ~ +140°F) *Starting up at above -20°C (-4°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 24VAC, PoE IEEE 802.3bt (Class 8) |
| Power Consumption | HEATER/IR OFF: 24V~, 1.5A, 27.1W, PoE, IEEE 802.3bt(Class 8), 26.4W HEATER/IR ON: 24V~, 2.8A, 52.9W, PoE, IEEE 802.3bt(Class 8), 54.2W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions | Ø242mm x 401.8mm (Ø9.52" x 15.82") |
| Weight | 7.2kg (15.87 lbs) |
The DC-S6481HRA is a 4MP AI speed dome camera with a 1/1.8" CMOS sensor providing 2688x1520 resolution. It features a 36x auto-focus zoom lens with a 6.91-248.76mm focal range, offering a horizontal field of view from 61.8 degrees wide to 2.4 degrees telephoto. It supports long-range infrared illumination up to 400 meters. The camera provides H.265, H.264, and M-JPEG video compression at up to 30 fps, with a terminal block video output and quadruple streaming.
The imaging features include 120dB True WDR, electronic image stabilization, and defog. Its AI capabilities provide object metadata for humans, vehicles, and faces, along with detection for intrusion, loitering, and line crossing. The PTZ mechanism provides 360-degree endless pan and a 200-degree tilt range with 256 presets. The housing is rated IP66 and IK10 and includes a heater. It operates in temperatures from -40°C to +60°C, starting up above -20°C. Power options are 24VAC or PoE 802.3bt, with maximum consumption of 54.2W.
