- • Dimension (mm) : 168 (L) x 148 (W) x 116 (H)
- • Weight : 0.56kg (1.23lb)
- • Material : Aluminum
| Material | Aluminum |
| Color | White |
| Dimensions | 168(L) x 148.0(W) x 116.0(H) (6.61"(L) x 5.82"(W) x 4.57"(H)) |
| Weight | 0.56kg (1.25lb) |
| Relevant Mount | DA-BM1100, DA-DH1100 |
| Relevant Model | DC-S6286HRXL, DC-S6481HRA, DC-S6882WR, DC-S6682WR DC-S6883WRA, DC-S6683WRA |
Name
Description
Size
Downloads
File
DA-CM1500_Datasheet.pdf
0.3mb

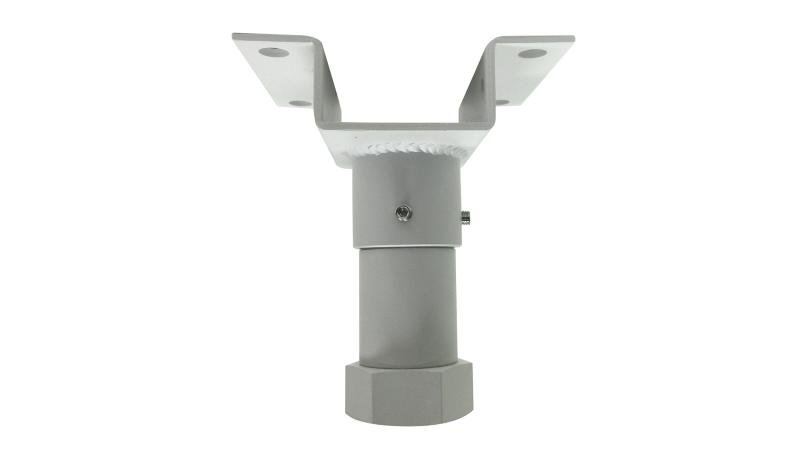

The DA-CM1500 is a ceiling mount designed for specific IDIS PTZ (Pan-Tilt-Zoom) camera models. Its primary function is to provide a secure mounting point for installing cameras on a ceiling surface. The mount is constructed from aluminum, offering a balance of strength and light weight (0.56kg). It is finished in white to match typical camera housings. Its dimensions are 168mm (L) x 148mm (W) x 116mm (H). This mount is designed for use with the DA-BM1100 adapter plate or the DA-DH1100 dome housing. It is specified for use with several high-performance PTZ camera models, including the DC-S6286HRXL, DC-S6481HRA, DC-S6882WR, DC-S6682WR, DC-S6883WRA, and DC-S6683WRA.
