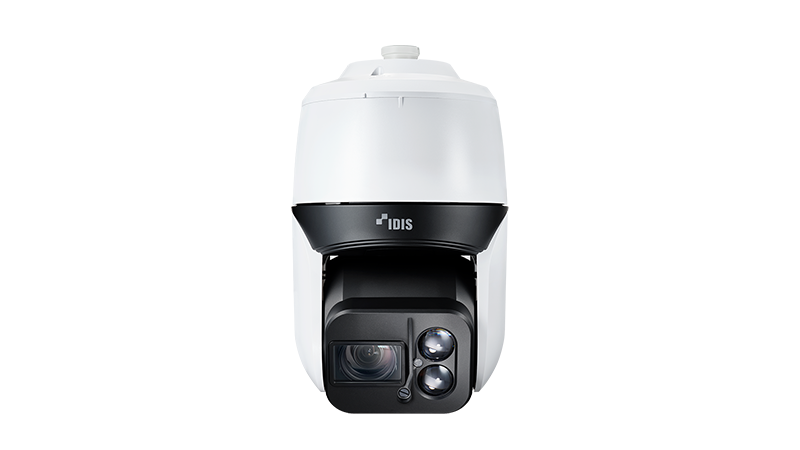

DC-S6882WR - 8MP IR Speed Dome Camera LightMaster NIR - IDIS
- • Easy installation with DirectIP NVR
- • 4K UHD (3840 x 2160) resolution
- • AF optical zoom lens (f=6.91 ~ 214.64mm)
- • Built-in 300m Long range IR Illuminator
| Video | |
|---|---|
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 3840 x 2160 |
| Scanning Mode | Progressive Scan |
| Lens Type | AF Zoom Lens |
| Focal Length | 6.91 ~ 214.64mm |
| Aperture | F1.36 ~ F4.6 [TBD] |
| Iris Control | P-Iris |
| Angular Field of View | Wide : 61.8°(H), 36.3°(V), 70.3°(D) Tele : 2.3°(H), 1.3°(V), 2.6°(D |
| Min. Illumination | Color : 0.13 lux @ F1.36 B/W : 0 lux (IR LED On) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 300 m/984.3ft (2ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | - |
| Mirroring / Pivot | Horizontal / Vertical |
| Image Stabilizer | Yes (EIS) |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | 1 Terminal Block |
| Pan/Tilt/Rotate | |
| Pan Range | 360° (Endless) |
| Pan Speed | 0.02~240°/sec (preset 240°/sec) |
| Tilt Range | 200° (-10~190°) |
| Tilt Speed | 0.02~240°/sec (preset 240°/sec) |
| Preset | 256ea |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.264 - CBR / VBR, H.265 - CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0 |
| Max. Frame Rate | 30ips : 3840 x 2160(WDR) |
| Supported Resolution | 3840 x 2160, 1920x1080, 1280x720, 640x360 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP,RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone, System Status |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1 / 1 |
| Alarm In / Out | 8 / 2 |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP66 |
| Operating Temperature | -40°C ~ +55°C (-40°F ~ +131°F) *Starting up at above -20°C (-4°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 24VAC, PoE (IEEE 802.3bt, Class 8) |
| Power Consumption | HEATER, IR LED OFF 24VAC, 1.6A, 28.0W, 50/60Hz PoE, IEEE 802.3bt(Class 8), 28.4W HEATER, IR LED ON 24VAC, 2.8A, 52.9W, 50/60Hz PoE, IEEE 802.3bt(Class 8), 53.1W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions | Ø242mm x 401.8mm (Ø9.52" x 15.82") |
| Weight | 7.4kg (16.31lb) |
The DC-S6882WR is an 8MP (3840x2160) IR speed dome camera featuring a 1/1.8" CMOS sensor and an auto-focus zoom lens with a 6.91-214.64mm focal length. Its horizontal field of view ranges from 61.8° at wide-angle to 2.3° at telephoto. The camera is equipped with IR LEDs providing illumination up to 300 meters, supporting operation down to 0 lux in B/W mode with IR on. It provides video output via a terminal block and supports H.265, H.264, and M-JPEG compression formats at up to 30 fps in 4K resolution with quadruple streaming.
The image processing features include 120dB True WDR, electronic image stabilization (EIS), defog, and configurable image settings. The unit has a motorized PTZ mechanism with 360° endless pan, 200° tilt (-10° to +190°), and 256 presets. It is built for harsh environments with an IP66 ingress protection rating and IK10 vandal resistance. The operating temperature range is -40°C to +55°C (starting up above -20°C). Power can be supplied via 24VAC or PoE IEEE 802.3bt (Class 8), with maximum power consumption reaching approximately 53W when the heater and IR LEDs are active.
