DC-T6631WRA - 6M AI IR Bullet Camera Edge AI Plus - IDIS
- • IDIS Edge AI Plus Camera
- • Easy installation with DirectIP NVR
- • H.265 and Intelligent Codec
- • 12V DC, PoE (IEEE 802.3af Class 3)
- • IR LED (Distance: 60m / 196.9ft)
- • IDIS Deep-Learning Analytics (IDLA), IDIS Deep-Learning Analytics Pro (IDLA Pro)
- • Attribute Support(Human, Vehicle, Face), A-cut Support
- • IK10
- • IP67
- • Smart Failover (Up to 512GB)
- • Supports ONVIF
- • True WDR
- • Alarm in / out
| Video | |
|---|---|
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 3328 x 1872 |
| Scanning Mode | Progressive Scan |
| Lens Type | Motorized Vari-focal |
| Focal Length | 4.3 ~ 9.8mm |
| Aperture | F1.6 ~ F2.6 |
| Iris Control | P-Iris |
| Angular Field of View | Wide : 110.4º(H) 57.8º(V) 133.8º(D) Tele : 45º(H) 25.2º(V) 51.8(D) |
| Min. Illumination | COLOR : 0.13 lux @ F1.6 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 60m / 196.9ft (6ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | BLC |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | Yes (EIS) |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | A-cut Support Object Metadata: Human, Vehicle, Face Object Attribute: Human[Gender, Age, Bag, Hat, Colors], Vehicle[Car, Truck, Bus, Bike(Bicycle, Motorcycle), ETC, Colors], Face[Gender, Age, Glasses, Hat, Mask] IDLA: Object Detection, Intrusion, Loitering, Line Crossing, Face Detection IDLA Pro: Crowd Detection, Abandoned Object Detection, Removed Object Detection, Fall Detection ETC: Video Motion Detection, Active Tampering Alarm |
| Video Out | 1 CVBS |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.265 - CBR / VBR, H.264 - CBR / VBR |
| Audio Compression | Opus, ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S/T/M |
| Max. Frame Rate | 30ips : 3328 x 1872(WDR) |
| Supported Resolution | 3328x1872, 1920x1080, 1280x720, 640x360 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, Upnp, SNMPv2 |
| Security | FIPS 140-3 Level 3, Digest authentication, Password Protection, Brute force delay protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Object Detection, Intrusion, Loitering, Line Crossing, Face Detection, Crowd detection, Abandoned object detection, Removed object detection, Fall detection |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1 / 1 |
| Alarm In / Out | 1 / 1 |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67, NEMA4X |
| Operating Temperature | -40°C ~ +55°C (-40°F ~ +131°F) *Starting up at above -20°C (-4°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 12VDC, PoE, IEEE 802.3af(Class 3) |
| Power Consumption | 12V , 1.1A, 13.2W PoE, IEEE 802.3af(Class 3), 57VDC, 12W |
| Approval | UL, FCC, CE, KC |
| Mechanical | |
| Dimensions | 89.3mm X 89.3mm X 307.1mm (3.52" x 3.52" x 12.09") |
| Weight | 1.95kg (4.30lb) |

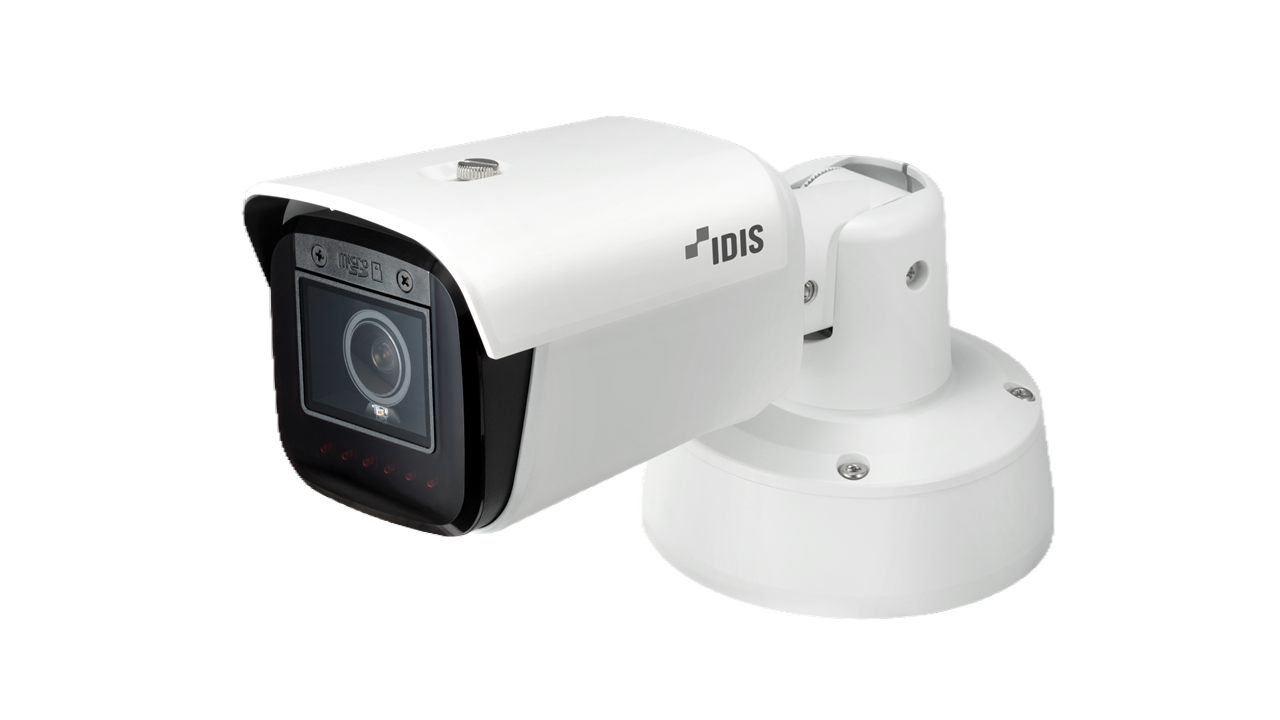

The DC-T6631WRA is a 6MP bullet camera with a 1/1.8" CMOS sensor and a motorized vari-focal lens with a 4.3-9.8mm focal range, offering a horizontal field of view from 110.4 degrees wide to 45 degrees telephoto. It provides infrared illumination up to 60 meters and uses H.265, H.264, and M-JPEG video compression with up to 30 fps streaming, plus a CVBS analog video output.
It includes advanced AI-based object metadata and attribute analysis for people and vehicles, along with detection for intrusion, loitering, line crossing, and specialized analytics like crowd, abandoned object, and fall detection. Imaging features include 120dB True WDR, electronic image stabilization, and defog. The housing is rated IP67, NEMA4X, and IK10. It operates from -40°C to +55°C, starting above -20°C, and can be powered by 12VDC or PoE 802.3af, with a maximum consumption of 13.2W.
