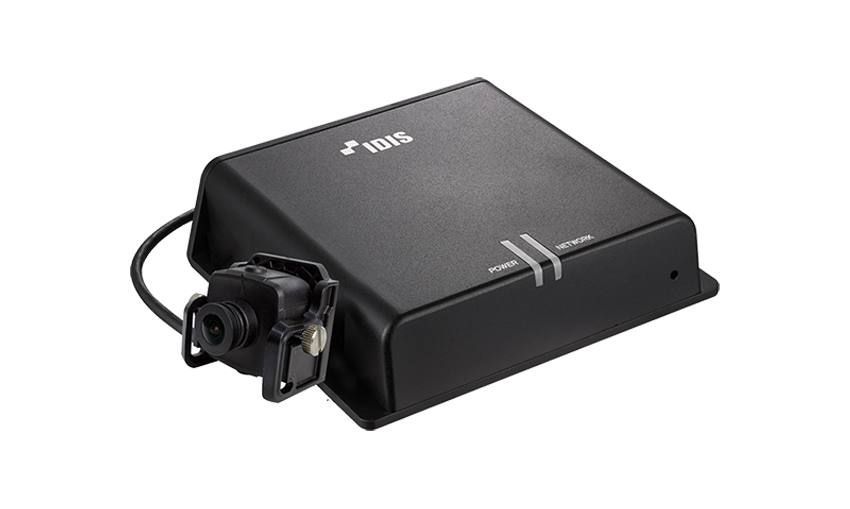

DC-V4212XJ 4.3mm - 2MP Modular Covert Camera - IDIS
- • Easy installation with DirectIP NVR
- • Full HD (1080p) resolution
- • Fixed-focal lens (f=4.3mm)
- • Micro SD/SDHC/SDXC
- • Two-way audio
- • Alarm in / out
- • PoE (IEEE 802.3af Class 4)
- • True wide dynamic range (WDR)
| Video | |
| Image Sensor | 1/2.8" CMOS |
| Max. Resolution | 1920 x 1080 |
| Scanning Mode | Progressive Scan |
| Lens Type | Fixed-focal |
| Focal Length | 4.3mm |
| Aperture | F2.0 |
| Iris Control | Fixed Iris |
| Angular Field of View | 81.6º(H), 42.3º(V), 99º(D) |
| Min. Illumination | COLOR : 0.1 lux @ F2.0 B/W : 0.01 lux @ F2.0 |
| Dynamic Range | More than 70 dB |
| Electronic Shutter Speed | Auto / Manual (1/30,1/25Sec ~ 1/30000Sec) / Anti-Flicker |
| Day and Night | Yes (Electrical) |
| IR Distance (LEDs) | - |
| Image Setting | Sharpness, 3DNR, Exposure |
| Backlight Compensation | BLC, WDR, HLC |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | - |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | - |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.264 - CBR / VBR, H.265 - CBR / VBR |
| Audio Compression | G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0 |
| Max. Frame Rate | 30ips : 1920 x 1080 (WDR) |
| Supported Resolution | 1920x1080, 1280x720, 640x360, 352x240 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, Upnp |
| Security | Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1 / 1 |
| Alarm In / Out | 1 / 1 |
| Environmental | |
| Vandal Proof Casing | - |
| Outdoor Ready | - |
| Operating Temperature | -10°C ~ +50°C (+14°F ~ +122°F) *Starting up at above 0°C (32°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 12VDC, PoE IEEE 802.3at (Class 4) |
| Power Consumption | 12V=, 0.42A, 5.04W PoE, IEEE 802.3at(Class 4), 6.3W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Weight | Main Unit : 0.47kg (1.04 lb) Camera Unit : 0.06kg ( 0.13 lb) |
This is a Full High Definition indoor network camera with a standard 81.6-degree horizontal field of view, delivered by a 4.3 millimeter fixed-focal F2.0 lens and a 1/2.8-inch Complementary Metal-Oxide-Semiconductor sensor. It supports modern High Efficiency Video Coding (H.265) and Advanced Video Coding (H.264) compression at 30 frames per second fps and provides image enhancement through over 70 decibels (dB) of Wide Dynamic Range, Back Light Compensation, High Light Compensation, and Defog functionality.
Designed for indoor environments, the camera operates within a temperature range of -10 to +50 degrees Celsius and receives power via 12 Volt Direct Current or Power over Ethernet compliant with IEEE 802.3at Class 4, with a maximum consumption of 6.3 watts. It includes two-way audio with G.711 and G.726 compression, supports edge storage using microSD, SDHC, or SDXC cards up to 512 Gigabytes, and integrates into systems using the DirectIP 2.0 protocol.
