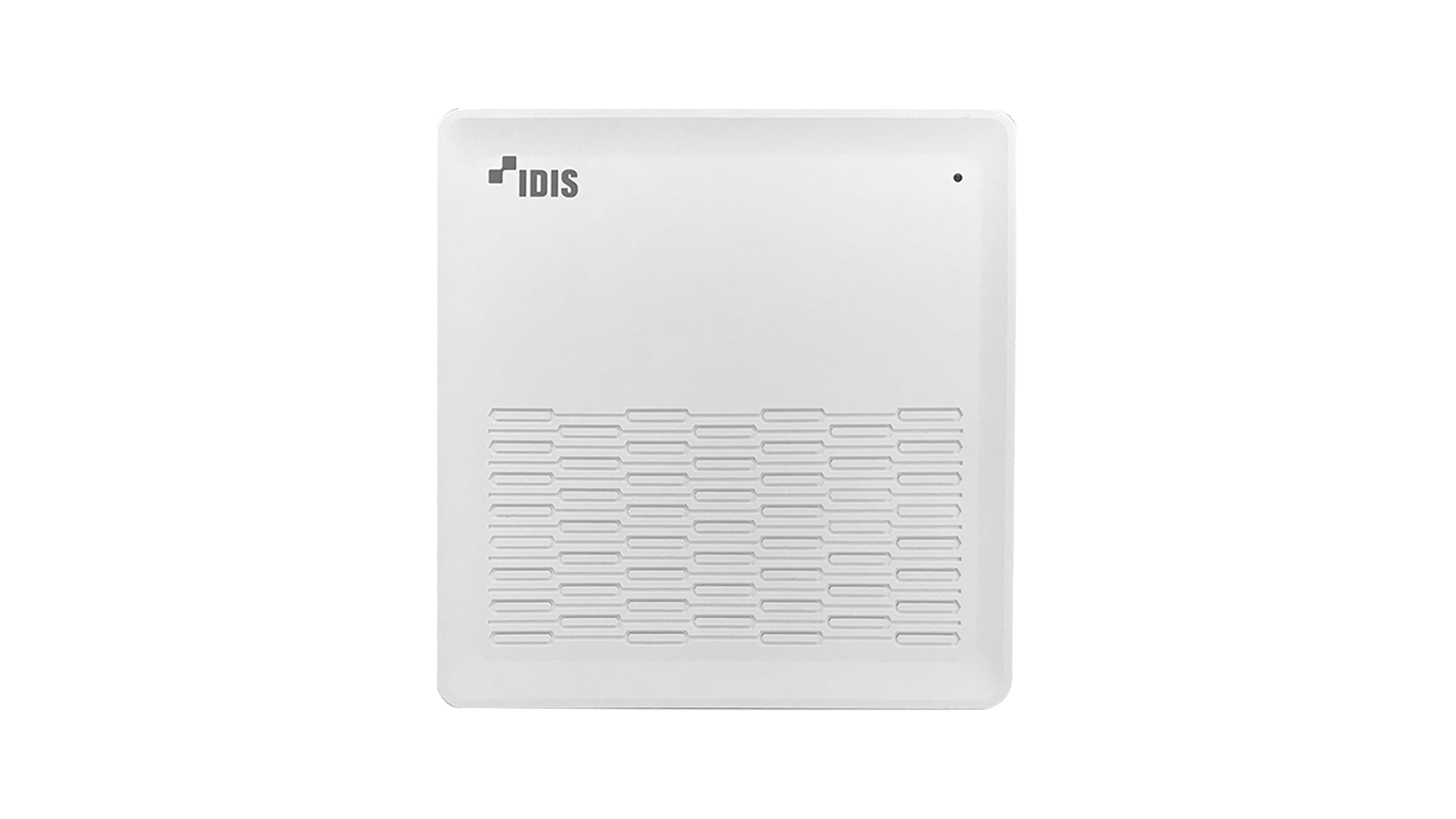

DR-1504P-4TB - DirectIP 1500 Series Full HD Recorder - IDIS
- • Total incoming throughput 60Mbps
- • Up to 120ips 8MP real-time recording
- • Up to 120ips live display
- • Easy to install, set-up, and play with DirectIP cameras
- • Built-in 4 channel PoE Switch
- • Supports one click network configuration through FEN service
| Video | |
| Video Inputs | 4 IP Channels |
| Max. Incoming Throughput | 60Mbps |
| Supported Camera | DirectIP |
| Video Outputs | 1 HDMI, 1 VGA |
| Display Resolution | 1920 x 1200, 1920 x 1080, 1680 x 1050, 1600 x 1200 |
| Display Speed | Up to 120ips |
| Digital Zoom | x2 ~ x12 |
| NVR Side Dewarping | - |
| Recording | |
| Max. Throughput | 20Mbps, 120ips@8MP |
| Recording Resolution | Up to 8MP (Depending on IP Camera) |
| Video Compression | H.265, H.264 |
| Recording Mode | Time-lapse, Event, Pre-event, Panic |
| Trigger Event | Motion, Trip-zone, Tampering, Video Loss, System, Etc. |
| Playback | |
| Performance | 4ch Full HD Synchronous Playback |
| Search Mode | Time-lapse, Event Log |
| Digital Zoom | x2 ~ x12 |
| Storage | |
| HDD | SATA x 1 |
| Total Capacity | 4TB=4TB x 1 |
| Network | |
| Client Connection | Fast Ethernet (Client) x1 |
| Video In Connection | Fast Ethernet (IP Camera) x4 |
| Transmission Speed | 20Mbps |
| PSE Power | PoE (IEEE 802.3at Class 4) Supported 4 Ports, 30W |
| Event Notification | Email (MP4), Callback to Remote S/W, Push Notification (IDIS Mobile) |
| Two-way Audio | - |
| Interface | |
| Audio In / Out | - |
| Alarm In / Out | - |
| Alarm Reset In | - |
| Serial Interface | - |
| USB | USB 2.0 x 2 |
| User Interface | Mouse |
| General | |
| Operating System | Embedded Linux |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32℉ ~ 104℉) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Consumption | 48V=, 0.9A, 43W MAX |
| Approval | KC, CE, FCC |
| Mechanical | |
| Unit Dimensions (W x H x D) | 205mm x 44.5mm x 216.4mm (8.07" x 1.75" x 8.52") |
| Unit Weight | 1.2kg (2.65 lb) (with 1 HDD) |
This is a compact 4-channel standalone PoE Network Video Recorder designed as an all-in-one solution for small surveillance systems. It features four integrated PoE IEEE 802.3at ports that provide both power and data to compatible IP cameras, supporting up to 30 watts total PoE power. The NVR can record from DirectIP cameras at a maximum combined throughput of 20 Mbps and supports resolutions up to 8 Megapixels.
The unit delivers smooth live viewing with a display speed of up to 120 frames per second on its HDMI or VGA outputs at up to 1920x1200 resolution, and supports 4-channel Full HD synchronous playback. It includes one SATA hard drive bay supporting drives up to 4TB for local storage, recording via H.265/H.264 compression in continuous, event, or pre-event modes. Operating on an embedded Linux system, it functions within 0°C to 40°C and is powered by 48V DC, consuming a maximum of 43 watts.
