DR-1508P-4TB - DirectIP 1500 Series Full HD Recorder - IDIS
- • Total incoming throughput 100Mbps
- • Up to 240ips 8MP real-time recording
- • Up to 240ips live display
- • Easy to install, set-up, and play with DirectIP cameras
- • Built-in 8 channel PoE Switch
- • Supports one click network configuration through FEN service
| Video | |
|---|---|
| Video Inputs | 8 IP Channels |
| Max. Incoming Throughput | 100Mbps |
| Supported Camera | DirectIP |
| Video Outputs | 1 HDMI, 1 VGA |
| Display Resolution | 1920 x 1200, 1920 x 1080, 1680 x 1050, 1600 x 1200 |
| Display Speed | Up to 240ips |
| Digital Zoom | x2 ~ x12 |
| NVR Side Dewarping | - |
| Recording | |
| Max. Throughput | 40Mbps, 240ips@8MP |
| Recording Resolution | Up to 8MP (Depending on IP Camera) |
| Video Compression | H.265, H.264 |
| Recording Mode | Time-lapse, Event, Pre-event, Panic |
| Trigger Event | Motion, Trip-zone, Tampering, Video Loss, System, Etc. |
| Playback | |
| Performance | 4ch Full HD Synchronous Playback |
| Search Mode | Time-lapse, Event Log |
| Digital Zoom | x2 ~ x12 |
| Storage | |
| HDD | SATA x 1 |
| Total Capacity | 4TB=4TB x 1 |
| Network | |
| Client Connection | Fast Ethernet (Client) x1 |
| Video In Connection | Fast Ethernet (IP Camera) x8 |
| Transmission Speed | 20Mbps |
| PSE Power | PoE (IEEE 802.3at Class 4) Supported 8 Ports, 50W |
| Event Notification | Email (MP4), Callback to Remote S/W, Push Notification (IDIS Mobile) |
| Two-way Audio | - |
| Interface | |
| Audio In / Out | - |
| Alarm In / Out | - |
| Alarm Reset In | - |
| Serial Interface | - |
| USB | USB 2.0 x 2 |
| User Interface | Mouse |
| General | |
| Operating System | Embedded Linux |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32℉ ~ 104℉) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Consumption | 54-56V=, 1.28-1.24A, 69W MAX |
| Approval | KC, CE, FCC |
| Mechanical | |
| Unit Dimensions (W x H x D) | 205mm x 44.5mm x 216.4mm (8.07" x 1.75" x 8.52") |
| Unit Weight | 1.2kg (2.65 lb) (with 1 HDD) |

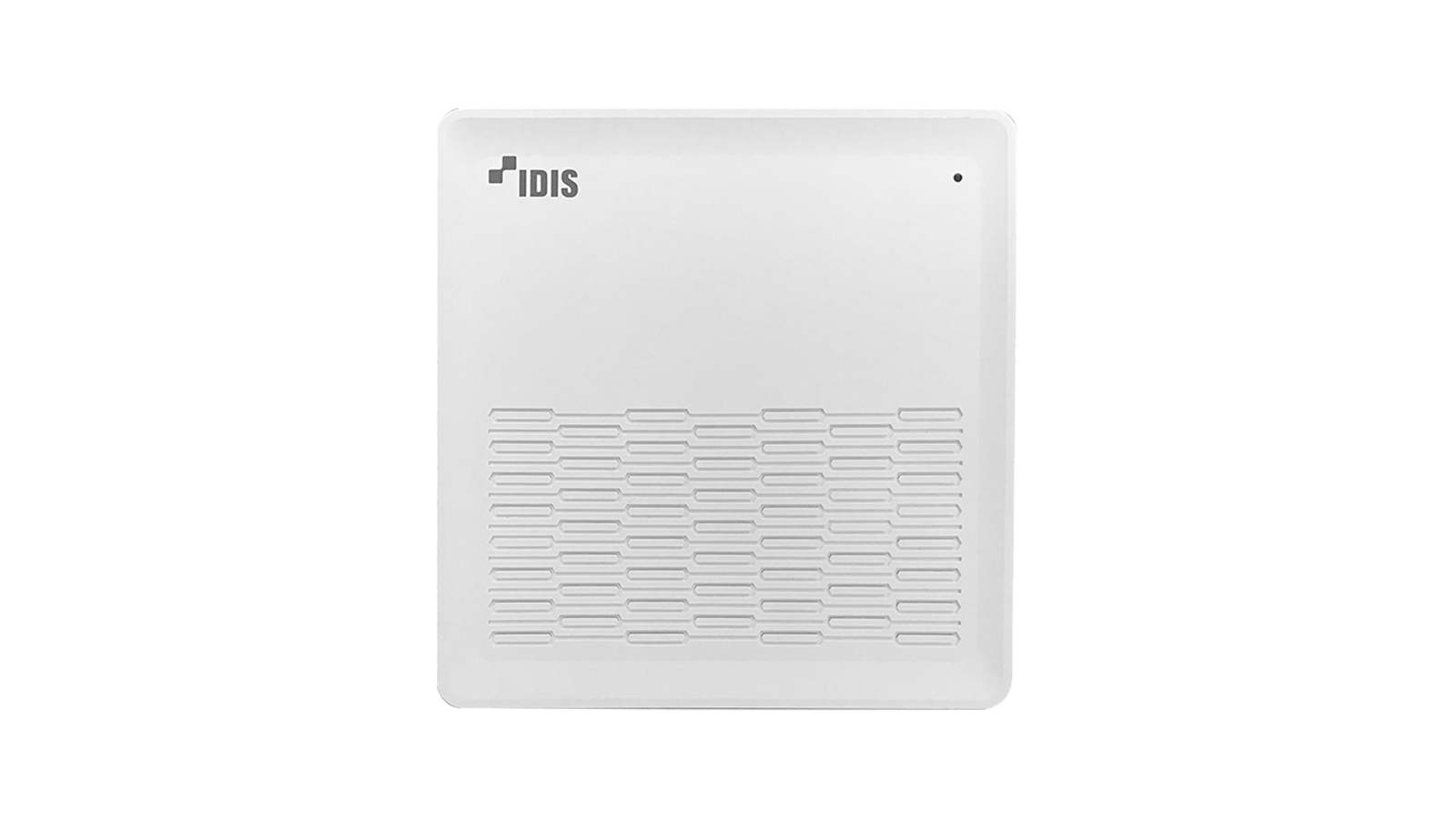

This is an 8-channel standalone PoE Network Video Recorder designed for small to medium surveillance setups. It features eight integrated PoE IEEE 802.3at ports that deliver both power and data to compatible IP cameras, with a total budget of 50 watts. The NVR can record from DirectIP cameras at a maximum combined throughput of 40 Mbps and supports recording resolutions up to 8 Megapixels.
The unit provides fluid live viewing with a display speed up to 240 frames per second on its HDMI or VGA outputs at resolutions up to 1920x1200, and supports 4-channel Full HD synchronous playback during review. It includes one SATA hard drive bay for a drive up to 4TB, recording via H.265/H.264 compression in various modes. Operating on an embedded Linux system within 0°C to 40°C, it is powered by 54-56V DC and consumes a maximum of 69 watts.
