DR-2504P-12TB - DirectIP 2500 Series H.265 4K Recorder - IDIS
- • Total incoming throughput 160Mbps
- • Up to 120ips UHD real-time recording
- • Supports H.265 / H.264 codec
- • Supports UHD display
- • Up to 120ips live display
- • Easy to install, set-up and play with DirectIP™ cameras
- • Built-in 4 channel PoE Switch
- • Supports one click network configuration through FEN service
- • Supports third party cameras (Axis, Panasonic, ONVIF™ )
| Video | |
|---|---|
| Video Inputs | 4 IP channels |
| Max. Incoming Throughput | 160Mbps |
| Supported Camera | DirectIP™, AXIS, PANASONIC, ONVIF™ |
| Video Outputs | 1 HDMI, 1 VGA |
| Display Resolution | HDMI : 3840x2160, 1920 x 1200, 1920 x 1080, 1680 x 1050, 1600 x 1200 VGA : 1920 x 1200, 1920 x 1080, 1680 x 1050, 1600 x 1200 |
| Display Speed | Up to 120ips |
| Digital Zoom | x2 ~ x12 |
| NVR Side Dewarping | - |
| Recording | |
| Max. Throughput | 70Mbps, 120ips@UHD |
| Recording Resolution | Up to 12MP (Depending on IP Camera) |
| Video Compression | H.265, H.264 |
| Recording Mode | Time-Lapse, Event, Pre-Event, Panic |
| Trigger Event | IDLA(Object Detection, Intrusion, Loitering, Line Crossing, Face Detection), BI(Exceed Occupancy Limit, Social Distancing, Mask Rule Violation, Queue Congestion), Motion, Trip-zone, Tampering, Video Loss, Audio Detection, Alarm In, Network Alarm, Text-in, System, Etc. |
| Playback | |
| Performance | 4ch synchronous playback 4ch 4K playback |
| Search Mode | Time-lapse, Event Log, Text-in, Thumbnail, Metadata(via IDIS Center, IDIS Solution Suite) |
| Digital Zoom | x2 ~ x12 |
| Storage | |
| HDD | SATA x 2, eSATA x 1 |
| Total Capacity | 44TB=10TB x 2(Internal) + 6TB x 1x4(External) |
| Network | |
| Client Connection | Gigabit Ethernet(Client) x1 |
| Video In Connection | Fast Ethernet(IP Camera) x4 |
| Transmission Speed | 50Mbps / 100Mbps(BRP Mode) |
| PSE Power | PoE(IEEE 802.3at class 4) supported 4 ports, 50W |
| Event Notification | Email (attach clip (.cbf) .MP4), Callback to Remote S/W, Push notification (IDIS Mobile) |
| Two-way Audio | Yes |
| Interface | |
| Audio In / Out | Local(NVR) : - / 1RCA + 1HDMI IP Camera : 4 / 4 (Depending on IP Camera) |
| Alarm In / Out | Local(NVR) : 4 / 1 IP Camera : 4 / 4 (Depending on IP Camera) |
| Alarm Reset In | - |
| Serial Interface | RS232 (Terminal Block) |
| USB | USB 2.0 x 1, USB 3.0 x 1 |
| User Interface | Mouse, IR Remote Control, Network Remote Keyboard |
| General | |
| Operating System | Embedded Linux |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32℉ ~ 104℉) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Consumption | NVR: 12V=, 2.2A, 26.4W PSE: 48V=, 1.04A, 50W MAX |
| Approval | FCC, CE, KC |
| Mechanical | |
| Unit Dimensions (W x H x D) | 300mm x 62mm x 231 mm (11.8" x 2.4" x 9.1") |
| Unit Weight | 2.2kg (4.9lb) (with 1 HDD) |

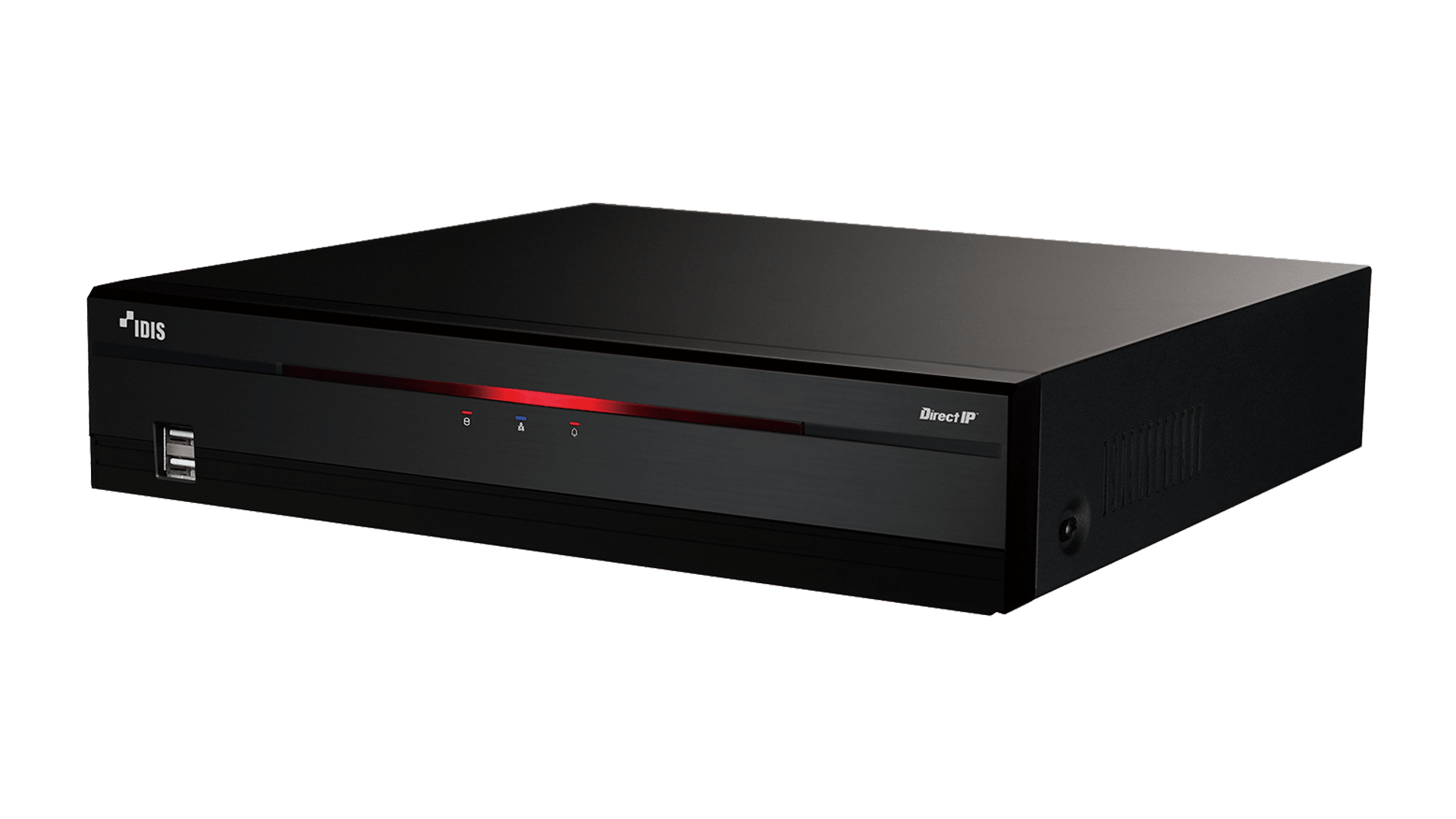

This 4-channel advanced 4K Network Video Recorder (NVR) is engineered for high-resolution surveillance systems utilizing AI analytics. It supports integration with DirectIP™, ONVIF™, and third-party IP cameras, featuring four integrated Power over Ethernet (PoE) ports compliant with IEEE 802.3at, Class 4 to deliver both data and up to 50 watts total power to connected devices.
The capability is its processing and recording of AI metadata from compatible cameras, enabling advanced Intelligent Deep Learning Analytics (IDLA) such as object detection, intrusion, loitering, line crossing, and face detection, alongside Business Intelligence (BI) rules for monitoring occupancy limits and social distancing. The NVR records video at resolutions up to 12 Megapixels with a maximum throughput of 70 Mbps, provides 4K Ultra High Definition (UHD) HDMI output for live viewing, and supports 4-channel synchronous 4K playback. Storage is flexible with two internal SATA hard drive bays and an eSATA port for expansion.
Operating on an embedded Linux system within a temperature range of 0°C to 40°C, the unit has a power consumption of 26.4 watts for the NVR itself and up to an additional 50 watts for the PoE subsystem. It includes four local alarm inputs and one output, supports two-way audio, and offers remote access and notifications via IDIS Mobile and desktop client software.
