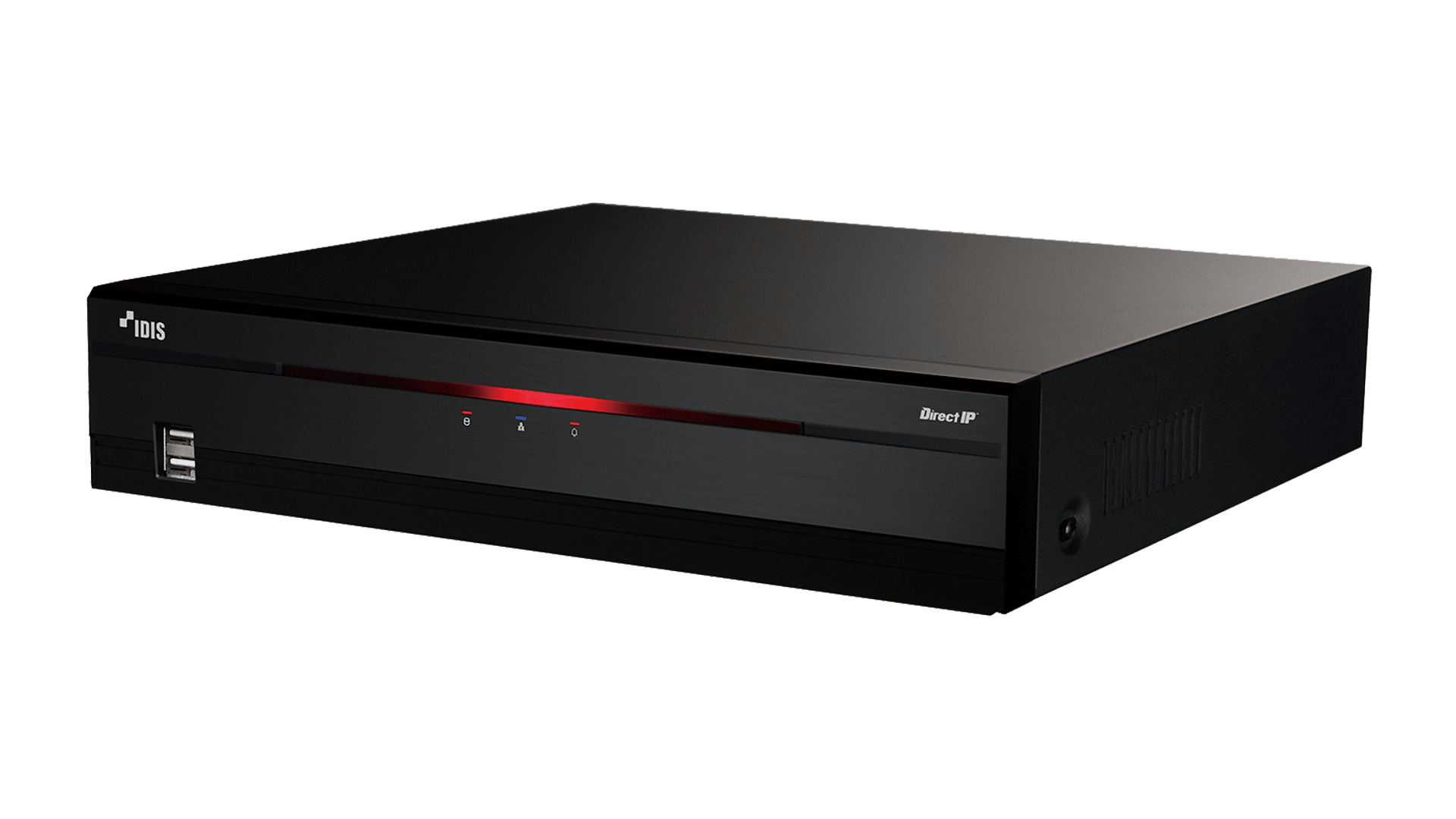

DR-2504P-20TB - DirectIP 2500 Series H.265 4K Recorder - IDIS
Part number:
Price:
- • Total incoming throughput 160Mbps
- • Up to 120ips UHD real-time recording
- • Supports H.265 / H.264 codec
- • Supports UHD display
- • Up to 120ips live display
- • Easy to install, set-up and play with DirectIP™ cameras
- • Built-in 4 channel PoE Switch
- • Supports one click network configuration through FEN service
- • Supports third party cameras (Axis, Panasonic, ONVIF™ )
| Video | |
|---|---|
| Video Inputs | 4 IP channels |
| Max. Incoming Throughput | 160Mbps |
| Supported Camera | DirectIP™, AXIS, PANASONIC, ONVIF™ |
| Video Outputs | 1 HDMI, 1 VGA |
| Display Resolution | HDMI : 3840x2160, 1920 x 1200, 1920 x 1080, 1680 x 1050, 1600 x 1200 VGA : 1920 x 1200, 1920 x 1080, 1680 x 1050, 1600 x 1200 |
| Display Speed | Up to 120ips |
| Digital Zoom | x2 ~ x12 |
| NVR Side Dewarping | - |
| Recording | |
| Max. Throughput | 70Mbps, 120ips@UHD |
| Recording Resolution | Up to 12MP (Depending on IP Camera) |
| Video Compression | H.265, H.264 |
| Recording Mode | Time-Lapse, Event, Pre-Event, Panic |
| Trigger Event | IDLA(Object Detection, Intrusion, Loitering, Line Crossing, Face Detection), BI(Exceed Occupancy Limit, Social Distancing, Mask Rule Violation, Queue Congestion), Motion, Trip-zone, Tampering, Video Loss, Audio Detection, Alarm In, Network Alarm, Text-in, System, Etc. |
| Playback | |
| Performance | 4ch synchronous playback 4ch 4K playback |
| Search Mode | Time-lapse, Event Log, Text-in, Thumbnail, Metadata(via IDIS Center, IDIS Solution Suite) |
| Digital Zoom | x2 ~ x12 |
| Storage | |
| HDD | SATA x 2, eSATA x 1 |
| Total Capacity | 44TB=10TB x 2(Internal) + 6TB x 1x4(External) |
| Network | |
| Client Connection | Gigabit Ethernet(Client) x1 |
| Video In Connection | Fast Ethernet(IP Camera) x4 |
| Transmission Speed | 50Mbps / 100Mbps(BRP Mode) |
| PSE Power | PoE(IEEE 802.3at class 4) supported 4 ports, 50W |
| Event Notification | Email (attach clip (.cbf) .MP4), Callback to Remote S/W, Push notification (IDIS Mobile) |
| Two-way Audio | Yes |
| Interface | |
| Audio In / Out | Local(NVR) : - / 1RCA + 1HDMI IP Camera : 4 / 4 (Depending on IP Camera) |
| Alarm In / Out | Local(NVR) : 4 / 1 IP Camera : 4 / 4 (Depending on IP Camera) |
| Alarm Reset In | - |
| Serial Interface | RS232 (Terminal Block) |
| USB | USB 2.0 x 1, USB 3.0 x 1 |
| User Interface | Mouse, IR Remote Control, Network Remote Keyboard |
| General | |
| Operating System | Embedded Linux |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32℉ ~ 104℉) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Consumption | NVR: 12V=, 2.2A, 26.4W PSE: 48V=, 1.04A, 50W MAX |
| Approval | FCC, CE, KC |
| Mechanical | |
| Unit Dimensions (W x H x D) | 300mm x 62mm x 231 mm (11.8" x 2.4" x 9.1") |
| Unit Weight | 2.2kg (4.9lb) (with 1 HDD) |
Name
Description
Size
Downloads
File
DR-2504P-B_AnE_Spec_v1.0_0.docx
0.1mb
File
DR-2504P_AnE_Spec_v1.3_0.docx
0.1mb
File
DR-2504P-B_Datasheet.pdf
0.5mb
This is a 4-channel 4K NVR with built-in PoE, designed for AI-powered surveillance. It supports DirectIP, ONVIF, and third-party cameras via four PoE ports (802.3at), providing 50W total power. It records up to 12MP video, processes AI metadata for object detection and business analytics, and offers 4K HDMI output. Storage includes two internal SATA bays plus eSATA. The unit operates from 0°C to 40°C, consumes 26.4W (plus 50W PoE), and supports remote access via IDIS Mobile.
