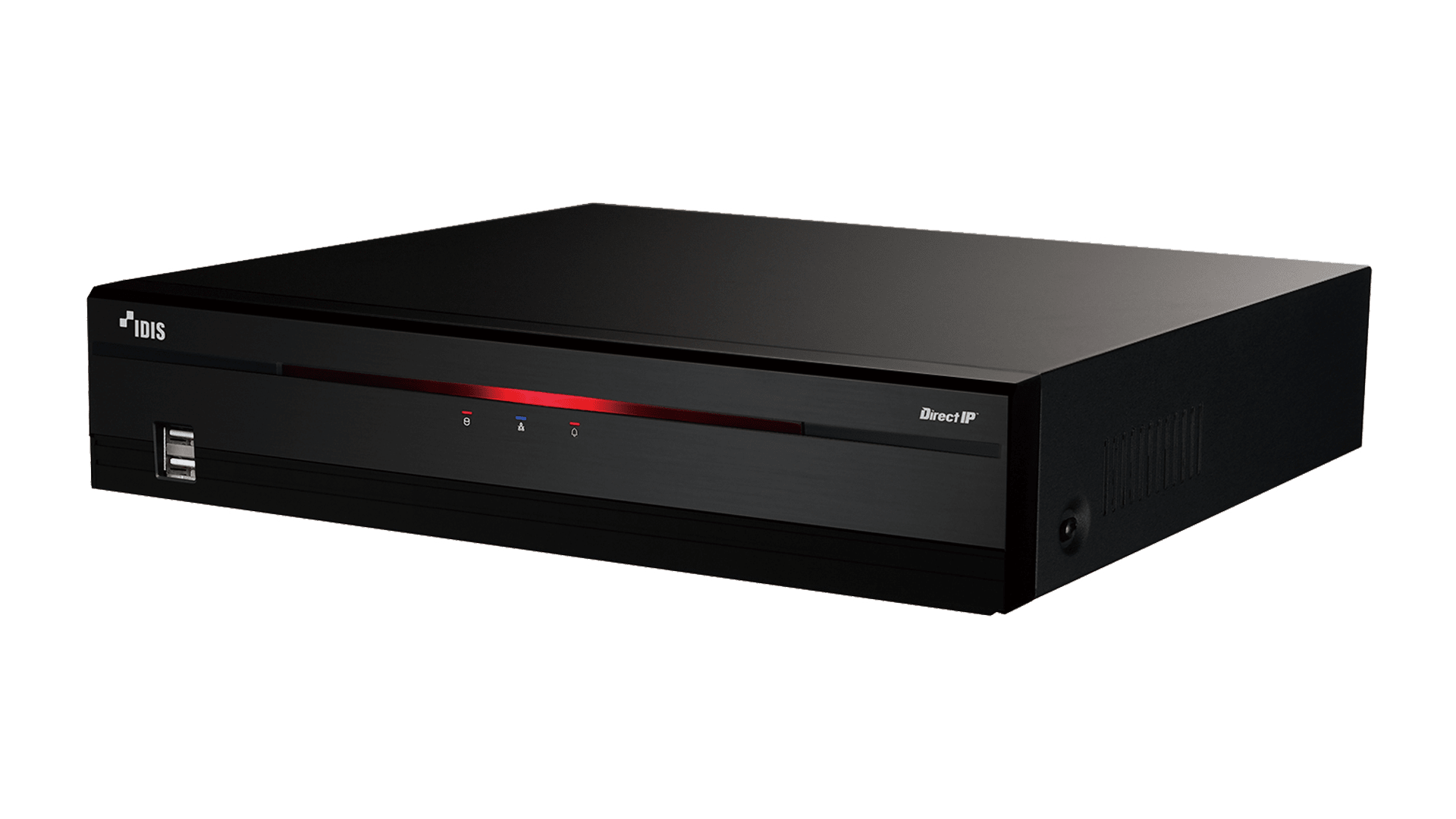

DR-2508P-10TB - DirectIP 2500 Series H.265 4K Recorder - IDIS
Part number:
Price:
- • Total incoming throughput 270Mbps
- • Up to 240ips UHD real-time recording
- • Supports H.265 / H.264 codec
- • Supports UHD display
- • Up to 240ips live display
- • Easy to install, set-up and play with DirectIP™ cameras
- • Built-in 8 channel PoE Switch
- • Supports one click network configuration through FEN service
- • Supports third party cameras (Axis, Panasonic, ONVIF™ )
| Video | |
|---|---|
| Video Inputs | 4 IP channels |
| Max. Incoming Throughput | 160Mbps |
| Supported Camera | DirectIP™, AXIS, PANASONIC, ONVIF™ |
| Video Outputs | 1 HDMI, 1 VGA |
| Display Resolution | HDMI : 3840x2160, 1920 x 1200, 1920 x 1080, 1680 x 1050, 1600 x 1200 VGA : 1920 x 1200, 1920 x 1080, 1680 x 1050, 1600 x 1200 |
| Display Speed | Up to 120ips |
| Digital Zoom | x2 ~ x12 |
| NVR Side Dewarping | - |
| Recording | |
| Max. Throughput | 70Mbps, 120ips@UHD |
| Recording Resolution | Up to 12MP (Depending on IP Camera) |
| Video Compression | H.265, H.264 |
| Recording Mode | Time-Lapse, Event, Pre-Event, Panic |
| Trigger Event | IDLA(Object Detection, Intrusion, Loitering, Line Crossing, Face Detection), BI(Exceed Occupancy Limit, Social Distancing, Mask Rule Violation, Queue Congestion), Motion, Trip-zone, Tampering, Video Loss, Audio Detection, Alarm In, Network Alarm, Text-in, System, Etc. |
| Playback | |
| Performance | 4ch synchronous playback 4ch 4K playback |
| Search Mode | Time-lapse, Event Log, Text-in, Thumbnail, Metadata(via IDIS Center, IDIS Solution Suite) |
| Digital Zoom | x2 ~ x12 |
| Storage | |
| HDD | SATA x 2, eSATA x 1 |
| Total Capacity | 44TB=10TB x 2(Internal) + 6TB x 1x4(External) |
| Network | |
| Client Connection | Gigabit Ethernet(Client) x1 |
| Video In Connection | Fast Ethernet(IP Camera) x4 |
| Transmission Speed | 50Mbps / 100Mbps(BRP Mode) |
| PSE Power | PoE(IEEE 802.3at class 4) supported 4 ports, 50W |
| Event Notification | Email (attach clip (.cbf) .MP4), Callback to Remote S/W, Push notification (IDIS Mobile) |
| Two-way Audio | Yes |
| Interface | |
| Audio In / Out | Local(NVR) : - / 1RCA + 1HDMI IP Camera : 4 / 4 (Depending on IP Camera) |
| Alarm In / Out | Local(NVR) : 4 / 1 IP Camera : 4 / 4 (Depending on IP Camera) |
| Alarm Reset In | - |
| Serial Interface | RS232 (Terminal Block) |
| USB | USB 2.0 x 1, USB 3.0 x 1 |
| User Interface | Mouse, IR Remote Control, Network Remote Keyboard |
| General | |
| Operating System | Embedded Linux |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32℉ ~ 104℉) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Consumption | NVR: 12V=, 2.2A, 26.4W PSE: 48V=, 1.04A, 50W MAX |
| Approval | FCC, CE, KC |
| Mechanical | |
| Unit Dimensions (W x H x D) | 300mm x 62mm x 231 mm (11.8" x 2.4" x 9.1") |
| Unit Weight | 2.2kg (4.9lb) (with 1 HDD) |
Name
Description
Size
Downloads
File
DR-2508P_AnE_Spec_v1.3.docx
0.1mb
File
DR-2508P-A_Datasheet.pdf
0.5mb
This 4-channel 4K NVR features four built-in PoE ports providing 50W to power IP cameras. It records in 4K and supports resolutions up to 12MP, processes AI metadata for object detection and analytics, and offers 4K HDMI output. The system includes two internal HDD bays plus eSATA for storage. It operates from 0°C to 40°C, runs on embedded Linux, and consumes 26.4W (plus 50W for PoE).
