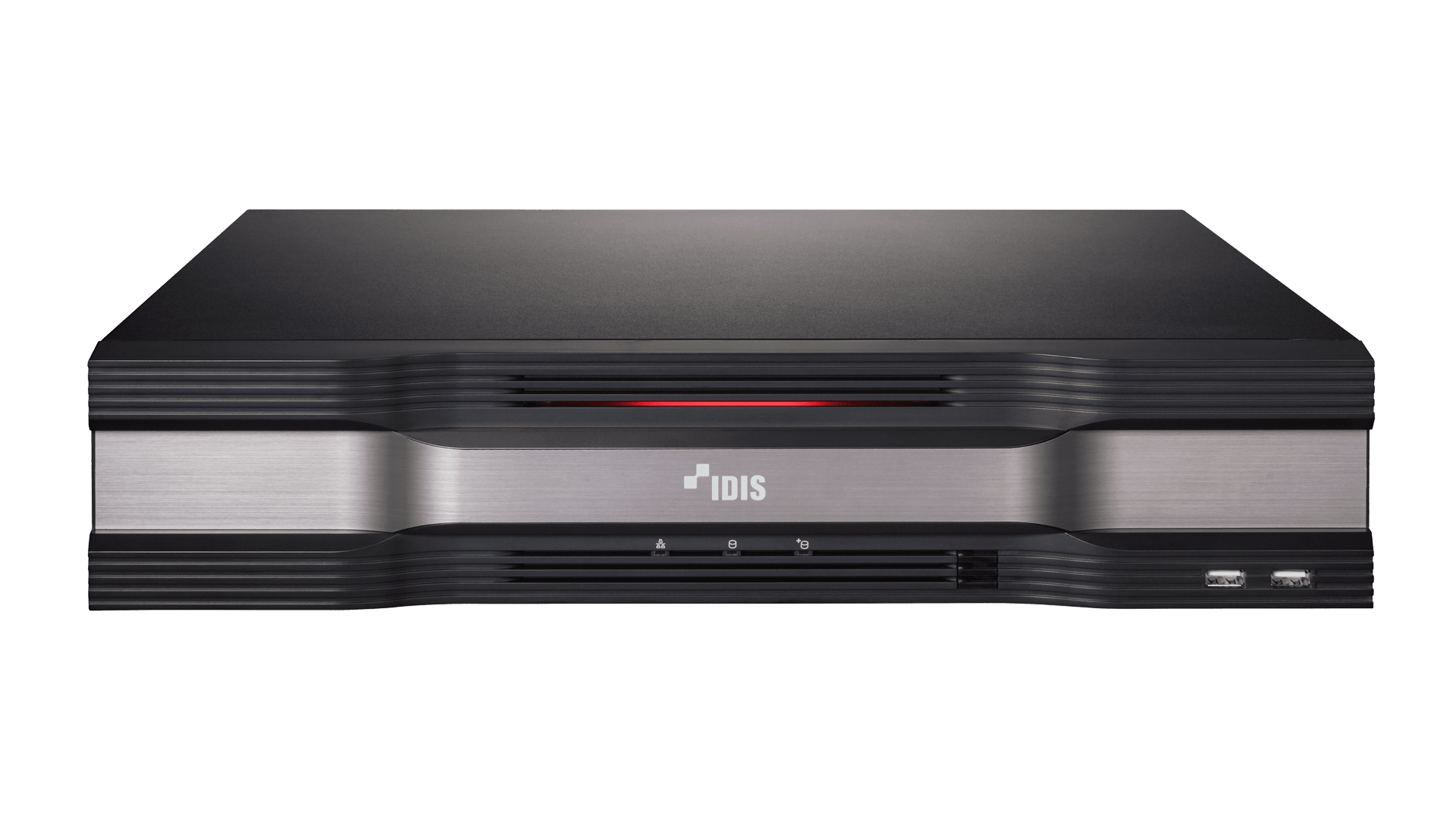

DR-6508P-24TB - DirectIP 6500 Series H.265 4K Recorder - IDIS
Part number:
Price:
- • Total incoming throughput 270Mbps
- • Up to 240ips UHD real-time recording
- • Supports H.265 / H.264 codec
- • Supports UHD display
- • Up to 240ips live display
- • Easy to install, set-up, and play with DirectIP cameras
- • Built-in 8 channel PoE Switch
- • Expandable up to 252TB using eSATA storage
- • Supports RAID 1
- • Supports one click network configuration through FEN service
- • Supports third party cameras (Axis, Panasonic, ONVIF)
- • NDAA Compliance
| Video | |
|---|---|
| Video Inputs | 8 IP Channels |
| Max. Incoming Throughput | 270Mbps |
| Supported Camera | DirectIP, AXIS, PANASONIC, ONVIF |
| Video Outputs | 2 HDMI |
| Display Resolution | HDMI : 3840x2160, 1920 x 1200, 1920 x 1080, 1680 x 1050, 1600 x 1200 |
| Display Speed | Up to 240ips |
| Digital Zoom | x2 ~ x12 |
| NVR Side Dewarping | Yes |
| Recording | |
| Max. Throughput | 140Mbps, 240ips@UHD |
| Recording Resolution | Up to 12MP (Depending on IP Camera) |
| Video Compression | H.265, H.264 |
| Recording Mode | Time-lapse, Event, Pre-event, Panic |
| Trigger Event | IDLA(Object Detection, Intrusion, Loitering, Line Crossing, Face Detection), BI(Exceed Occupancy Limit, Social Distancing, Mask Rule Violation, Queue Congestion), Motion, Trip-zone, Tampering, Video Loss, Audio Detection, Alarm In, Network Alarm, Text-in, System, Etc. |
| Playback | |
| Performance | 8ch synchronous playback |
| Search Mode | Time-lapse, Event Log, Text-in, Thumbnail, Metadata(via IDIS Center, IDIS Solution Suite) |
| Digital Zoom | x2 ~ x12 |
| Storage | |
| HDD | SATA x 6, eSATA x 4, RAID 1 Supported |
| Total Capacity | 252TB=10TB x 6(Internal) + 12TB x4x4(External) |
| Network | |
| Client Connection | Gigabit Ethernet (Client) x1 |
| Video In Connection | Gigabit Ethernet(IP Camera) x8 +Gigabit Ethernet(Ext) x1 |
| Transmission Speed | 50Mbps / 100Mbps (BRP Mode) |
| PSE Power | PoE (IEEE 802.3at Class 4) Supported 8 Ports, 120W |
| Event Notification | Email (Attach Clip (.cbf) .MP4), Callback to Remote S/W, Push Notification (IDIS Mobile) |
| Two-way Audio | Yes |
| Interface | |
| Audio In / Out | Local (NVR) : 1 RCA / 1RCA + 2HDMI IP Camera : 8 / 8 (Depending on IP Camera) |
| Alarm In / Out | Local(NVR) : 4 / 1 IP Camera : 8 / 8 (Depending on IP Camera) |
| Alarm Reset In | Yes |
| Serial Interface | RS232 (Terminal Block), RS485 (Terminal Block) |
| USB | USB 2.0 x 2, USB 3.0 x 1 |
| User Interface | Mouse, IR Remote Control, Network Remote Keyboard |
| General | |
| Operating System | Embedded Linux |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32℉ ~ 104℉) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Consumption | 100-240V~, 50/60Hz, 3.0-1.5A, 250W |
| Approval | FCC, UL, CE, CB |
| Mechanical | |
| Unit Dimensions (W x H x D) | 430mm x 88mm x 412.8mm (16.9" x 3.5" x 16.25") |
| Unit Weight | 6.75kg (14.88lb) (with 1HDD) |
Name
Description
Size
Downloads
File
DR-6508P_AnE_Spec_v1.3_4.docx
0.1mb
File
DR-6508P_Datasheet.pdf
0.5mb
This is an 8-channel professional NVR with advanced processing and high storage capacity. It supports a wide range of IP cameras and features NVR Side Dewarping to correct fisheye video. It includes eight high-power PoE ports IEEE 802.3at providing 120 watts total for cameras. The system processes AI metadata for analytics like object and face detection, records up to 12MP video, and offers dual 4K HDMI outputs. It provides massive storage via six internal HDD bays and four eSATA ports, operates from 0°C to 40°C, and consumes up to 250 watts.
