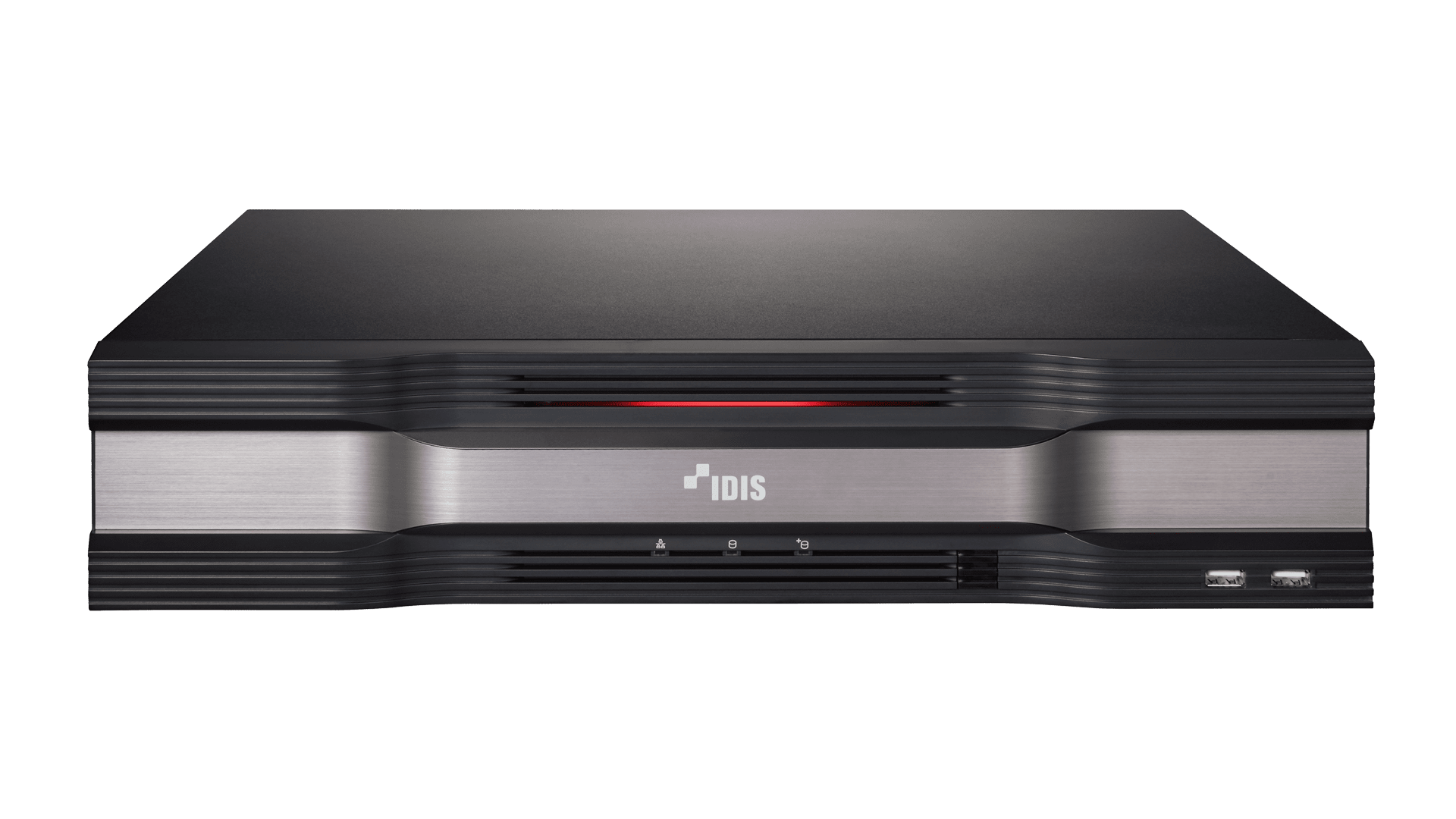

DR-6508P-4TB - DirectIP 6500 Series H.265 4K Recorder - IDIS
- • Total incoming throughput 270Mbps
- • Up to 240ips UHD real-time recording
- • Supports H.265 / H.264 codec
- • Supports UHD display
- • Up to 240ips live display
- • Easy to install, set-up, and play with DirectIP cameras
- • Built-in 8 channel PoE Switch
- • Expandable up to 252TB using eSATA storage
- • Supports RAID 1
- • Supports one click network configuration through FEN service
- • Supports third party cameras (Axis, Panasonic, ONVIF)
- • NDAA Compliance
| Video | |
|---|---|
| Video Inputs | 8 IP Channels |
| Max. Incoming Throughput | 270Mbps |
| Supported Camera | DirectIP, AXIS, PANASONIC, ONVIF |
| Video Outputs | 2 HDMI |
| Display Resolution | HDMI : 3840x2160, 1920 x 1200, 1920 x 1080, 1680 x 1050, 1600 x 1200 |
| Display Speed | Up to 240ips |
| Digital Zoom | x2 ~ x12 |
| NVR Side Dewarping | Yes |
| Recording | |
| Max. Throughput | 140Mbps, 240ips@UHD |
| Recording Resolution | Up to 12MP (Depending on IP Camera) |
| Video Compression | H.265, H.264 |
| Recording Mode | Time-lapse, Event, Pre-event, Panic |
| Trigger Event | IDLA(Object Detection, Intrusion, Loitering, Line Crossing, Face Detection), BI(Exceed Occupancy Limit, Social Distancing, Mask Rule Violation, Queue Congestion), Motion, Trip-zone, Tampering, Video Loss, Audio Detection, Alarm In, Network Alarm, Text-in, System, Etc. |
| Playback | |
| Performance | 8ch synchronous playback |
| Search Mode | Time-lapse, Event Log, Text-in, Thumbnail, Metadata(via IDIS Center, IDIS Solution Suite) |
| Digital Zoom | x2 ~ x12 |
| Storage | |
| HDD | SATA x 6, eSATA x 4, RAID 1 Supported |
| Total Capacity | 252TB=10TB x 6(Internal) + 12TB x4x4(External) |
| Network | |
| Client Connection | Gigabit Ethernet (Client) x1 |
| Video In Connection | Gigabit Ethernet(IP Camera) x8 +Gigabit Ethernet(Ext) x1 |
| Transmission Speed | 50Mbps / 100Mbps (BRP Mode) |
| PSE Power | PoE (IEEE 802.3at Class 4) Supported 8 Ports, 120W |
| Event Notification | Email (Attach Clip (.cbf) .MP4), Callback to Remote S/W, Push Notification (IDIS Mobile) |
| Two-way Audio | Yes |
| Interface | |
| Audio In / Out | Local (NVR) : 1 RCA / 1RCA + 2HDMI IP Camera : 8 / 8 (Depending on IP Camera) |
| Alarm In / Out | Local(NVR) : 4 / 1 IP Camera : 8 / 8 (Depending on IP Camera) |
| Alarm Reset In | Yes |
| Serial Interface | RS232 (Terminal Block), RS485 (Terminal Block) |
| USB | USB 2.0 x 2, USB 3.0 x 1 |
| User Interface | Mouse, IR Remote Control, Network Remote Keyboard |
| General | |
| Operating System | Embedded Linux |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32℉ ~ 104℉) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Consumption | 100-240V~, 50/60Hz, 3.0-1.5A, 250W |
| Approval | FCC, UL, CE, CB |
| Mechanical | |
| Unit Dimensions (W x H x D) | 430mm x 88mm x 412.8mm (16.9" x 3.5" x 16.25") |
| Unit Weight | 6.75kg (14.88lb) (with 1HDD) |
This is an 8-channel high-performance Network Video Recorder engineered for professional-grade surveillance with extensive storage and advanced features. It supports a wide range of IP cameras via DirectIP, ONVIF, and third-party protocols and includes eight integrated Power over Ethernet ports compliant with IEEE 802.3at, Class 4, providing a substantial 120 watts of total power to connected devices. A key functionality is its NVR Side Dewarping, which allows the unit to process and correct distorted fisheye video feeds from compatible cameras into standard rectilinear views.
The NVR is built to handle intelligent video data, processing AI metadata to enable Intelligent Deep Learning Analytics for object detection, intrusion, loitering, line crossing, and face detection, as well as Business Intelligence rules for occupancy and social distancing monitoring. It records video at resolutions up to 12 Megapixels with a maximum throughput of 140 Mbps and provides dual 4K Ultra High Definition HDMI outputs for live viewing at up to 240 images per second. It boasts exceptional storage capabilities with six internal SATA hard drive bays and four eSATA ports for massive expansion, supporting RAID 1 data protection.
