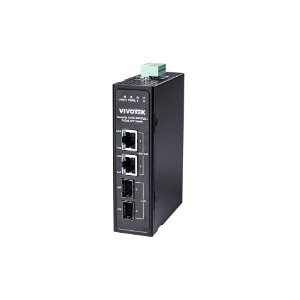

Vivotek - AW-IHB-0400 - Industrial 2 x 90W bt PoE + 2 x SFP Switch
Part number:
AW-IHB-0400
Price:
Industrial 2 x 90W bt PoE + 2 x SFP Switch
Features:
- IEEE 802.3bt 90W PoE
- Gigabit Ethernet
- Surge Protection 6 KV
- -40°C ~ 75°C
| Networking Specifications | |
| Gigabit Ethernet 10/100/1000Mbps (RJ45) | 2 |
| Gigabit Ethernet 100/1000Mbps (SFP) | 2 |
| Ethernet Performance | |
| Switching Bandwidth | 8 Gbps |
| Mac Table | 4 K |
| Buffer Memory | 128 KB |
| Forwarding Capacity | 11.904 Mpps |
| Jumbo Frame | 9 KB |
| Transmission Method | Store and Forward |
| Auto-MDI/MDI-X, Auto-Negotiation | Supported |
| Standards |
| IEEE 802.3 10-BASE-T (Ethernet) | Supported |
| IEEE 802.3u 100-BASE-TX (Fast Ethernet) | Supported |
| IEEE 802.3ab 1000-BASE-T (Gigabit Ethernet) | Supported |
| IEEE 802.3z 1000-BASE-X (Gigabit Ethernet) | Supported |
| IEEE 802.3af/at/bt Power over Ethernet | Supported |
| IEEE 802.3az Energy Efficient Ethernet Standard | Supported |
| Power Specifications | |
| Power Input | PW1: 48~56VDC for 30W 802.3af/at 52~56VDC for 90W 802.3bt PW2: 48~56VDC for 30W 802.3af/at 52~56VDC for 90W 802.3bt Redundant Power Backup |
| Number of PoE Out Ports | 2 x 90W bt PoE |
| Max. PoE Output Power/per Port | 54VDC/90W |
| Total PoE Power Budget | 180W |
| Max. Power Consumption | 185W |
| PoE Pin Assignment | 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| PoE PD Auto Detection | Supported |
| Over Current Protection | Supported |
| Circuit Shorting Protection | Supported |
| Surge Protection/per PoE Port | 6KV |
| General | |
| Mounting | DIN Rail/Wall Mount |
| Operating Temperature | -40°C ~ 75°C (-40°F ~ 167°F) |
| Storage Temperature | -40°C ~ 85°C (-40°F ~ 185°F) |
