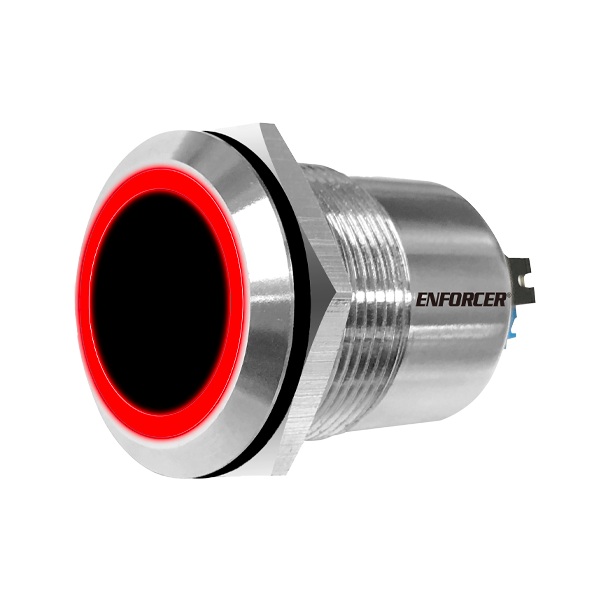

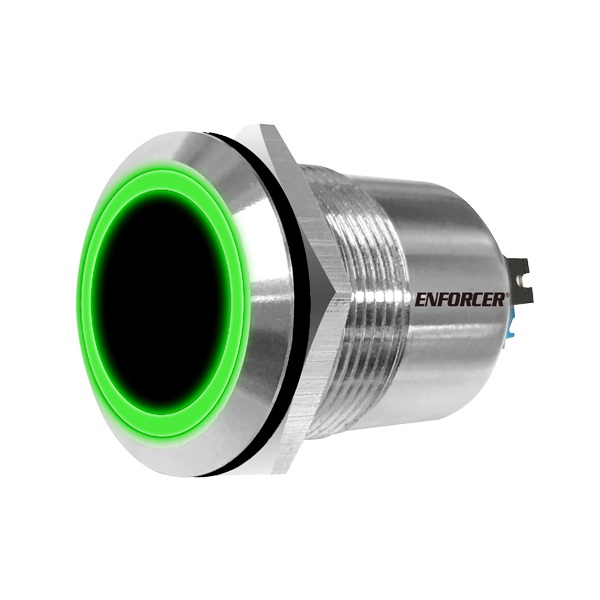

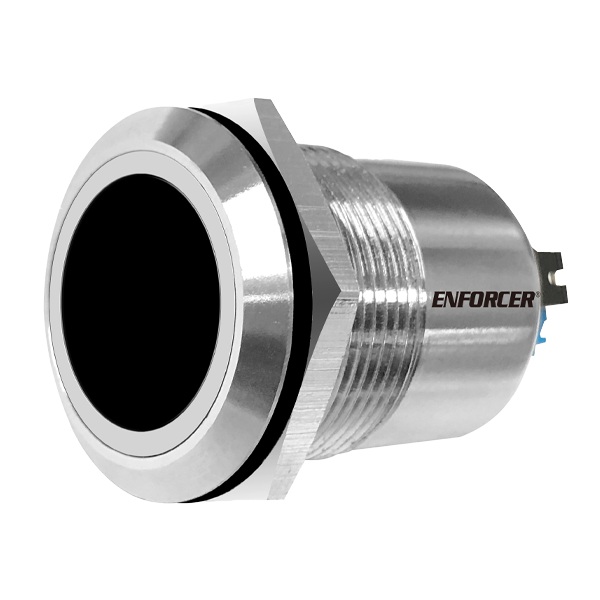

ENFORCER IR Proximity Sensors are compact and can be programmed to unlock an electronic door lock when an object (such as a hand) is passed in front of the sensor or trigger an alarm when an object (such as a valuable possession) is removed from the sensing area. This flexibility makes ideal for both anti-theft and access control applications.
Features:
| Operating Voltage | 12~24 VDC |
| Relay Type | Form C dry contact, NO/NC/COM, 1A@24VDC, 0.5A@12VAC |
| Response Time | 10mS |
| Output Time | 0.5~20s, toggle |
| Range | 1-9/16″~6″ (4~15cm) |
| IP Rating | Weatherproof IP65* |
| Operating Temperature | -4°~131° F (-20°~55° C) |

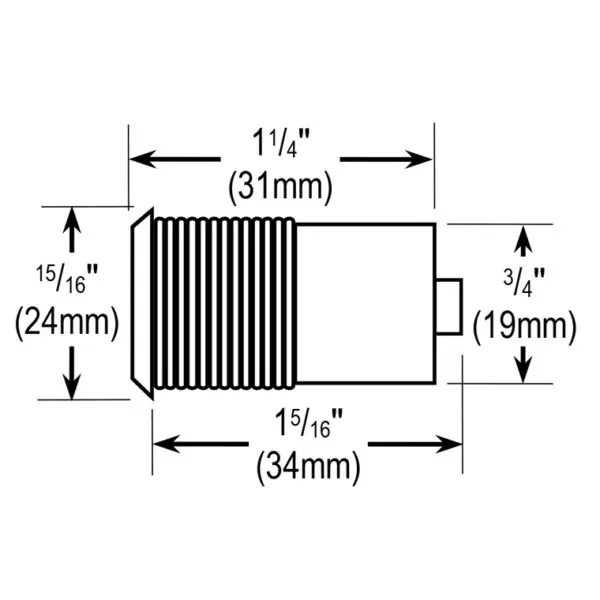

| Dimensions | ø3/4″ (ø19mm) |
