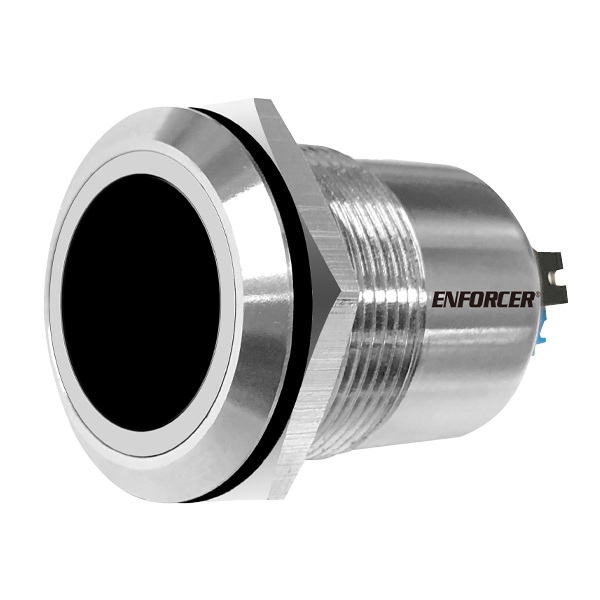

SECO-LARM - CS-PD422-PQ - Infrared Proximity Sensor – 22mm, Stainless steel

ENFORCER IR Proximity Sensors are compact and can be programmed to unlock an electronic lock when an object (such as a hand) passes in range of the sensor or trigger an alarm when an object is removed from the sensing area making them useful for both anti-theft and access control.

Features:

• ETL, Conforms to UL Std. 294
• No-touch reduces the risk of spread of germs, viruses, etc., through cross-contamination
• Triggers a warning or locking device when the sensor is triggered
• Form C relay output (1A@30VDC), adjustable output duration (0.5~30 s) or toggle
• Adjustable sensor range, up to 7″ (18cm)

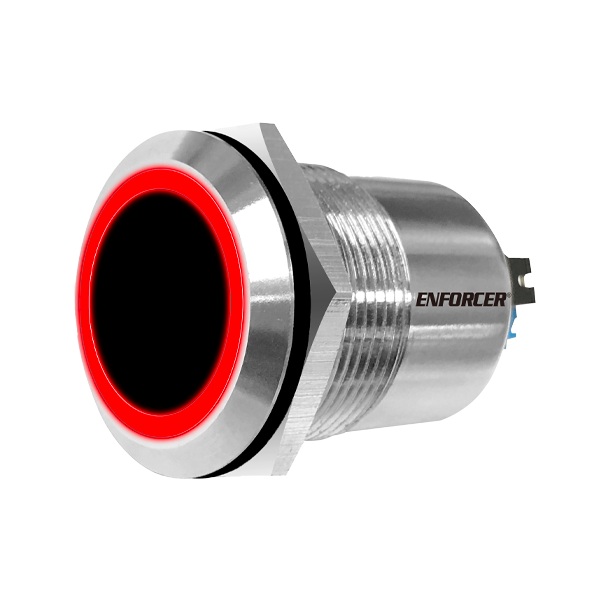

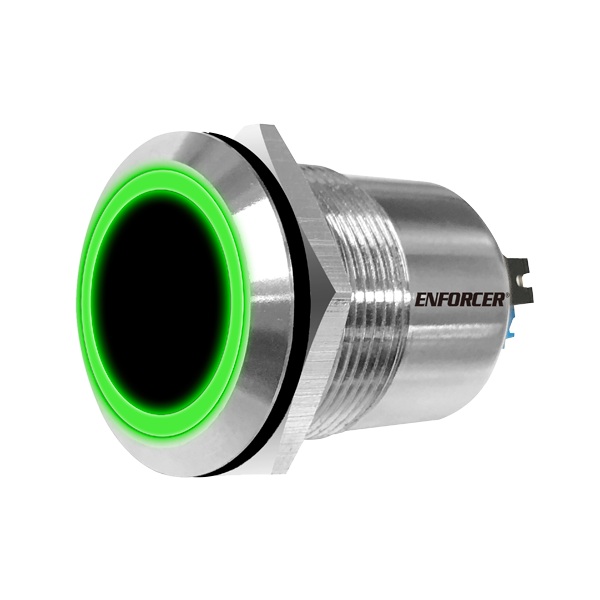

• Selectable LED colors (turns from red to green or green to red on activation)*
• 12~24 VDC Operation
• Filters out interference from other infrared sources
• Weatherproof front panel (IP65)†
• Power must be provided by low-voltage power-limited/Class 2 power supply
• Use only low-voltage field wiring and do not exceed 98.5 ft (30m)
