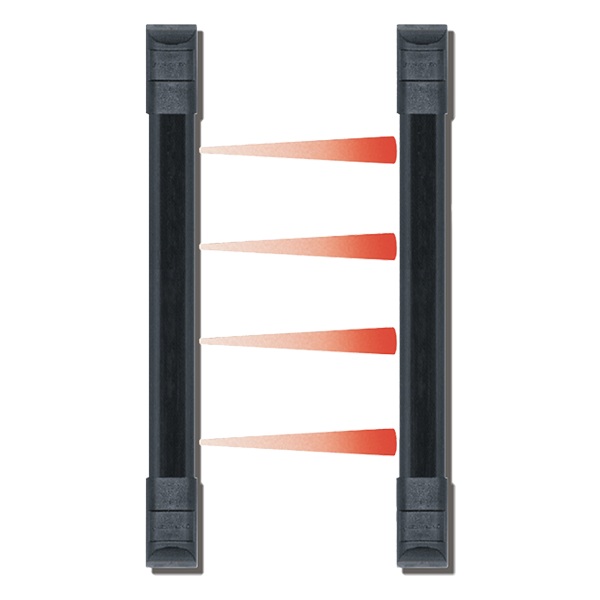

SECO-LARM - E-9622-4B25 - IR Curtain Sensors for Indoor/Outdoor Access Control, 25ft
Part number:
E-9622-4B25
Price:

ENFORCER infrared photobeam curtain/barrier sensors are perfect for installation in windows, doorways, skylights, fence tops, any place where space is limited. Suitable for indoor and outdoor perimeter security, the trigger is programmable for simultaneous breaking of any single or 2 adjacent beams. The design features rugged aluminum construction, and an anti-tamper circuit for triggering an alarm if power is cut or the end cap is removed. No synchronizing wires are required and the LED alignment indicator makes installation easy. Mounting hardware is included.



Features:

  • Rugged aluminum construction
  • LED alignment indicator
  • No synchronizing wires required
  • NO/NC relay output
  • Weather-resistant IP54 construction
  • Slimline design (7/8″ x 1-5/16″ cross section)
  • Trigger by simultaneously breaking 2 adjacent beams or any single beam (programmable)
  • For windows, doorways, etc., where space is limited
  • Mounting hardware included
  • Multi-Frequency: Reduces interference and eliminates crosstalk when multiple units are used in close proximity to one another
TypeIR Curtain Sensors for Indoor/Outdoor Access Control
Current DrawStandby – 89mA, Active – 73mA
Number of Beams4
Sensing RangeUp to 25′ (8m) outdoor, 50′ (16m) indoor
Operating Voltage12~24VDC
Reaction time0.5~32.5 ms
Detection SystemSimultaneous break of 2 adjacent beams or any single beam (programmable)
LEDs(On): powered, aligned properly, (Flash): when beam is broken, (Off): no power
Case materialWeather-resistant IP54 / Aluminum alloy
OutputNO/NC relay output, 1A @ 12~24VDC
Operating Temperature-49º~131º F (-45º~55º C)
Dimensions22-1/2″ x 1-5/16″ x 7/8″ (572 x 33 x 22 mm) [Length x Width x Height]
