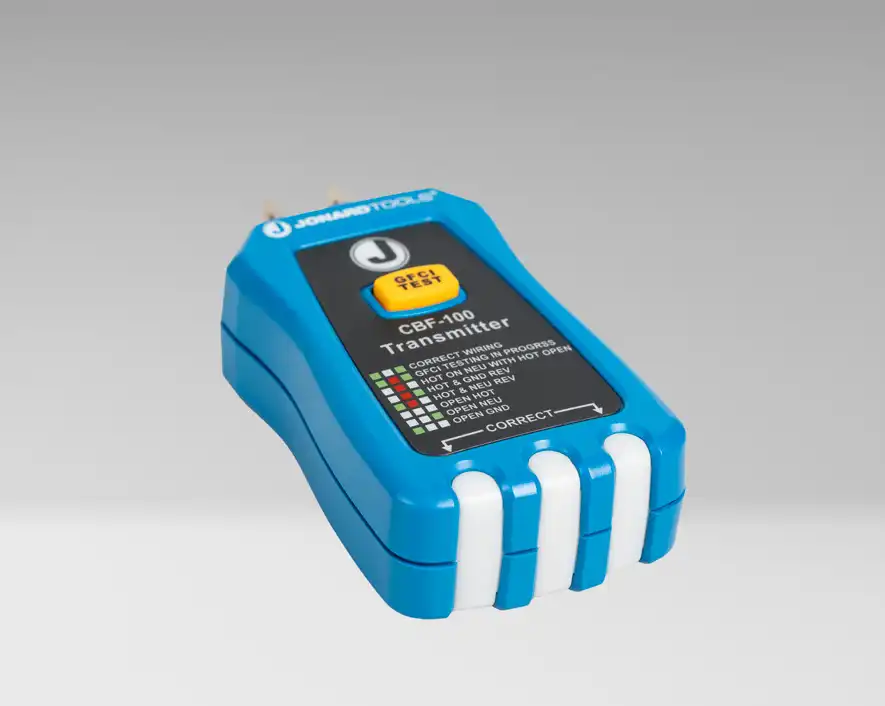

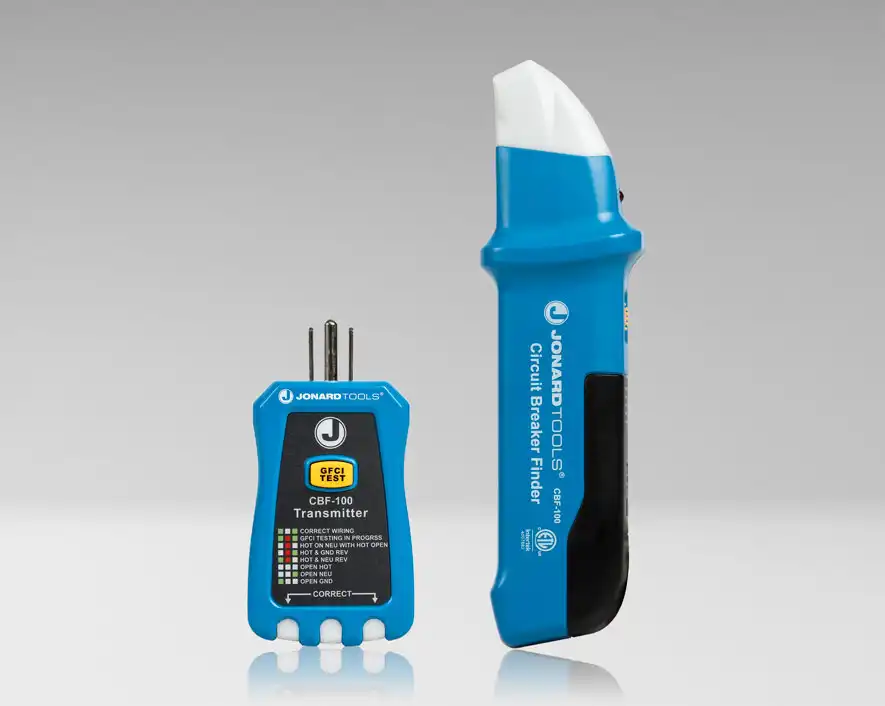

Jonard - CBF-100 - Circuit Breaker Finder with GFCI Tester
Part number:
Price:
- • Find the outlet and trace it back to its individual breaker.
- • The manually adjustable sensitivity allows you to find a breaker quickly and easily.
- • The easy-to-read lights make it simple to identify faults.
- • It has a durable, hard shell that is built to withstand a drop of up to 2 metres.
- • Nominal voltage: 110/125 V AC at 50/60 Hz in a three-wire outlet.
- • It works on GFCI outlets and confirms the operation of the ground fault protective device.
| Standards | ETL |
| Dimensions | Transmitter: 103x56x30mm Receiver: 196x54x28mm |
| Weight | Transmitter: 80g Receiver: 133g |
| Total Weight | 0.58 lb (261.504 g) |
Name
Description
Size
Downloads
File
Data Sheet_Circuit_Breaker_Finder_Tester_CBF-100.pdf
0.8mb
This is an AC circuit breaker tracer designed for residential and light commercial electrical systems. It operates on a nominal voltage of 110/125 V AC at 50/60 Hz and is specifically built to function with three-wire outlets, including GFCI outlets where it can also verify the ground fault protection is operational. The tracer locates individual circuit breakers by connecting to an outlet and transmitting a signal through the wiring. It features manually adjustable sensitivity for precise tracing and uses a clear visual indicator (easy-to-read lights) to confirm the correct breaker. The device is housed in a durable, impact-resistant shell rated to withstand drops from up to 2 meters.
