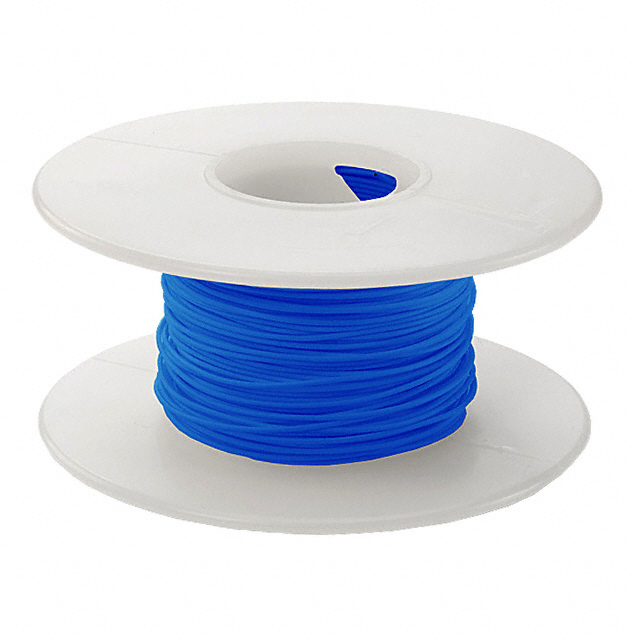

Jonard - KSW26B-0100 - Wire 26Awg Blue 100 FT CSW
Part number:
Price:
- • Low strip-force Kynar insulation is further processed to provide a low strip force for use with CSW bits and sleeves (RoHS Compliant)
- • OHFC (oxygen-free high conductivity) silver-plated copper conductor provides exceptional electrical conductivity and flexibility
- • Kynar insulation provides high temperature resistance (up to 105°C) and excellent abrasion resistance
- • Meets or exceeds UL 1422 standards
| Packaging | Spool |
| Part Status | Active |
| Wire Gauge | 26 AWG |
| Conductor Diameter | 0.016" (0.40mm) |
| Length | 100' (30.5m) |
| Jacket (Insulation) Material | Polyvinylidene Fluoride (PVDF) |
| Jacket (Insulation) Diameter | 0.027" (0.69mm) |
| Conductor Material | Copper, Bare |
| Conductor Plating | Silver |
| Jacket Color | Blue |
| Ratings | UL Style 1422 |
| Features | - |
| Operating Temperature | 105°C |
| Jacket (Insulation) Thickness | 0.005" (0.13mm) |
Name
Description
Size
Downloads
File
Data Sheet - Kynar Wire_54.pdf
1.3mb
File
KSW24 - Wire Specifications.pdf
0mb
Kynar wire is typically used where flexibility, strength and low weight are required. It is ideally suited to wire wrapping, power supplies, medical applications and aerospace. Its lighter weight and smaller overall diameter also make it ideal for circuit board prototyping. Kynar insulation also provides excellent mechanical properties over a large temperature range, and is resistant to a wide variety of chemicals, including most inorganic and organic acids, bases, alcohols, halogenated solvents, and aliphatic and aromatic hydrocarbons. These properties make Kynar wire an excellent choice for use in even the harshest environmental conditions.
