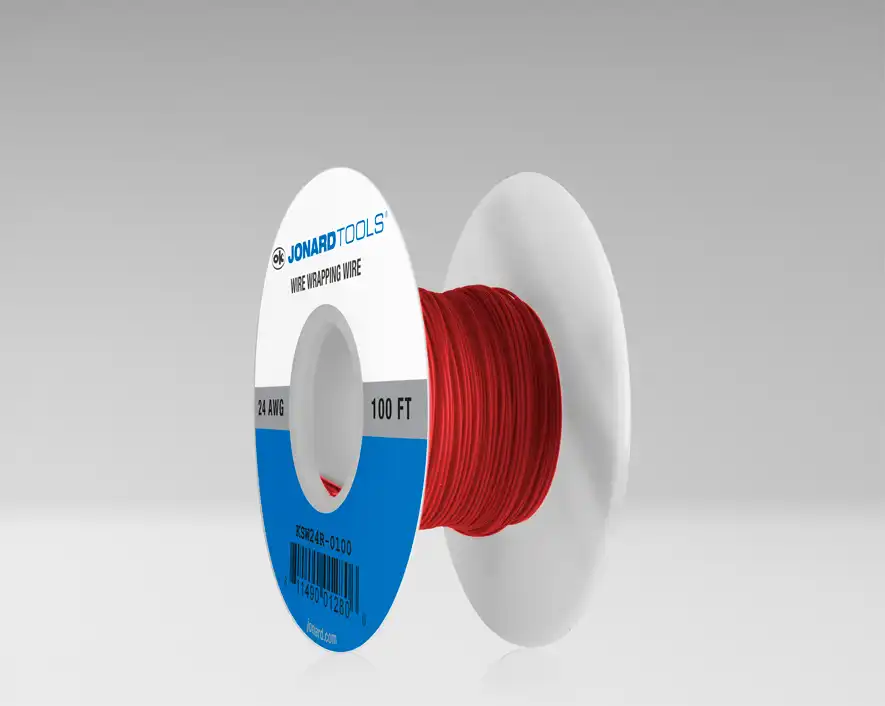

Jonard - KSW24R-0100 - 24 AWG Kynar Wire CSW
Part number:
Price:
- • Low strip-force Kynar insulation is further processed to provide a low strip force for use with CSW bits and sleeves (RoHS Compliant)
- • OHFC (oxygen-free high conductivity) silver-plated copper conductor provides exceptional electrical conductivity and flexibility
- • Kynar insulation provides high temperature resistance (up to 105°C) and excellent abrasion resistance
- • Meets or exceeds UL 1422 standards
| Insulation Type | Low Strip Force Kynar |
| Insulation Thickness | 0.004" (0.102 mm) |
| Wire Gauge | 24 AWG (0.5 mm) |
| Overall Diameter | 0.030" (0.76 mm) |
| Standards | UL 1422 |
| Voltage | Not Rated |
| Reel Length | 100 ft. (30.48 meters) |
| Dimensions | 2 in x 2 in x 1 in (5.08 cm x 5.08 cm x 2.54 cm) |
| Weight | 0.19 lb (86.26 g) |
Name
Description
Size
Downloads
File
Data Sheet - Kynar Wire.pdf
1.3mb
File
KSW24 - Wire Specifications_.pdf
0mb

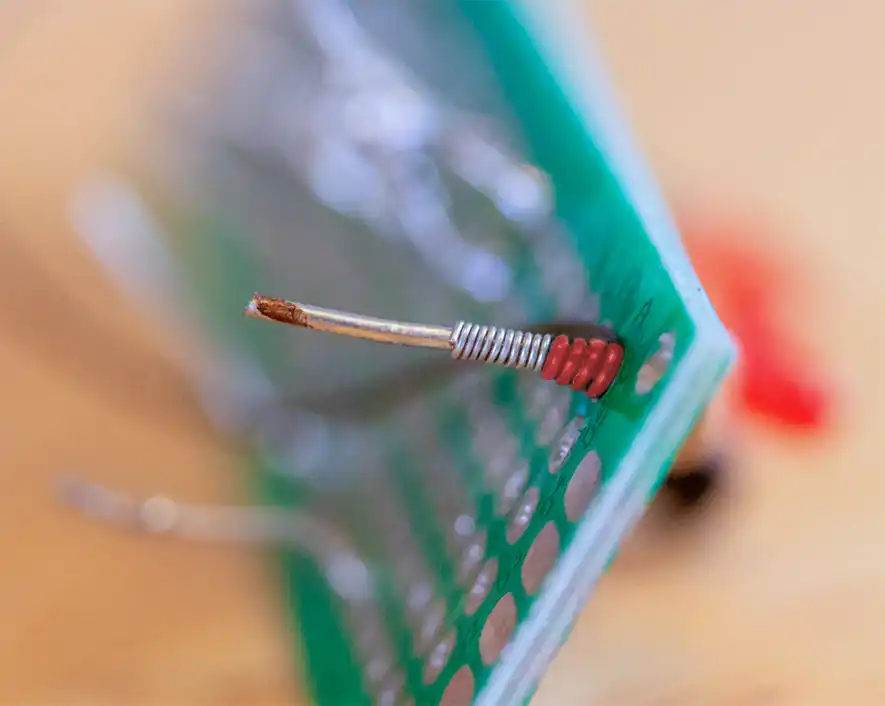

Kynar wire is typically used where flexibility, strength and low weight are required. It is ideally suited to wire wrapping, power supplies, medical applications and aerospace. Its lighter weight and smaller overall diameter also make it ideal for circuit board prototyping. Kynar insulation also provides excellent mechanical properties over a large temperature range, and is resistant to a wide variety of chemicals, including most inorganic and organic acids, bases, alcohols, halogenated solvents, and aliphatic and aromatic hydrocarbons. These properties make Kynar wire an excellent choice for use in even the harshest environmental conditions.
