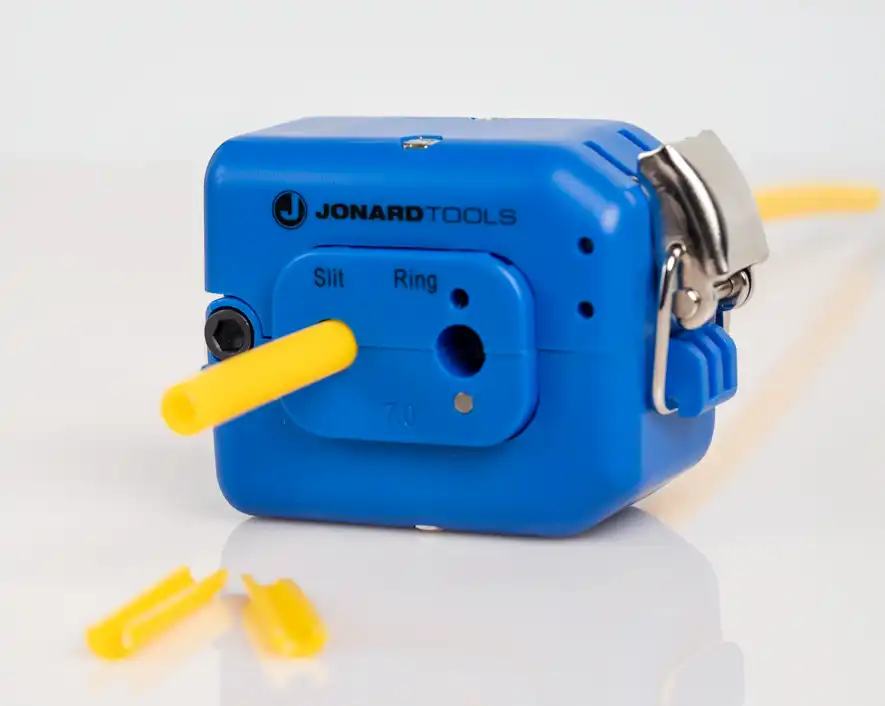

Jonard - MS-D7 - Microduct Slit and Ring Tool 7 mm
Part number:
Price:
- • Includes a cartridge to slit and ring 7 mm diameter (3 mm thickness) microducts without damaging the microducts or fibers inside
- • Compact design weighing less than 6 oz with included tethering hole makes it perfect to use in tight spaces or on the go

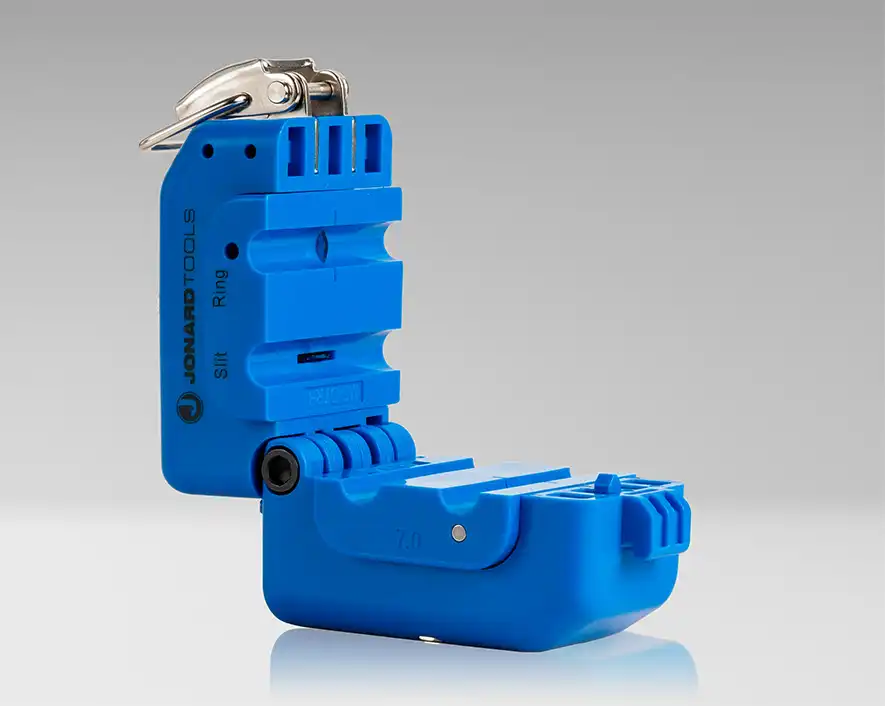

- • Magnetic cartridges can be swapped out easily

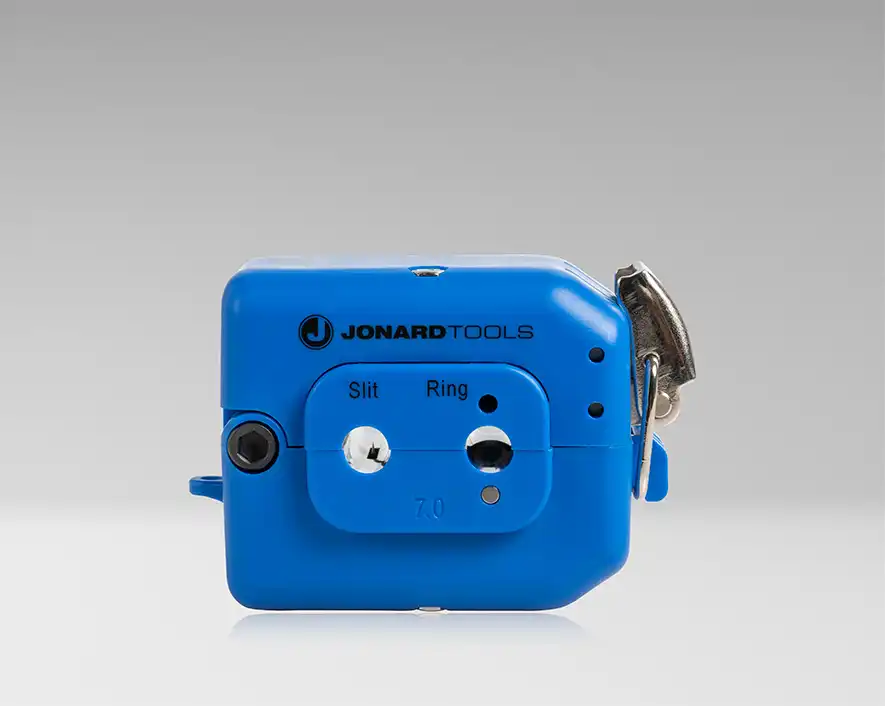

- • Indicator line on top of the unit indicates the position of the blade for accurate slitting and ringing
- • Blades last up to 5,000 slits/cuts All of our MS Series Mid Span Tools are patented for their unique design and functionality.
| Cut Type | Slit & Ring |
| Number of Cartridges | 1 |
| Duct Thickness | 3 mm |
| Duct Diameter | 7 mm |
| Dimensions | 3 in x 2 in x 1 in (7.62 cm x 5.08 cm x 2.54 cm) |
| Weight | 0.28 lb (127.12 g) |
Name
Description
Size
Downloads
File
Data Sheet - Microduct Slit and Ring Tool, 7 mm - MS-D7.pdf
0.5mb
This microduct slit and ring tool kit is designed to provide easy access to optical fibres in 7 mm microducts. It is perfect for opening ducts without damaging the fibres or microducts inside.
