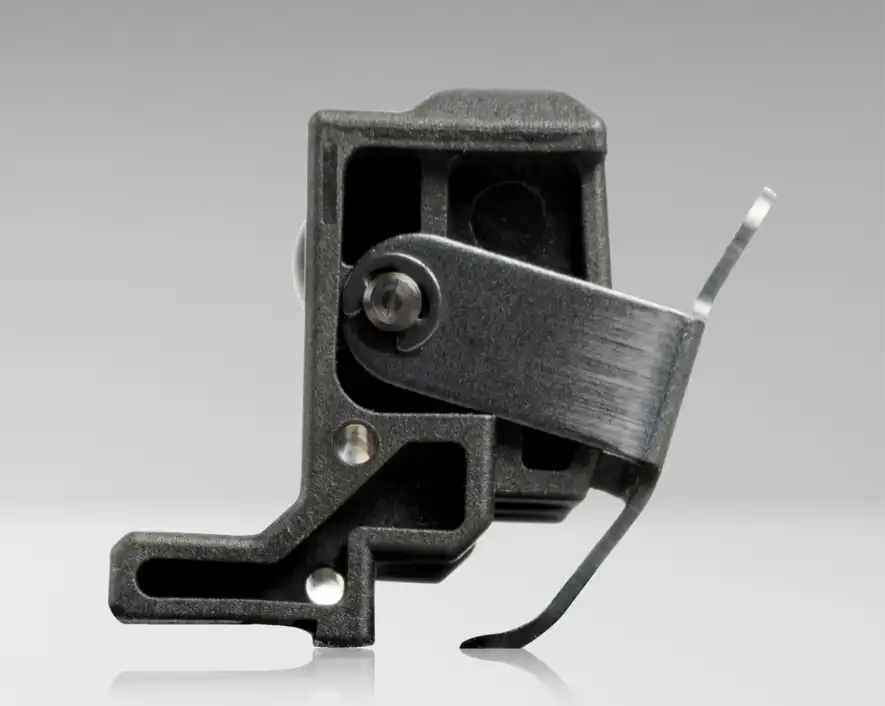

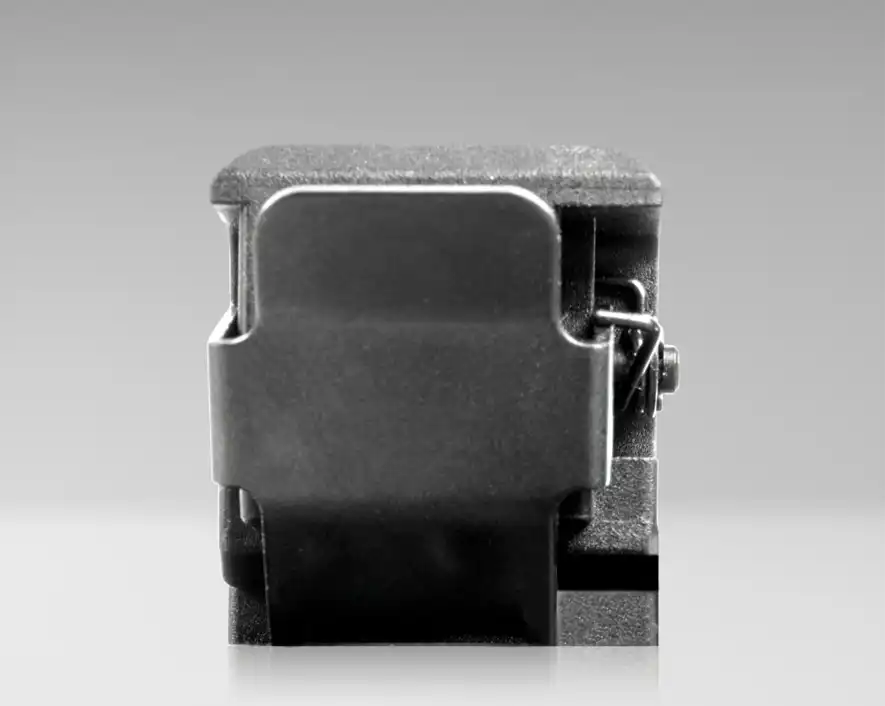

Jonard - SPL-MC4 - Solar Panel Crimper Locator for MC4 Dies
Part number:
Price:
- • Two holes for holding MC4 connectors in sizes 2.5/4/6 and 10 mm².
- • The spring-loaded clip design holds the connectors in place during the crimping process.
- • Compatible with SPC-MC4L and SPC-MC4 solar panel crimpers (for 4/6 mm² MC4 connectors only).
- • Lifetime warranty
| Application Type | MC4 Solar Panel Crimping Locator |
| Connector Type | MC4 Male/Female Solar Panel Connectors |
| Wire Diameter | 14, 12, or 10 AWG or (2.5 / 4.0 / 6 / 10 mm²) |
| Material | Carbon Steel with Black Oxide |
| Dimensions | 1.3" x 1.02" x 1.14" (3.3 cm x 2.59 cm x 2.9 cm) |
| Weight | 0.04 lb (18.1 g) |
Name
Description
Size
Downloads
File
Data Sheet - Solar Panel Crimper Locator - SPL-MC4.pdf
0.5mb
