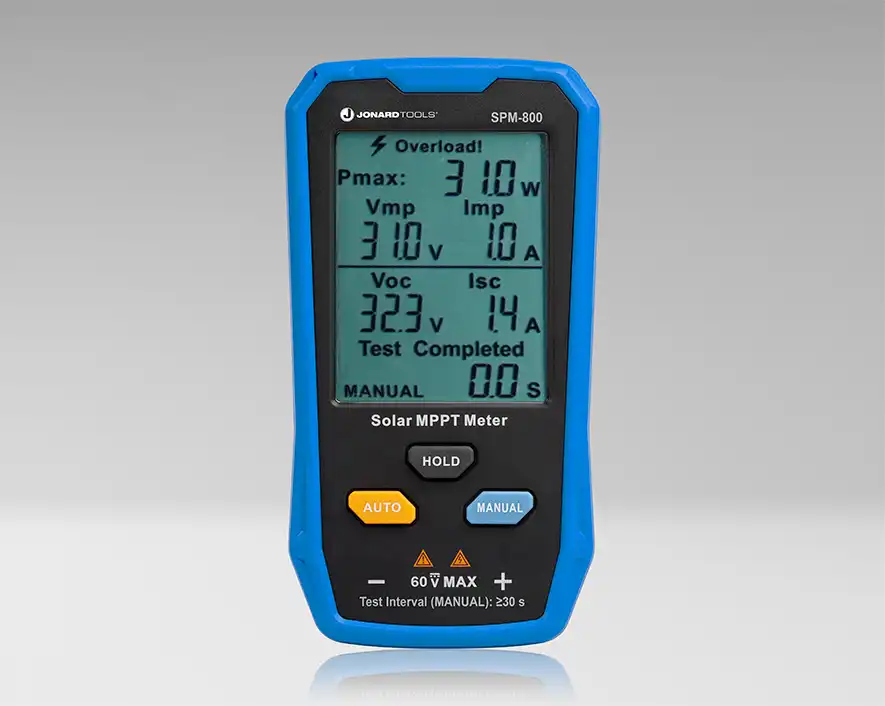

- • Accurately measures and monitors the efficiency of solar panels, performing tests for maximum power, peak power voltage, peak power current, open circuit voltage, and short circuit current.

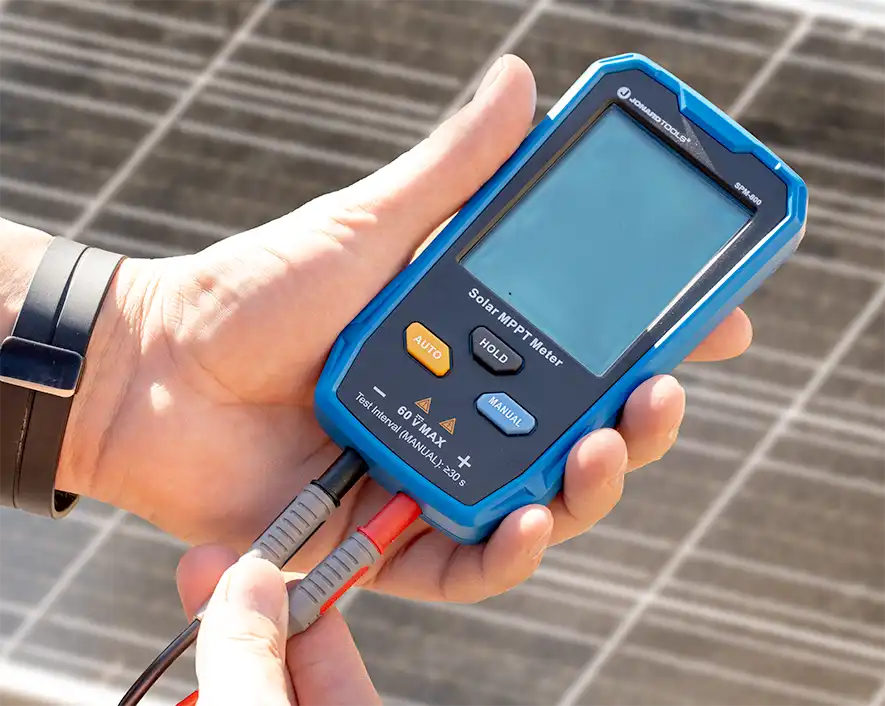

- • Equipped with MC4 leads to quickly and easily verify the energy production and efficiency of solar panels.
- • Features a clear, easy-to-read LCD display with intuitive controls, making it simple to operate and interpret data in real-time.
- • Compatible with a wide range of solar panels using MC4 leads, making it a versatile tool for both residential and commercial solar installations.
- • Compact design and lightweight structure make it easy to carry and use in various field conditions.
- • Designed with built-in safety protections, such as over-voltage, over-current, and reverse polarity protection, to ensure safe operation during testing.

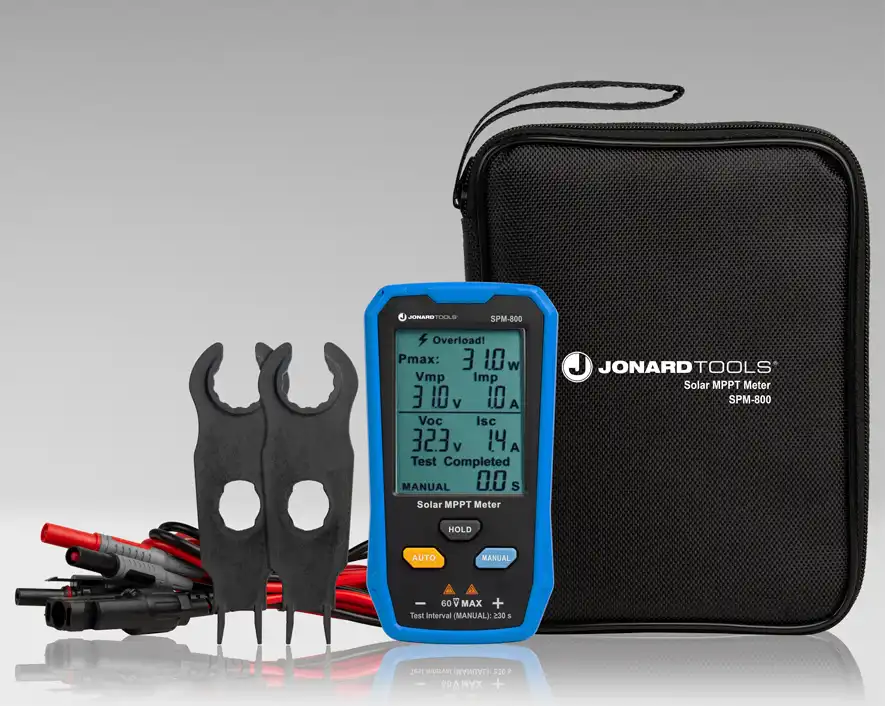

• Solar MPPT Power Meter Includes: Solar Power Meter, MC4 Test Leads, (2) Solar Panel Spanners, Instruction Sheet, Soft Carrying Case.
| Test Leads | MC4 |
| Power Rating (Pmax) | 800 W |
| Voltage Test Range (Vmp) | 12 ~ 60 V |
| Current Test Range (Imp) | 0 ~ 35 A |
| Open Circuit Voltage (Voc) | 12 ~ 60 V |
| Open Circuit Current (Isc) | 0 ~ 35 A |
| Dimensions | 8 in x 6 in x 1 in (20.32 cm x 15.24 cm x 2.54 cm) |
| Weight | 0.96 lb (435.84 g) |
Name
Description
Size
Downloads
File
Data Sheet - Solar MPPT Power Meter - SPM-800.pdf
0.6mb
File
Jonard Tools SPM-800 Instruction Manual.pdf
0.4mb
