Jonard - TDR-100 - Network Cable Tester and TDR
Part number:
Price:
- • The TDR function measures cable length and detects faults within the range of 6.6 to 1,312 feet.
- • Perform wire pair mapping tests to check for open circuits, short circuits, crossed pairs and reversed pairs.

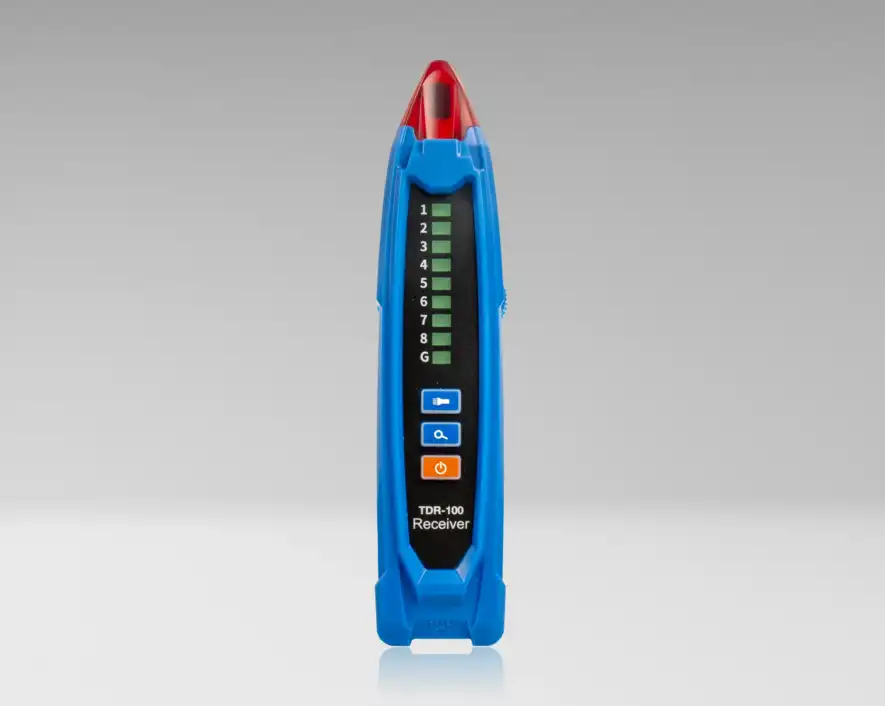

- • Cable tracing involves using a tone generator and a probe to identify cables within structured systems.

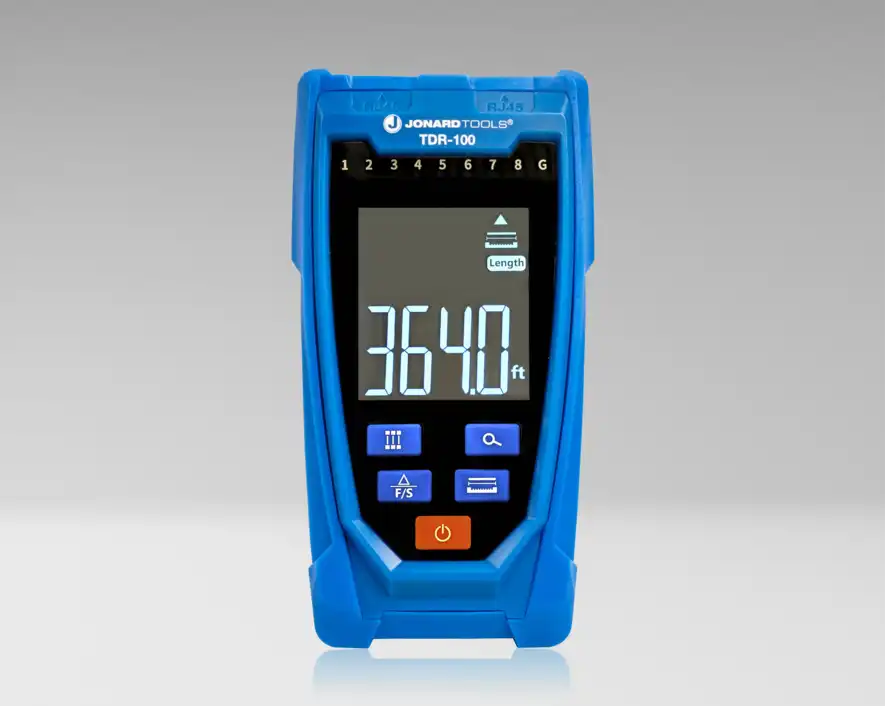

- • It has a 2.5" colour LCD screen and a built-in flashlight for use in dark or enclosed areas.

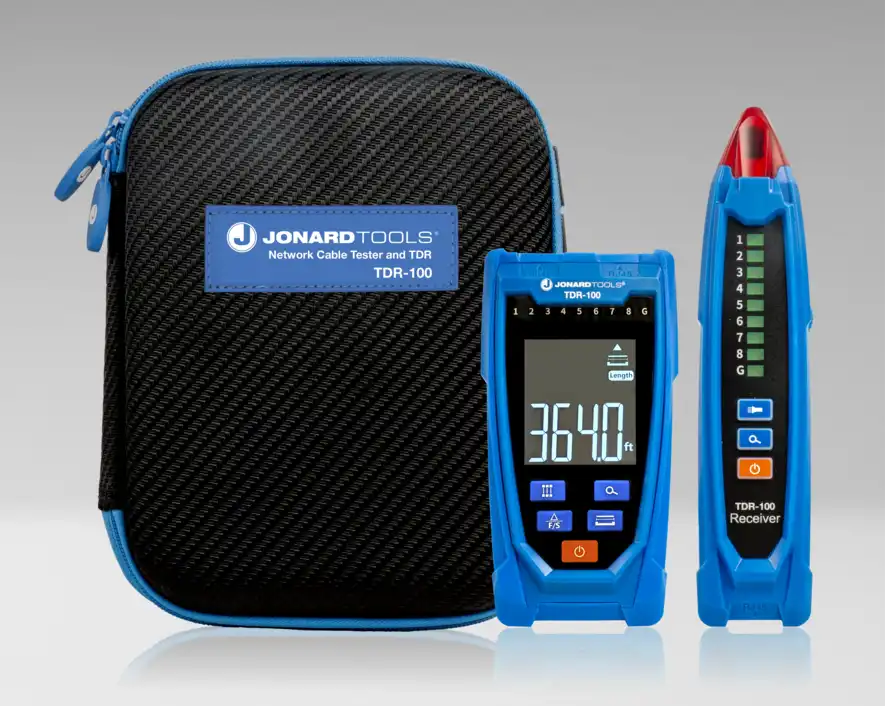

- • Includes: cable tester, TDR, tracing probe, RJ45 adapter cable, carrying case and six AAA batteries.
| Cable Length | 6.6 ft - 1312 ft (2 m - 400 m) |
| Working Temperature | 0~40°C |
| Storage Temperature | -10~50°C |
| Dimensions | 9 in x 7 in x 3 in (22.86 cm x 17.78 cm x 7.62 cm) |
| Weight | 1.05 lb (476.7 g) |
Name
Description
Size
Downloads
File
Data Sheet - Network Cable Tester and TDR - TDR-100_0.pdf
0.6mb
Designed for professionals working with network cabling, this advanced tester combines TDR technology, tone generation and wire mapping to provide a versatile, all-in-one tool. It can accurately measure cable length and identify faults such as opens and shorts. It can also trace cables with precision using the included probe. The bright 2.5-inch colour LCD display provides clear readings, and the built-in flashlight enhances visibility in dim environments, making the tester ideal for installation, maintenance and troubleshooting tasks.
