Jonard - WCT-700 - Underground Wire Tracer and Circuit Finder
Part number:
Price:
• Trace a cable up to 7 ft underground and 1000 ft long
• Manually adjustable sensitivity allows finding a cable down to 6” radius
• Dual backlit LCD screens with both audible and visual signal strength readouts make finding wires and cables a breeze
• Works on Live or dead wires, with a CAT III 600V rating and a live voltage readout
• 7 Signal modes and 3 signal strengths make locating breaks fast and easy
• Durable construction allows 2m of drop protection
| Standards | CAT III 600V |
| Dimensions | Transmitter: 189x96x48mm Receiver: 226x68x38mm |
| Weight | Transmitter: 532g with battery Receiver: 360g with battery |
| Total Weight | 6.11 lb (2772.124 g) |
Name
Description
Size
Downloads
File
Data Sheet - Underground Wire Tracer and Circuit Finder - WCT-700.pdf
1mb
File
Jonard Tools WCT-700 Instruction Manual_compressed.pdf
1mb

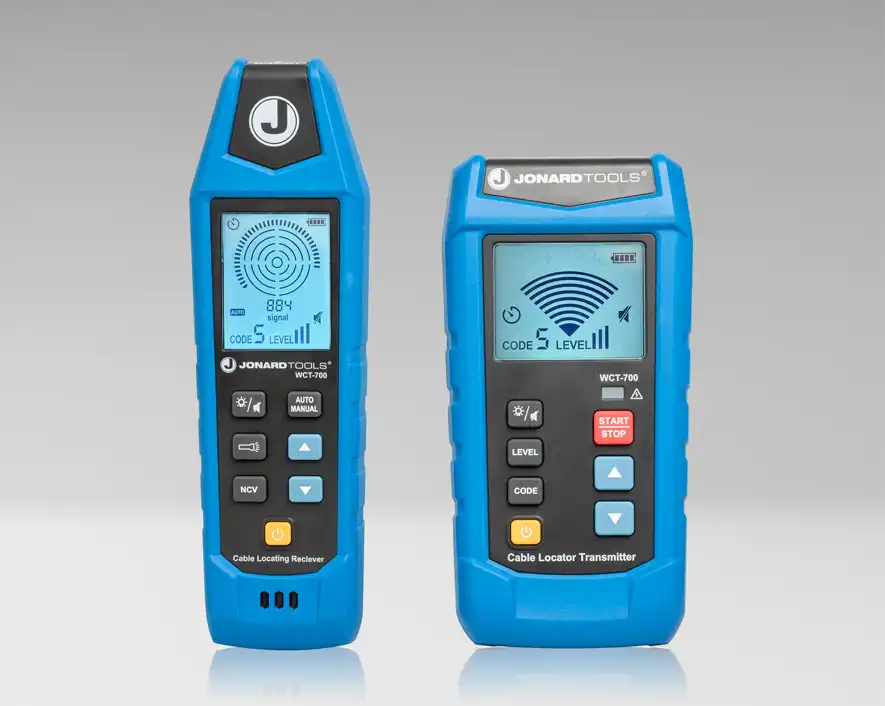

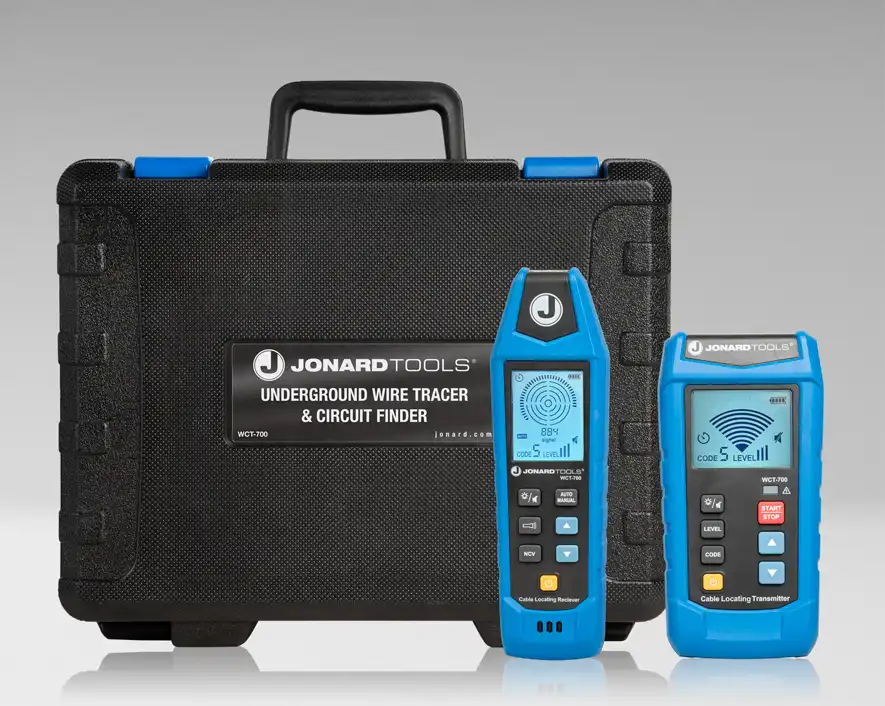

The WCT-700 is an all-in-one solution for any cable tracing task, including tracing cables up to 7 ft underground, locating breaks, and tracing a circuit back to the breaker.
