Endeavor LCD On-line Uninterruptible Power Supply
In today’s 24/7, “always on” business world, downtime is a not an option. Minuteman’s Endeavor LCD Series products are engineered to provide the best features that demanding users require for supporting critical applications, while also offering unmatched reliability in a true on-line UPS. This premium-level product provides a sinewave output and is backed with the industry’s first comprehensive 5-year warranty, including parts, labor and batteries.
The Endeavor LCD Series delivers continuous power conditioning through Minuteman’s double conversion on-line technology, providing emergency backup power with zero transfer time. For extended runtime applications, these products allow the connection of optional external battery packs for long backup times required in certain applications, along with being generator friendly.
The Endeavor LCD Series is designed to protect servers, data storage, switches, and routers used in data centers or network closets, DAS and small cell systems, light industrial applications, telecom and VOIP systems, plus security systems. Offering premium protection that meets critical application needs, users can confidently rely on Minuteman’s Endeavor LCD Series to provide complete power protection when reliability really matters.
Features:
- True on-line, double-conversion not an option.

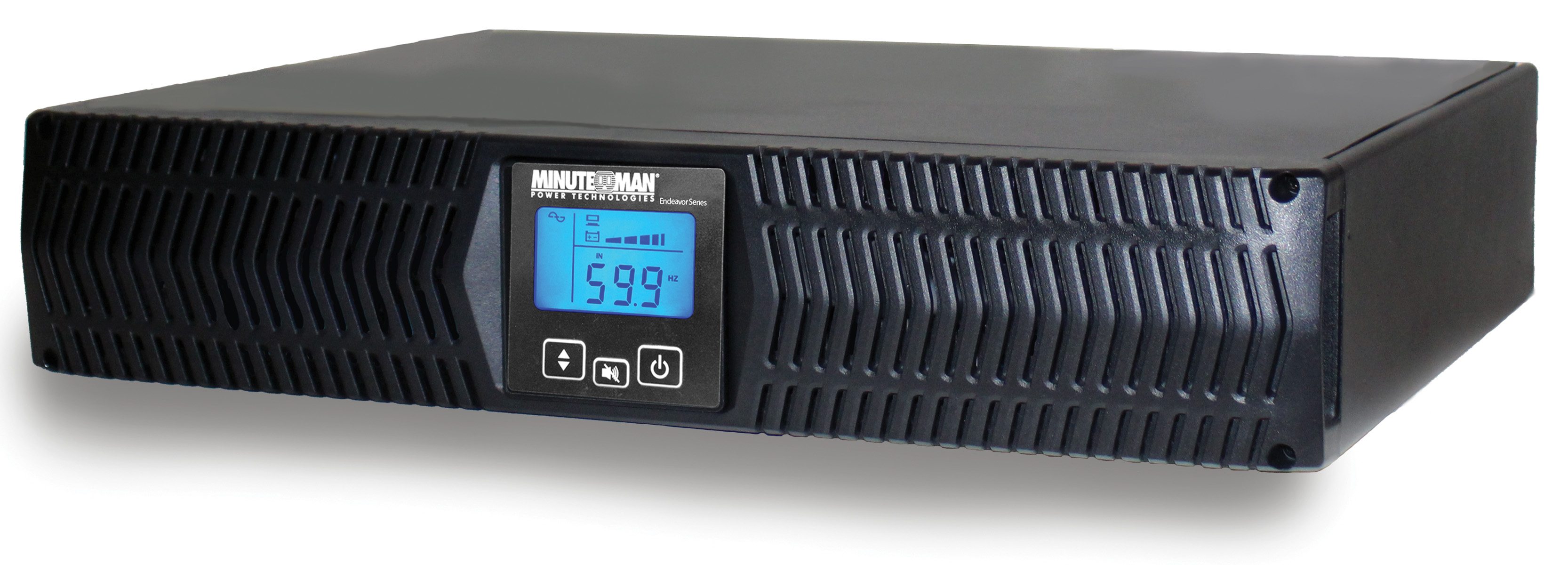

- Compact case design, (only 2U for all models), for high-density rack installations

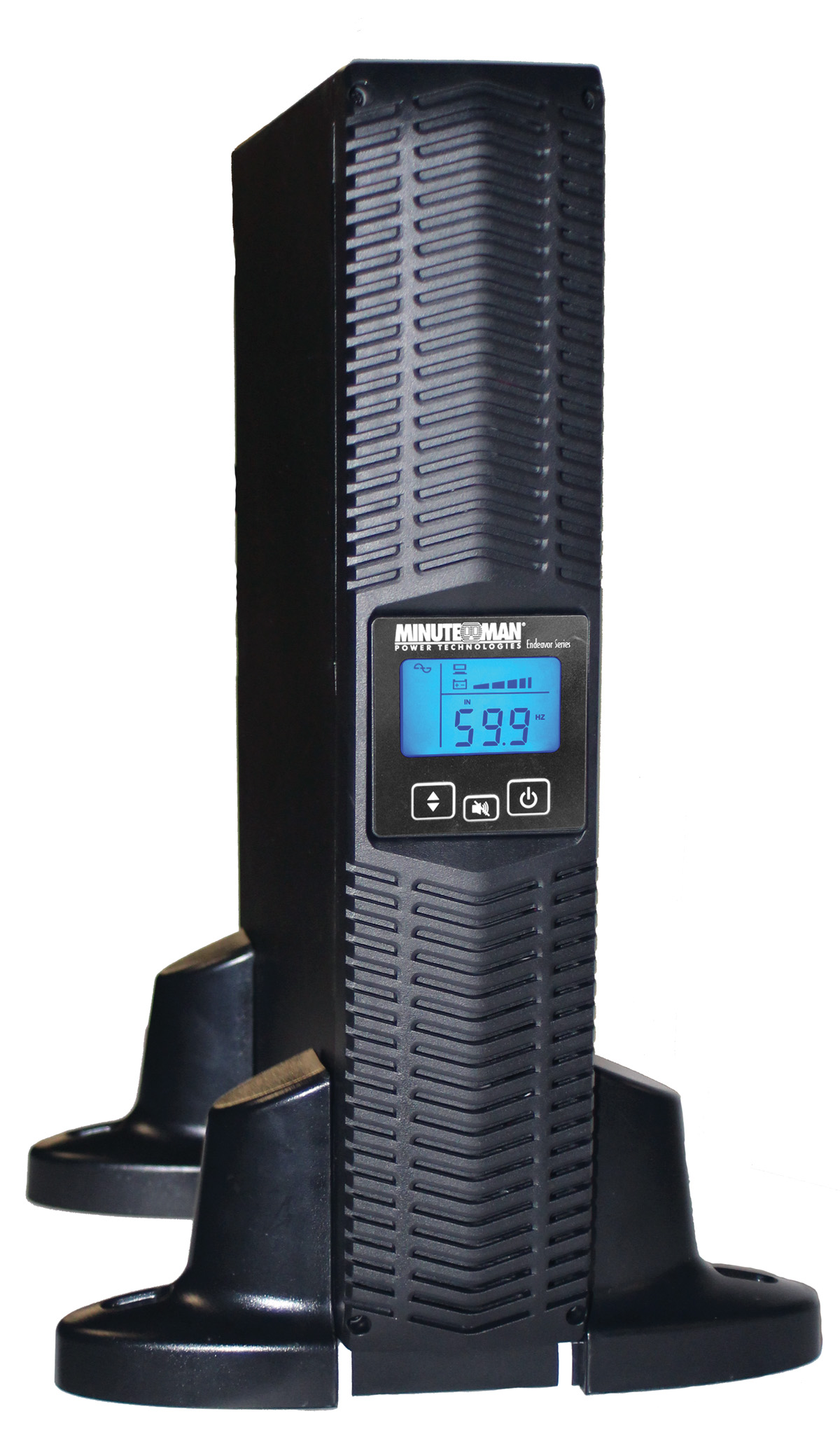

- Flexible installation format: Rack/Tower or Wall (with an optional install kit)
- Rackmount ears come attached to UPS
- Easy-to-read LCD display
- 0.9 output power factor
- Highly-efficient, Economy Mode option

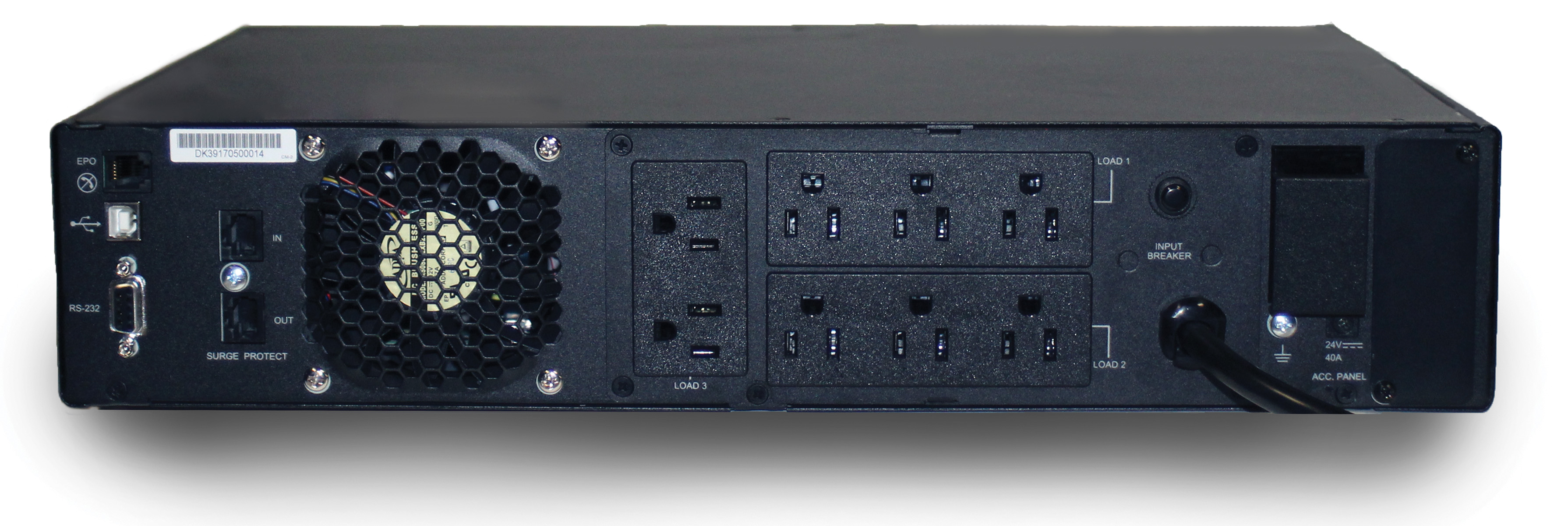

- Output receptacle control with three load banks
- Independent Battery Bypass – allows the UPS to provide voltage regulation and spike/surge protection either with dead batteries or without batteries
- Hot-swappable battery replacement
- Cold start capable
- Temperature-compensated charging
- Automatic internal bypass
- Simultaneous USB and RS232 communications
- Site-wiring fault indicator
- Compatible with Minuteman’s SentryHD software
- SNMP compatible (with optional card)
- Dedicated EPO port
- External battery pack capability for virtually unlimited runtime
- 1Gbit RJ45 network protection
- A standard five-year warranty (including batteries)
- Green UPS design (RoHS and Energy Star compliant)
| UPS Model | ED1500RTXL2U |
| General Features | |
| Output VA Capacity | 1500 |
| Output Watts Capacity | 1350 |
| Receptacle Quantity and Type | (8) 5-15/20R / (1) L5-20R |
| Receptacle Load Shedding | (2) Banks of Independently-controlled Receptacles / (1) Bank of Always-on Receptacles |
| Input Power Cord Plug (Length) | 5-20P (10 feet) |
| Input | |
| Acceptable Input Voltage | 0 – 160VAC |
| Power Factor Correction | ≥99% at nominal input voltage and with full load |
| Efficiency | >90% Full Load – Online Mode (AC-AC) (1kVA) is >96% Full Load – Economy Mode / (1.5kVA – 3KVA) is >97% Full Load – Economy Mode |
| Output (Non-battery Operation) | |
| Waveform | Sine wave |
| Nominal Voltage(s) Supported | 120VAC Default (110VAC) |
| Frequency Range | 50/60Hz ±6Hz |
| Voltage Regulation (AC Mode) | ±2% of nominal voltage |
| Voltage Regulation (ECO Mode) | ±10% of the Inverter output voltage |
| Output (Battery Operation) | |
| Nominal Voltage | 120VAC Default (110VAC adjustable) |
| Voltage Regulation | Nominal ±2% (Until Low Battery Warning) |
| Frequency | 50/60Hz ±0.5Hz (unless synchronized to line) |
| Voltage T.H.D. | <3% at Full-rated Linear Load |
| Batteries | |
| Battery Type | Sealed, Non-Spillable, Maintenance-Free, Valve-Regulated, Lead Acid |
| Battery Replacement Module | BM0036 |
| Hot-swappable Batteries | Yes |
| Runtime (Half Load) | 12 minutes |
| Runtime (Full Load) | 3 minutes |
| Compatible External Battery Pack(s) | BP48RTXL / BP48RTEXL |
| Communications | |
| Front Panel Display | LCD and Interactive Controls |
| Communication Ports | USB, RS232 (DB9) |
| Option Slot | Yes |
| Supported Option Slot Cards | SNMP Card, Programmable Relay Card |
| EPO Port | Yes |
| Environmental | |
| Operating Temp. (Max) | 0° to 40°C (+32° to +104°F) |
| Operating Humidity | 0% - 95% Non-Condensing |
| Operating Elevation | 0 to 3,000m (0 to 10,000 ft.) |
| Physical | |
| Installation Type | Rackmount (Default) / Tower / Wallmount (with optional brackets) |
| UPS Size (L x W x H) | 17” x 19” x 3.5” |
| UPS Weight | 45.9 lbs. / 20.8 Kgs. 47.6 lbs. / 21.6 Kgs. |
| Battery Pack Size (L x W x H) | RTXL: 17” x 19” x 3.5” RTEXL: 26.8” x 17.3” x 5.2” |
| Battery Pack Weight | RTXL: 69.2 lbs. / 31.4 Kgs. RTEXL: 138.9 lbs. / 63 Kgs. |
| Warranty & Certifications | |
| Warranty | 5 Years – Parts and Labor, including Batteries |
| Safety and Approvals | cTUVus (Conforms to UL1778 5th Edition & CSA 22.2 no. 107.3-14 / R: 2014)FCC Class B (1kVA & 1.5kVA) FCC Class A (2kVA & 3kVA), CE Certified, RoHS2 (EU Directive 2011/65/EU) |
| Platinum Protection | $200,000 |
