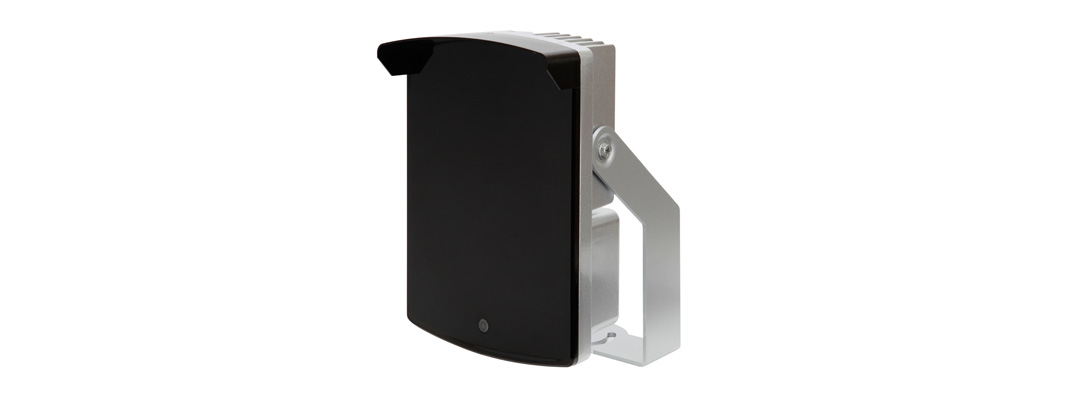

Lilin - IM05608 - IR Infrared Panel Illuminator with Radiant Distance of 150m, 60 Degree Beam, 850nm, AC100-240V, 42W, IP67
Lilin - IM05608 - IR Infrared Panel Illuminator with Radiant Distance of 150m, 60 Degree Beam, 850nm, AC100-240V, 42W, IP67
Part number:
IM05608
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

IR Infrared Panel Illuminator with Radiant Distance



Features:

  • IR Infrared Panel Illuminator with Radiant Distance of 150m, 60 Degree Beam, 850nm,  AC100-240V, 42W, IP67
  • Radiant distance up to 250 / 200 / 150m
  • IP 67 rated aluminum housing
ModelIM05608
Power inputAC100-240V
Max IR distance150m
IP RatingIP67
Power Consumption42W
Infrared LED Wave Length850nm
Infrared LED Angle60°
Infrared LED Quantity24 Units
Infrared LED Power OnSensor Auto Control, Adjustable Control Point
MountingCeiling & Wall
Material/ ConstructionAluminum & Polycarbonate
Operating temperature-40°C - +50°C
DimensionsMain Body: 172mm(W) x 242mm(H) x 102.5mm(D), Bracket: 165mm(W) x 192.5mm(H) x 132mm(D)
Weight2100g
