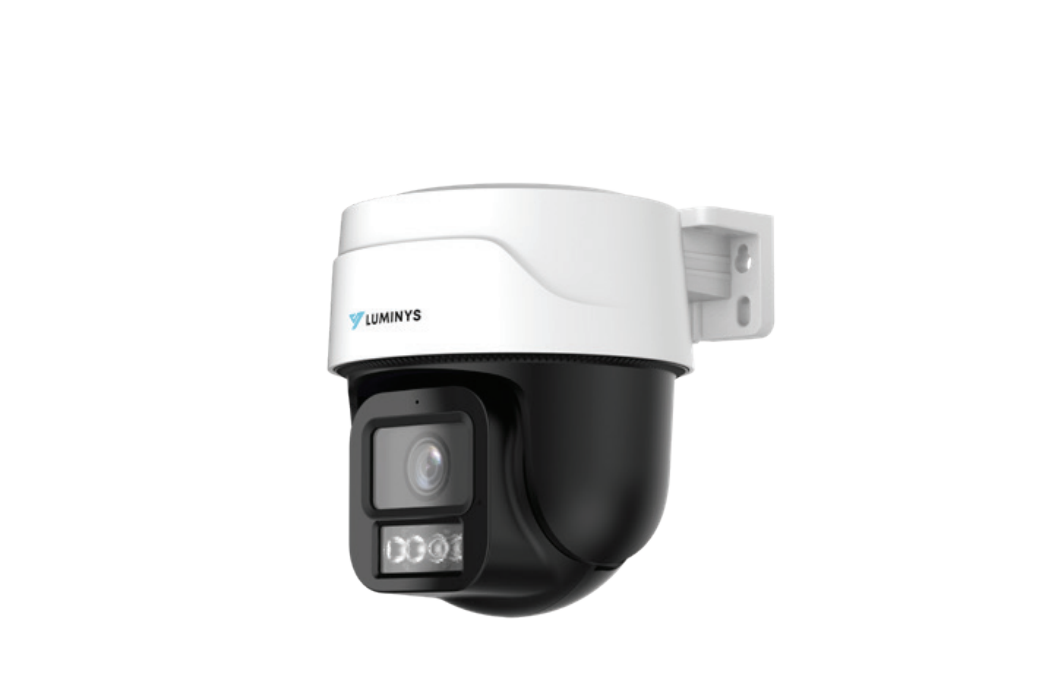

Luminys - P32-4NA16D - P3 4MP LumiNightKing Pan/Tilt
• Image Sensor: 1/1.8-in. Progressive Scan CMOS
• Max Resolution: 4MP (2688 x 1520)
• Focal Length: Fixed 3.6mm
• Intelligent Motion Detection
• Video Content Analytics
• Protection: IP66 (Weatherproof).
• Operating Temp: –22 °F to +131 °F (–30 °C to +55 °C).
• Power: PoE (802.3af) or 12 VDC.
| Series / Model | P2-T Moonbeam / P3-N LumiNightKing |
| Image Sensor | 1/1.8-in. CMOS |
| Max. Resolution | 4MP (2688 x 1520) |
| Focal Length | Fixed (3.6mm) / 16x (Digital Zoom) |
| Min. Illumination | B/W: 0.0006 lux at F1.6 Color: 0.0006 lux at F1.0 0 Lux with Illuminator on |
| Max. IR Distance | 98 ft (30 m) |
| LumiTracking | No |
| LumiSearch / LumiSearch+ | No / No |
| LumiAnalytics | No |
| iMD | Yes |
| VCA / VCA+ | VCA |
| Audio In/Out | Built-in Microphone, Built-in Speaker |
| Alarm In/Out | N/A |
| Memory Slot | Max 512 GB |
| Protection Rating | IP66 |
| Operating Temperature | –22 °F to +131 °F (–30 °C to +55°C) |
| Power | PoE, 12 VDC |
The Luminys P32-4NA16D is a 4MP fixed camera featuring a large 1/1.8-inch CMOS sensor delivering 2688 x 1520 resolution with a 3.6mm fixed lens and 16x digital zoom. The built-in illuminator provides up to 30 meters of night vision. The camera includes Intelligent Motion Detection and Video Content Analytics, as well as a built-in microphone and speaker for two-way audio communication. The P32-4NA16D is rated IP66 for weather resistance, operating from -30°C to +55°C. It includes a memory card slot supporting up to 512GB for edge storage and is powered by PoE or 12 VDC. Note that LumiTracking, LumiSearch/LumiSearch+, LumiAnalytics, and alarm I/O are not available on this model.
