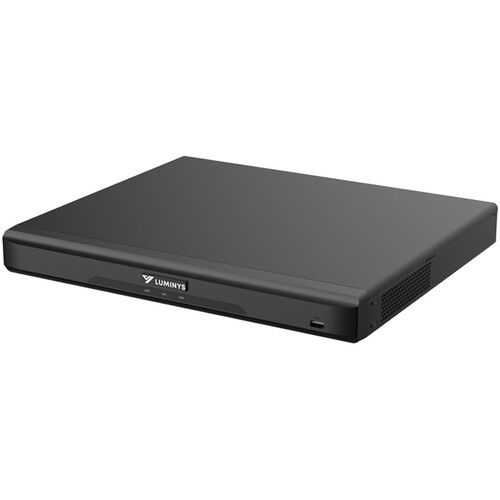

Luminys - R32-16PA8 - R3 Starter Series NVR, 8MP 16 Channel 1U 16-Port PoE, 2SATA, Analytics by Camera, 8TB
Part number:
Price:
- • 16 Channel Capacity: Supports up to 16 cameras, allowing comprehensive monitoring of multiple locations simultaneously, enhancing security coverage.
- • 4K Video Recording: Delivers ultra-high-definition video footage, ensuring clarity and detail essential for accurate monitoring and identifying incidents.
- • Power over Ethernet (PoE): Simplifies installation with a single cable for power and data, reducing clutter and making setup more convenient.
- • 8TB Internal Storage: Provides ample storage for extended video recording without the need for additional external devices, ensuring you never miss critical footage.
- • User-Friendly Interface: Features an intuitive interface for easy navigation and management of camera feeds, making it accessible even for non-technical users.
| Video | |
|---|---|
| Video Input | 16 Channels |
| Recording Resolutions | 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF |
| Output Resolutions | HDMI: 4K (3840 × 2160), 1920 × 1080, 1280 x 1024, 1280 x 720 VGA: 1920 × 1080, 1280 x 1024, 1280 x 720 |
| Live View/Playback Resolutions | 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF |
| Decoding Format | H.265, H.264, H.264H, H.264B, MJPEG |
| Decoding Capability | 2CH: 8MP at 30 fps 8CH: 1080p at 30 fps |
| Synchronous Playback | 1, 4, 8, 9, 16 views |
| Supported Analytics by Camera | Intelligent Motion Detection 12CH Video Content Analytics (VCA) 8CH Face Detection 4CH License Plate Recognition 4CH |
| Smart Search | Search by target classification, pictures by channel, time and event type |
| Interface | |
| SATA | Two (2) Ports |
| HDD | Up to 10TB per HDD |
| Network | One (1) RJ-45 Self-Adaptive Ethernet (10/100/1000 Mbps) |
| PoE | Sixteen (16) RJ-45 Self-Adaptive Ethernet (10/100 Mbps) |
| USB | Front Panel: 1 x USB 2.0 Rear Panel: 1 x USB 2.0 |
| Alarm | Input: Four (4) Channels Output: Two (2) Channels |
| Audio | Input: 1-Channel RCA Input Output: 1-Channel RCA Output |
| Network | |
| Bandwidth | Incoming: 160 Mbps Outgoing: 60 Mbps |
| Protocol | HTTP, HTTPS, TCP/IP, IPv4, IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS |
| Interoperability | ONVIF, RTSP |
| PoE Standard | IEEE 802.3 af/at |
| Client | LumiViewer, LumiViewer Mobile App |
| Electrical | |
| Power Supply | 100-240 V, 47-63 Hz. 3.5 A |
| Power Consumption | < 10 W (HDD Not Included) PoE: 115 W (Max. Output for Single Port: 25.5 W) |
| Construction | |
| Weight | 2.6 kg (5.8 lb) Without HDD |
| Operating Temperature | –10 °C to 55 °C (10 °F to 131 °F) |
| Humidity | 10% to 93% |
| Dimensions (W × L × H) | 372.0 × 325.8 × 43.7 mm (14.7 × 12.8 × 1.7 in.) |
| Certifications and Compliance | |
| Certifications | FCC |
| Compliance | NDAA |
Name
Description
Size
Downloads
File
R32-16PA.pdf
0.5mb
