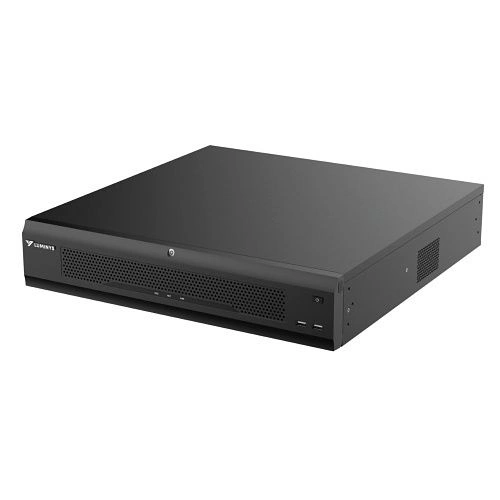

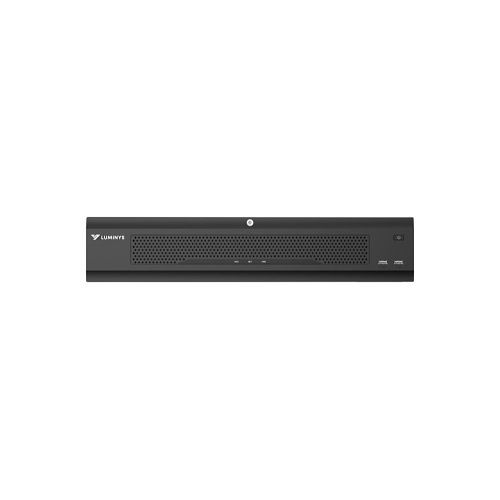

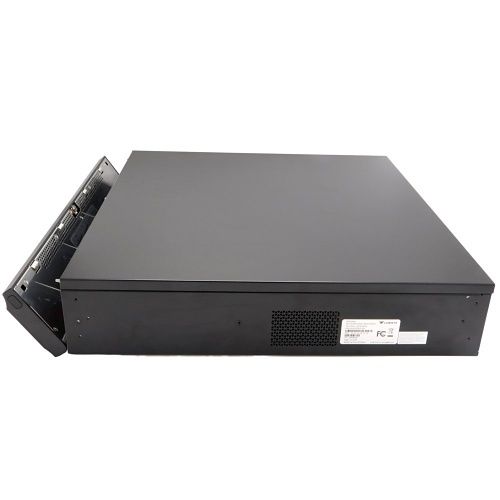

Luminys - R68-32NA10 - R6 Extreme Series NVR, 32MP 32 Channel 2U Dual NIC, 8SATA, Analytics by Recorder Including Metadata, LumiSearch Supported, 10TB
Part number:
Price:
• 32 Channels, Up to 32MP Cameras (Max.Incoming Bandwidth: 1400 Mbps)
• LumiSearch by Camera
• iMD, Face Recognition, Metadata, and VCA by Recorder
• Up to 160 TB Internal Storage, Eight (8) SATA Ports, One (1) eSATA Port
• Supports RAID 0, 1, 5, 6, 10, Hot Swap
• Dual NIC (10/100/1000/2500 Mbps Ethernet)
| Video | |
|---|---|
| Video Input | 32 Channels |
| Recording Resolutions | 32MP, 24MP, 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF |
| Output Resolutions | HDMI (4CH) • HDMI 1 and 2: 3840 × 2160, 1920 × 1080, 1280 × 1024 • HDMI 3: 7680 × 4320, 3840 × 2160, 1920 × 1080, 1280 × 1024 • HDMI 4: 1920 × 1080, 1280 × 1024 VGA (2CH): 1920 × 1080, 1280 x 1024 |
| Simultaneous Mode | • HDMI1/HDMI2/HDMI3/HDMI4 Simultaneous Output • VGA1/VGA2 Simultaneous Output • HDMI1/VGA1 Simultaneous Output • HDMI2/VGA2 Simultaneous Output |
| Spot Output Mode | • HDMI1/HDMI2/HDMI3/HDMI4 Spot Output |
| Live View/Playback Resolutions | 32MP, 24MP, 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF |
| Decoding Format | Smart H.265+, Smart H.264+, H.265, H.264, MJPEG |
| Decoding Capability | AI On • 1CH at 32MP (30 fps) • 2CH at 16MP/12MP (30 fps) • 4CH at 8MP (30 fps) • 8CH at 4MP (30 fps) • 16CH at 1080p (30 fps) AI Off • 2CH at 32MP (30 fps) • 4CH at 16MP (30 fps) • 5CH at 12MP (30 fps) • 8CH at 8MP (30 fps) • 16CH at 4MP (30 fps) • 32CH at 1080p (30 fps) |
| Live View Window Division | 1, 4, 8, 9, 15, 25, 36 Views |
| Auxiliary Port Window Division | 1, 4, 8, 9, 15, 25, 36 Views |
| Synchronous Playback | 16 Channels |
| Supported Analytics | Intelligent Motion Detection Camera: 32CH (Max. 128 Targets per Second) NVR: 32CH Video Content Analytics (VCA) Camera: 32CH (Max. 64 Targets per Second) NVR: 32CH (Simultaneous Output) OR 24CH (Spot Video Output) Face Detection Camera: 32CH NVR: 8CH (Simultaneous Output) OR 5CH (Spot Video Output) Face Recognition Simultaneous Output • Face Captured by Camera: 32CH • Face Captured by NVR: 8CH Spot Video Output • Face Captured by Camera: 16CH • Face Captured by NVR: 5CH Up to 40 Face Picture Libraries (Max. 300,000 Pictures Total) LumiSearch 32CH (Must be Supported by Camera) Video Metadata Camera: 32CH NVR: 8CH License Plate Recognition (LPR Camera Required) 32CH (Max. 64 Targets per Second) One (1) Block List, One (1) Allow List Up to 20,000 Plate Numbers |
| Interface | |
| SATA | Eight (8) Ports |
| eSATA | One (1) Port |
| HDD | Up to 20 TB per HDD |
| RAID | 0, 1, 5, 6, 10 |
| Hot Swap | Supported |
| Network | Two (2) RJ-45 Self-Adaptive Ethernet (10/100/1000/2500 Mbps) |
| USB | Front Panel: Two (2) x USB 2.0 Rear Panel: Two (2) x USB 3.0 |
| Serial Port | One (1) x RS-232, 1 x RS-485 |
| Alarm | Input: 16 Channels Output: Eight (8) Channels |
| Audio | Input: One-Channel RCA Input Output: Two-Channel RCA Output Two-Way Audio Supported |
| Network | |
| Bandwidth | AI On • Incoming/Recording: 700 Mbps • Outgoing: 512 Mbps AI Off • Incoming/Recording: 1400 Mbps • Outgoing: 1024 Mbps |
| Protocol | HTTP, HTTPS, TCP/IP, IPv4, IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS |
| Interoperability | ONVIF, RTSP |
| Client | LumiViewer, LumiViewer Mobile App |
| Electrical | |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Power Consumption | < 18 W (HDD Not Included) |
| Construction | |
| Installation Method | Rack- or Desktop-Mount |
| Housing | 2U |
| Weight | 7.2 kg (15.8 lb) Without HDD |
| Operating Temperature | –10 °C to 55 °C (14 °F to 131 °F) |
| Humidity | 10% to 93% |
| Dimensions (W × D × H) | 442.0 mm × 457.3 mm × 88.0 mm (17.4 in. × 18.0 in. × 3.5 in.) |
| Certifications and Compliance | |
| Certifications | FCC |
| Compliance | NDAA |
