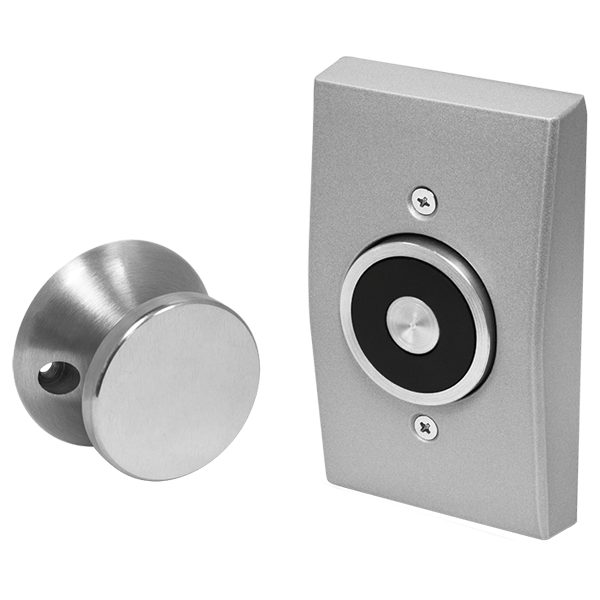

Magnetic Door Holder, Flush-mount, UL listed, adjustable armature plate, fail-safe operation, holding force 33-lbs (15kg), three voltages: 12VAC/VDC, 24VAC/VDC, 120VAC, extension bars available: ½”, ¾”, 1”, 2”... cast aluminum faceplate, built-in voltage spike suppressor.

The UL Listed SECO-LARM Magnetic Door Holders are designed for virtually any remote door release applications, whether residential or commercial. Fail-safe operation, tri-volt coils, and adjustable armature plate allows for easy and flexible installation.

Features:

• For use with door closers to control the release and closing of residential, commercial, and public area doors
• Adjustable armature plate reduces installation time and adjusts to door alignment changes
• Low profile design
• Holding force – 33-lb (15kg)
• 3 voltages: 12/24 VAC/VDC, and 120VAC
• Cast aluminum faceplate
• No residual magnetism for easy release
• Built-in voltage spike suppressor
• Use with SECO-LARM door closers
• Optional extension bars available: 3/4″, 1″, 4″, 7″ (19mm, 25mm, 102mm, 178mm)
• Use with SECO-LARM door closers SD-C121-S, SD-C131-SQ, SD-C101-SGQ, or SD-C101-SBAQ
