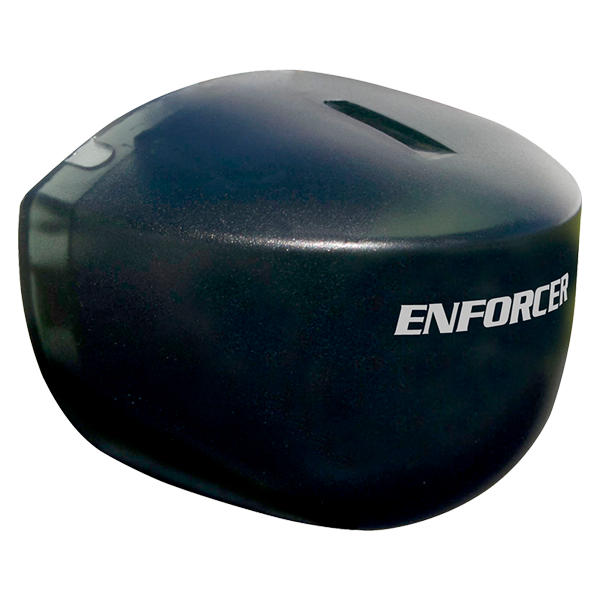

SECO-LARM - SD-R400-BQ - Microwave RTE Sensor, 12~24VDC, 10-ft (3m) adjustable sensing range, adjustable relay output time, red LED indicator on activation, indoor use only.
Part number:
SD-R400-BQ
Price:
The ENFORCER Microwave RTE Sensor is a compact motion sensor with an adjustable output timer that can be connected to an access control keypad and can be used to trigger any device with an egress input.
Features:
- 12~24 VDC Operating voltage
- 24.150GHz Microwave Doppler technology
- 10ft (3m) Sensing range, adjustable
- Adjustable relay output time, 1~33 s
- Small size allows for a wide range of applications
- Universally compatible, install the sensor above doors for no-touch ingress/egress
- More consistent detection in large areas and over a wide range of temperatures
- Indoor use only
| Operating voltage | 12~24 VDC | |
| Current draw | Standby | 23mA@12VDC / 14mA@24VDC |
| Active | 39mA@12VDC / 21mA@24VDC | |
| Sensor freq uency | 24.150GHz | |
| Sensor rang e | 3’~10' (0.9~3m), adjustable | |
| Sensor angle | Vertical | 0°~90° |
| Horizontal | ±30° | |
| Detection angle | Front/back | 20°~30° |
| Left/right | 60°~70° | |
| Min. detection speed | 5cm/s | |
| Output relay | 2A@30VDC (0.5A@125VAC) Dry relay, NO/NC/COM | |
| Relay output time | 1~33 s | |
| Mounting height | 6'~10' (1.8~3 m) | |
| Cable length | 8' (2.5m) | |
| LED Indicator | Red on relay activation | |
| Case material | Black ABS and polycarbonate | |
| Operating temperature | -4°~131° F (-20°~55° C) | |
| Dimensions | 31/8"x23/8"x21/8" (80x60x54 mm) | |
| Weight | 2.5-oz (70g) | |
