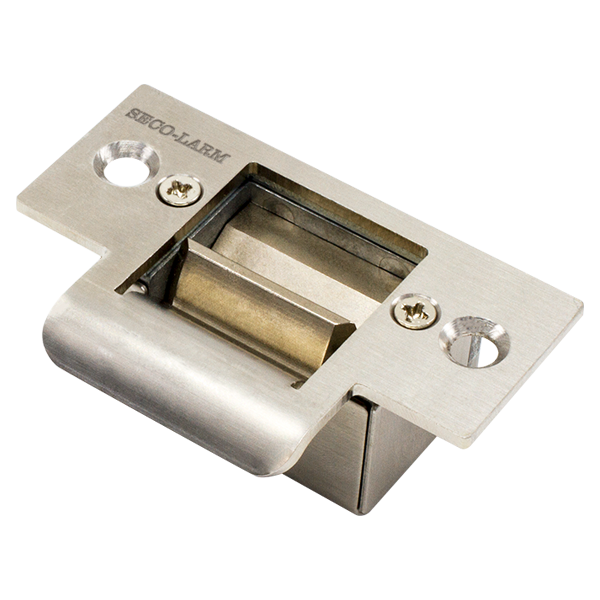

SECO-LARM - SD-991A-D1Q - Mini No-Cut Electric Door Strike. Includes stainless steel no-cut and silver aluminum low-cut strike plates. 12VDC, Fail-secure (door locks when power is lost) operation. Optional bronze(SD-991RA-61Q/B) low-cut faceplate ava
Part number:
SD-991A-D1Q
Price:

Mini No-Cut Electric Door Strike



Features:

  • Converts cylindrical lock sets into an electronic access-controlled locking system
  • Fail-secure operation – Door remains locked if power to the strike is lost
  • 2-wire installation, non-polarized connection
  • Stainless steel keeper for strength and long life
  • Includes Stainless Steel No-Cut and Silver-Colored Aluminum Low-Cut* Strike Plates
  • Can be used with virtually any cylindrical door locking system
  • Can be used with an optional digital keypad, pushbutton switch, and other entry devices.
  • Suitable for office-type applications
  • Reversible non-handed design fits either right-hand or left-hand doors
  • Shallow design for use with most metal doors
  • Powered by a solenoid, not a buzzer coil
  • For indoor use​
  • Optional Bronze-Colored Aluminum Low-Cut* Strike Plate (SD-991RA-61Q/B) available:
Operating Voltage12VDC
Current Draw280mA@12VDC
Latch Throw1/2″ (13mm)
Static Strength1,000-lb (454kg)
Endurance250,000 Cycles (Factory tested)
Operating Temperature14°~120° F (-10°~49° C)
Operating Humidity0~85% (Non-condensing)
DimensionsStainless Steel No-Cut Plate: 2-3/4″x1-1/8″x15/16″ (70x28x24 mm)
Name
Description
Size
Downloads
File
Datasheet
0.3mb
