- • Contactless smart card and Bluetooth Low Energy
- • 13.56 MHz for contactless smart card and 2.4 GHz
- • A single reader for metal door and window frames, single-gang wall boxes, and flat surfaces
- • Indoor/Outdoor operation
- • Waterproof IP67
| Technology | Contactless smart-card and Bluetooth Low Energy |
| Supported card types | 13.56 MHz (contactless smart-card) and 2.4 GHz (BLE) |
| Mounting | Either narrow flat surfaces or single gang wall boxes |
| Indoor & Outdoor Installation | Electronics sealed in weather and tamper-resistant epoxy potting |
| Keypad | No |
| Audio indicator | Beep |
| LED indicator | Blue, red, green, amber, and of |
| Wiegand Interface | Wiegand-Out port |
| Power Supply | 8 - 14V DC |
| IP-rating | 67 |
| Operating Temperature | -40° F to 149° F (-40° C to 65° C) |
| Dimensions Mullion | 1.7" x 4.7" x 1.2" |
| Dimensions Switch Plate | 3" x 5.1" x 1.2" |
Name
Description
Size
Downloads
File
KR500BT_Datasheet.pdf
1.3mb

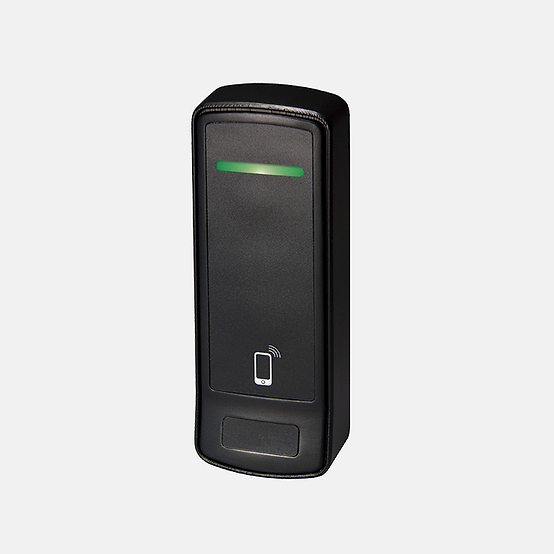

The KR500BT is a 'mobile-ready', IP67-rated outdoor smart card reader which also supports Bluetooth, allowing smartphone users who prefer not to carry an actual smart card to use their phone as an access control 'mobile credential'. The KR500BT allows users to use their smartphone as an access control 'mobile credential'. Simply download the 'Conekt app' to your smartphone and use it to open the door. The KR500BT conveniently ships with a single-gang and mullion mounting adapter, allowing installers to mount it on almost any surface. It is ideal for securing doors, parking gates, turnstiles, and most other security devices.
