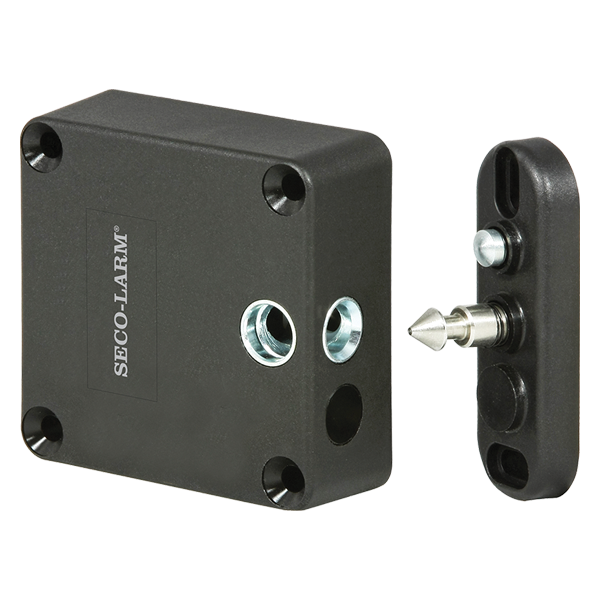

SECO-LARM - CL-210M-U3BQ - Motorized Cabinet Lock, 12~28VAC/VDC Operation, lock Status, door Status
Part number:
CL-210M-U3BQ
Price:
The SECO-LARM Motorized Cabinet Lock provides security for lockers, cabinets, cases, and drawers. The built-in lock and door status sensors and fail-secure operation offer additional security. The Motorized Cabinet Lock’s small size and compatibility with existing keypads or readers allow for various installations.
Features:
- Electronically secure lockers, cabinets, cases, and drawers
- Lock status sensor allows for monitoring whether the lock is engaged
- Door status sensor allows for monitoring whether the door is closed completely
- Compatible with existing keypads or readers
- Spring feature gently pushes door open
- Fail-secure operation
- Various mounting positions
- 12~28 VAC/VDC Operating voltage
- Low current draw:
- 69mA@12/24 VDC (standby)
- 165mA@12/24 VDC (active)
- 220-lb (100kg) Holding force
- Two locking orientations
| Operating Humidity | 0~95% Non-condensing |
| Dimensions | Lock body: 2-3/8″x2-3/8″x7/8″ (60x60x22 mm), Rosette: 13/16″x2-3/8″x1-1/16″ (20x60x27 mm) |
| Holding Force | 220-lb (100kg) |
| Operating Voltage | 12~28 VAC/VDC |
| Current Draw | Standby: 69mA@12/24 VDC, Active: 165mA@12/24 VDC |
| Housing material | Polyamide |
| Operating Temperature | 14°~113° F (-10°~45° C) |
| Weight | 3-oz (93g) |
| Relock Delay | 2~5 Seconds |
