SECO-LARM - SD-9463-KSVQ - Wave To Open RTE with override button, Double Gang. ETL Listed. Conforms to UL Std. 294
Part number:
SD-9463-KSVQ
Price:

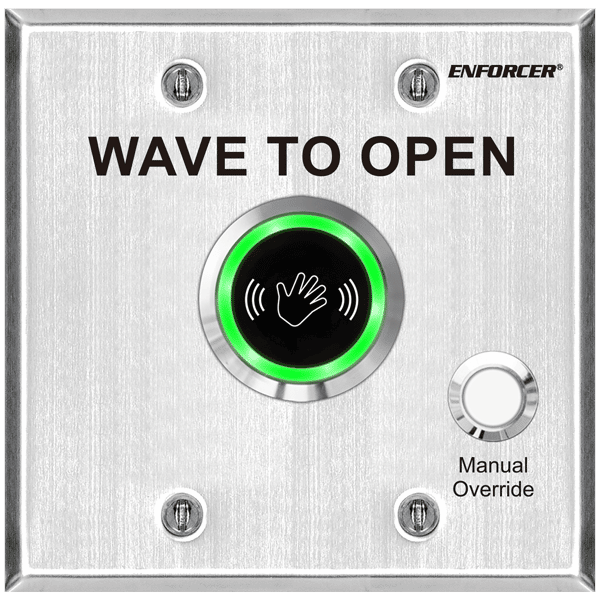

The ENFORCER Outdoor Double-Gang Wave-to-Open Sensor with Manual Override is a full-featured exit plate using IR technology to allow egress from a protected area or activate a device with a simple wave of a hand. Since no touch is required, it is suitable for use in hospitals, clinics, labs, cleanrooms, schools, factories, or offices. The manual override button allows operation during a power failure.
Features:
- Clean and simple no-touch operation reduces the risk of cross-contamination
- Adjustable sensor range up to 7″ (18cm)
- Weatherproof (IP65) for outdoor use†
- 1.2A Relay, adjustable duration 0.8~30 seconds or toggle
- Manual override button functions during a power failure
- LED-illuminated sensor area for easy identification
- Selectable LED colors (turns from red to green or green to red) on sensor activation
- Stainless steel plate
| Type | “Wave-to-Open” Request-to-Exit Plates with Adjustable Delay Timer, for Outdoor Use |
| Current Draw | Standby- 16mA@12VDC / 25mA@24VDC, Triggered- 25mA@12VDC / 32mA@24VDC |
| Sensing Range | 2″~7″ (5~18cm) |
| Operating Voltage | 12~24 VDC |
| Reaction time | 10mS |
| LEDs – Red | Standby (Colors are reversible.) |
| LEDs – Green | Triggered (Colors are reversible.) |
| Relay Type | Form C dry contact 1A@30VDC |
| Output Time | 0.5~30 s, toggle |
| Switching Capacity | 1.2A@24VDC |
| Operating Temperature | -4°~131° F (-20°~55° C) |
| Dimensions | 5-1/2″ x 4-1/2″ x 1-1/2″ (140 x 114 x 39 mm) |
| Weight | 5.6-oz (160g) |
| IP Rating | Weatherproof IP65 |
