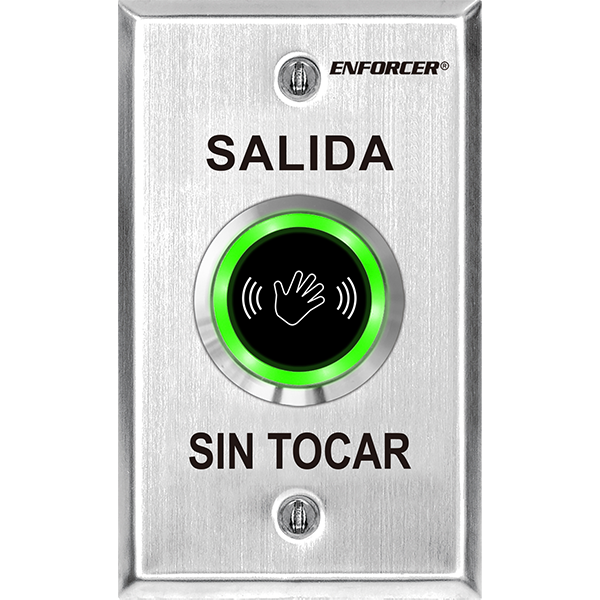

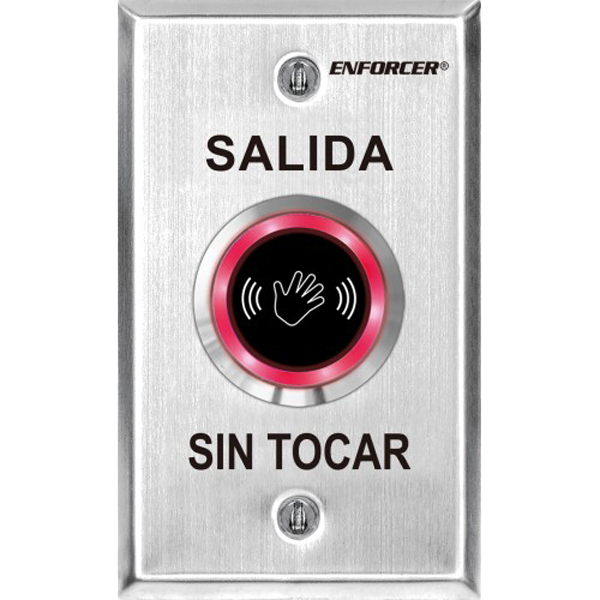

SECO-LARM - SD-9263-KS1Q - Outdoor single-gang No-Touch Sensor with Spanish message. Adjustable sensing range and relay trigger duration. "SALIDA SIN TOCAR" printed on plate.
Part number:
SD-9263-KS1Q
Price:
Outdoor single-gang No-Touch Sensor with Spanish message. Adjustable sensing range and relay trigger duration. "SALIDA SIN TOCAR" printed on plate.
The ENFORCER Outdoor Wave-to-Open Sensor is a full-featured exit plate which uses IR technology to allow egress from a protected area or activate a device with the simple wave of a hand. Since no touch is required, this sensor is suitable for use in hospitals, clinics, labs, cleanrooms (to reduce the risk of contamination), schools, factories, or offices.
Features:
- Adjustable sensor range up to 7″ (18cm)
- Weatherproof (IP65) for outdoor use*
- Stainless steel plate
- 1.2A relay, adjustable trigger duration 0.8~30 seconds or toggle
- LED illuminated sensor area for easy identification
- Selectable LED colors (turns from red to green or green to red) to show sensor activated
| Operating temperature | 12~24 VDC |
| Current draw (max. ±10%) | Standby red (12/24 VDC): 18mA / 23mA
Triggered green (12/24 VDC): 23mA / 29mA Standby green (12/24 VDC): 14mA / 18mA Triggered red (12/24 VDC): 28mA / 35mA |
| Relay type | SPDT dry contact, 1.2A@24VDC |
| Response time | 10ms |
| LED | Standby: Red*
Triggered: Green* |
| Ouput duration | 0.8~30 s, toggle |
| Range | 2″~7″ (5~18 cm) |
| Destructive attack level | Level I |
| Line security | Level I |
| Endurance level | Level IV |
| Standby power | Level I |
| IP Rating | Weatherproof, IP65 |
| Operating Temperature | -4°~131° F (-20°~55° C) |
| Dimensions | 2-3/4″ x 4-1/2″ (70 x 115 mm) |
| Weight | 3.8-oz (108g) |
