Product Overview

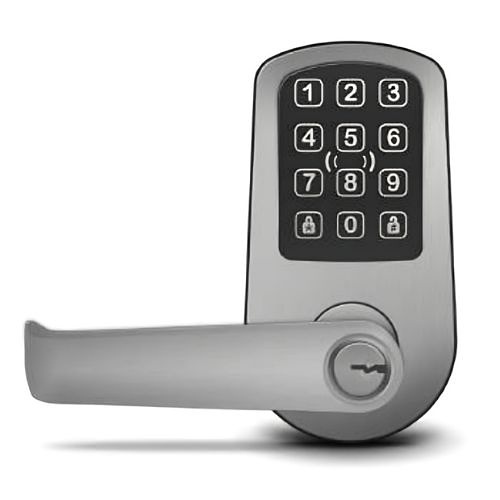

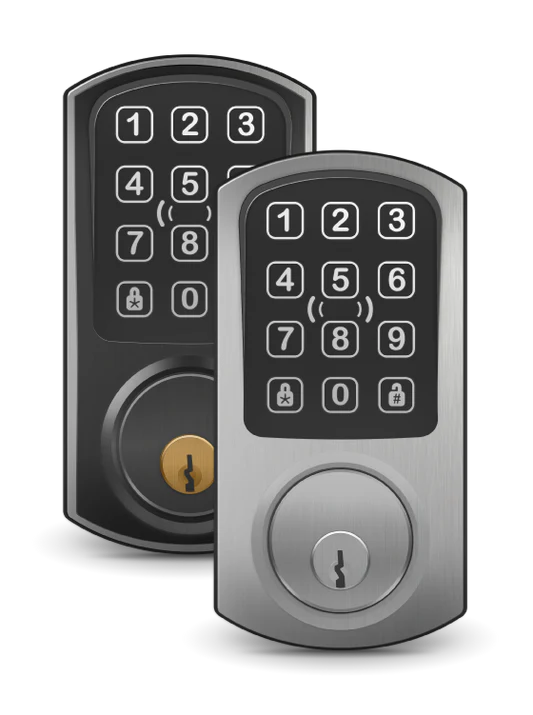

The PDK Red Lockset is a wireless access control solution for PDK.io 2.0 systems, available in cylindrical or deadbolt styles. It uses Bluetooth Low Energy 2.4 GHz for secure, wire-free communication with HubNet, protected by AES 128-bit encryption. This lockset is designed for easy integration and high-security door management.
Key Configuration
- • Communication: Bluetooth Low Energy (2.4 GHz) to HubNet
- • Encryption: end-to-end AES 128-bit
- • Protection rating: IP65 (exterior side)
- • Operating temperature: -20°C to +60°C (-4°F to 140°F); humidity: 0–95% non-condensing
- • Compliance: FCC Part 15, ADA Compliance, UL 10C, ANSI/BHMA Grade 2
Key Features
This lockset is ANSI/BHMA Grade 2 certified for commercial-grade durability and conforms to UL 10C standards for fire-rated door installations. It provides a high level of physical security and reliability for demanding professional environments. It features end-to-end AES 128-bit encryption and an IP65-rated exterior for weather resistance. Additionally, the design is ADA-compliant to meet all accessibility requirements.
Installation Notes
Designed for reliable performance in diverse environments, this lockset operates within a temperature range of -4°F to 140°F and handles up to 95% non-condensing humidity. It integrates seamlessly with the PDK Red Hub for centralized wireless communication and streamlined system management.
| Communication | |
| Bluetooth Low Energy | 2.4 GHz (Connection to HubNet) |
| Encryption | End-to-end AES 128bit |
| Environmental | |
| Temperature | -20° ~ +60° C / -4° ~ +140° F |
| Humidity | 0 - 95% relative humidity non-condensing |
| Protection Rating | IP65 (exterior side) |
| Compliance | |
| Compliance | FCC Part 15 |
| ADA Compliance | ✓ |
| Fire Rating | Conforms to UL 10C |
| ANSI/BHMA | Grade 2 |
