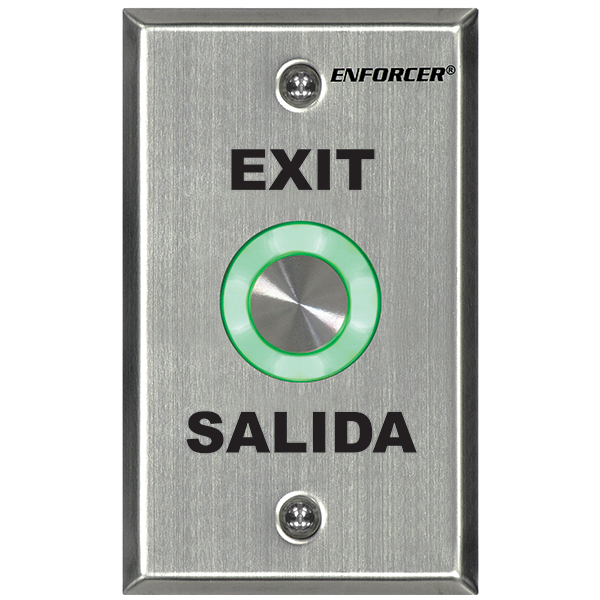

SECO-LARM - SD-6276-SS1Q - Piezoelectric Illuminated RTE Wall Plate with Timer, Single-gang
Part number:
SD-6276-SS1Q
Price:

Piezoelectric pushbutton. Vandal-resistant, single-gang plate. "EXIT" and "SALIDA" printed on plate. Programmable illumination Surrounding the Button: Red or Green.



Features:

  • Programmable Red/Green Round Button, with “EXIT” & “SALIDA”
  • Piezoelectric request-to-exit plates for indoor or outdoor use, weatherproof (IP65)
  • No moving parts for heavy duty use
  • LED ring around button changes from green to red or red to green when the button is pressed
  • Timed or toggle output
  • Relay rated 2.5A@24VDC with two individually programmable outputs (NO/NC)
TypeRTE Plates with piezoelectric pushbuttons
Operating Voltage12~24 VDC
Current Draw100mA@12VDC
Contact Rating2.5A@24VDC
Ring LED Default- StandbyRed
Ring LED Default- ActiveGreen
Output Time1~30 s, Toggle
IP RatingWeatherproof IP65
Operating Temperature32º~158º F (0º~70º C)
MaterialStainless steel
Weight3.5-oz (99g)
Name
Description
Size
Downloads
File
Datasheet
0.6mb
File
Manual
0.9mb
