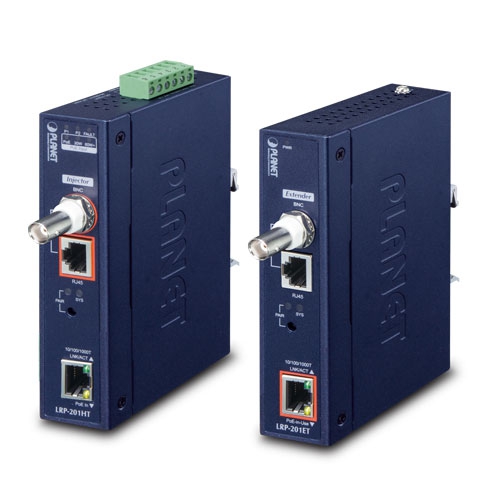

Name: Planet - LRP-201-KIT - Industrial 1-Port 10/100/1000T Ultra PoE + 1-Port Coax/UTP Long Reach PoE Kit (LRP-201ET + LRP-201HT)
Brand: Planet
SKU: LRP-201-KIT

Home — Brands — Planet — POE — Long Reach POE —

Planet - LRP-201-KIT - Industrial 1-Port 10/100/1000T Ultra PoE + 1-Port Coax/UTP Long Reach PoE Kit (LRP-201ET + LRP-201HT)

Part number:

LRP-201-KIT

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads

The LRP-201-KIT is an Industrial Single-port Ultra PoE over Coaxial/UTP Extender Kit featuring long range data and power transmission over any existing coaxial, UTP cable or telephone wire for distance up to 600 meters and converts power to IEEE 802.3at/bt PoE over another 100-meter Ethernet cable connected to the remote PoE PD.

Features:

Copper: 10/100/1000BASE-T RJ45, Auto-negotiation/Auto-MDI/MDI-X
PoE Standard: IEEE 802.3at/bt PoE PD/PSE
PoE Input: Mid-span and End-span PSE Input range: 48 ~ 56V DC
PoE Output: 53V DC, 1.2A max.
PoE Budget: Up to 60W
PoE Mode: End-span: 1/2 (-), 3/6(+), Mid-span: 4/5(+), 7/8(-)
Connectivity: 1 x RJ45 female connector LRP over UTP, 1 x BNC female connector LRP over coaxial
TAA Compliant

LRP-201-KIT

Model

LRP-201HT

LRP-201ET

Hardware Specifications

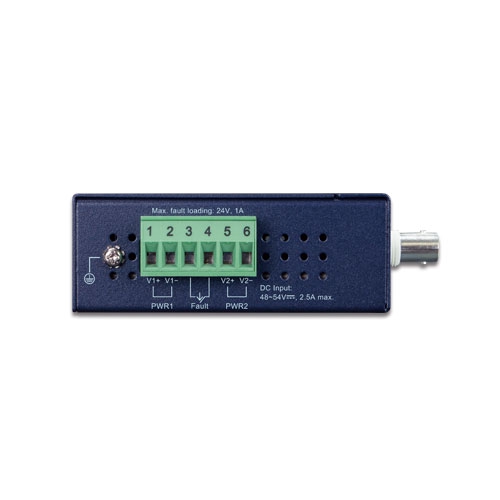

Input Power Terminal Block

Redundant power: 48~54V DC
Fault alarm: 1A@24V DC

–

Ethernet Interface

Copper
10/100/1000BASE-T RJ45
Auto-negotiation/ Auto-MDI/MDI-X
Power over Ethernet Standard
IEEE 802.3at/bt PoE PD
PoE Input
Supports both Mid-span and End-span PSE
Input Range: 48~54V DC
PoE Output
–
PoE Budget
–
PoE Mode
–
Data Rate
100/100/1000Mbps
Cabling
Cat. 5e or above
Maximum Distance
100 meters
Maximum Frame sizes
1522bytes

Copper
10/100/1000BASE-T RJ45
Auto-negotiation/ Auto-MDI/MDI-X
Power over Ethernet Standard
IEEE 802.3at/bt PoE PSE
PoE Input
–
PoE Output
53V DC, 1.2A max.
PoE Budget
Up to 60 watts
PoE Mode
Pair 1 End-span: 1/2 (-), 3/6 (+)
Pair 2 Mid-span: 4/5 (+), 7/8 (-)
Data Rate
100/100/1000Mbps
Cabling
Cat. 5e or above
Maximum Distance
100 meters
Maximum Frame sizes
1522bytes

Long Reach PoE Interface*

Connectivity
1 x RJ45 female connector
Long Reach PoE over UTP PSE
1 x BNC female connector
Long Reach PoE over coaxial PSE
Power Input
–
Power Output
44~54V DC
Power Pin Assignment
Coaxial
– BNC center pole: DC+
– BNC shield: DC-
UTP
– RJ45 Pins 1, 3, 5, 7: VCC+
– RJ45 Pins 2, 4, 6, 8: VCC-
Cabling
Coaxial
– Coaxial cable: 75 ohm
– RG-6/U cable, less than 12Ω/1000 ft.
– RG-59/U cable, less than 30Ω/1000 ft.
UTP
– Cat. 5e/6 UTP cable
– EIA/TIA-568 100-ohm STP
Maximum Distance
Coaxial
– Max. 200m with PoE++ output (656ft.)
– Max. 400m with PoE+ output (1312ft.)
– Max. 600m with PoE output (1,968ft.)
UTP
– Max. 100m with PoE++ output (ft.)
– Max. 200m with PoE+ output (656ft.)
– Max. 300m with PoE output (984ft.)
– Max. 400m with PoE output (1,312ft.)
Long Reach Ethernet Standard
ITU-T G.hn
Modulation Type
OFDM
Security
128-bit AES encryption
Frequency Band
1 ~ 100 MHz
Multiple nodes
Supports up to 4 LRP extenders within 0.6km
LRP Compatibility

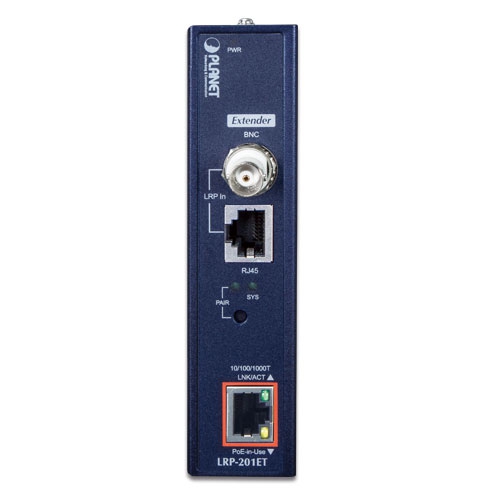

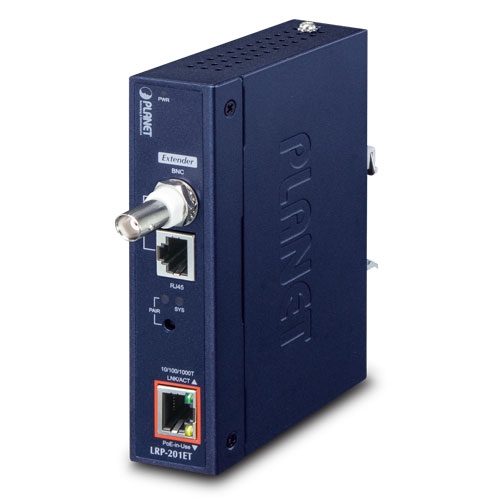

LRP-201ET – 1-Port LRP Extender

Connectivity
1 x RJ45 female connector
Long Reach PoE over UTP PD
1 x BNC female connector
Long Reach PoE over coaxial PD
Power Input
40~54V DC
Power Output
–
Power Pin Assignment
Coaxial
– BNC center pole: DC+
– BNC shield: DC-
UTP
– RJ45 Pins 1, 3, 5, 7: VCC+
– RJ45 Pins 2, 4, 6, 8: VCC-
Cabling
Coaxial
– Coaxial cable: 75 ohm
– RG-6/U cable, less than 12Ω/1000 ft.
– RG-59/U cable, less than 30Ω/1000 ft.
UTP
– Cat. 5e/6 UTP cable
– EIA/TIA-568 100-ohm STP
Maximum Distance
Coaxial
– Max. 200m with PoE++ output (656ft.)
– Max. 400m with PoE+ output (1312ft.)
– Max. 600m with PoE output (1,968ft.)
UTP
– Max. 100m with PoE++ output (ft.)
– Max. 200m with PoE+ output (656ft.)
– Max. 300m with PoE output (984ft.)
– Max. 400m with PoE output (1,312ft.)
Long Reach Ethernet Standard
ITU-T G.hn
Modulation Type
OFDM
Security
128-bit AES encryption
Frequency Band
1 ~ 100 MHz
Multiple nodes
Supports up to 4 LRP extenders within 0.6km
LRP Compatibility
LRP-201HT- 1-Port LRP Injector

LRP Coaxial Performance

Distance	Data Rate (Upload / Download)	54V DC Input	60W PoE++ Input
200m	480/530 Mbps	54W	40W
400m	285/345 Mbps	29W	25W
600m	100/121 Mbps	16W	14W

LRP UTP Performance

Distance	Data Rate (Upload / Download)	54V DC Input	60W PoE++ Input
100m	398/476 Mbps	53W	34W
200m	279/295 Mbps	51W	32W
300m	106/154 Mbps	37W	29W
400m	56/85 Mbps	26W	19W

LED Indicators

– P1
– P2
– FAULT
– PoE Input
– SYS
– PAIR
– PoE IN
– LNK/ACT

– PWR
– SYS
– PAIR
– PoE-in-Use
– LNK/ACT

ESD Protection

6KV DC

PAIR Button

Press for 3 sec to join LRP-201ET

Press for 3 sec to join LRP-201HT

Reset Button

Press over 10 sec to return to factory default

Enclosure

IP30 slim type metal case

Installation

DIN-rail kit or wall-mount ear

Dimensions (W x D x H)

135 x 87.8 x 32mm

Weight

520g

510g

Power Requirements

– RJ45 PoE Input: 802.3af/at/bt 48~54V DC, 2.5A max.
– DC Input: 48~54V DC, 2.5A max.

– BNC Power over Coaxial Input: 40~54V DC, 1.8A max.
– RJ45 Power over Ethernet Input: 40~54V DC, 1.8A max.

Standards Conformance

Standards Compliance

IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3bt 4-pair Power over Ethernet Type 3
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3af Power over Ethernet

Regulatory Compliance

FCC Part 15 Class A, CE

Environment

Temperature

Operating: -20~70 degrees C
Storage: -30~75 degrees C

Humidity

Operating: 5~95% (non-condensing)
Storage: 5~95% (non-condensing)

Standard Accessories

Package Contents

– LRP-201-KIT
– User’s Manual
– Wall-mount Kit
– RJ45 Dust Cap x 2
– Warning Sticker
